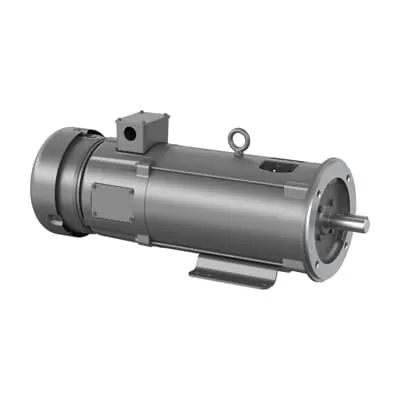

ABB 7BCDPT3603 DC Permanent Magnet Standard - CE/CSA/UR/WEEE
Part Number: 7BCDPT3603
Quick Summary
DC Permanent Magnet Standard motors like ABB 7BCDPT3603 provide compact, efficient drive power for conveyors and pumps. Retrofit projects often stall due to interface mismatches, longer lead times, and unexpected downtime. This motor is built to CE, CSA, and UR safety standards and complies with WEEE, supporting global deployments. With TEFC enclosure and a robust frame size of 184ATC, it withstands tough environments while keeping maintenance simple. Rated at 3 HP and 1750 rpm, it delivers reliable performance in continuous duty applications, helping you reduce energy consumption and total cost of ownership. In short, it combines ease of procurement with proven industrial reliability.
Product Information
Extended Description
7BCDPT3603 ABB: DC Permanent Magnet Standard 3 Hp (CDPT3603)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1750RPM,DC,184ATC,3649P,TEFC,F1
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
14 A
Armature Inertia
107.11 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6206, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDPT3603
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYP332
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Global Commercial Alias
CDPT3603
Gross Volume
5770.548 inÂł
Gross Weight
120 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,1750RPM,DC,184ATC,3649P,TEFC,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
DC Permanent Magnet Standard, 3 HP, Frame Size 184Atc, 0 Phase, TEFC Enclosure, (CDPT3603)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184ATC
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
3 Hp
Product Name
DC Permanent Magnet Standard
Product Net Depth / Length
31.813 in
Product Net Height
13.625 in
Product Net Weight
120 lb
Product Net Width
13.313 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B36P332Z507
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
3 HP, Frame Size 184Atc, 0 PH, TEFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature DC permanent magnet design provides high torque density and efficient operation, delivering measurable energy savings and cooler running temperatures in continuous-duty applications. Impact Reduced energy consumption lowers operating costs while maintaining performance under load. Application Suitable for conveyors, pumps, and general automation where space is constrained and reliability is critical.Feature TEFC enclosure protects against dust and moisture, extending service intervals and reducing maintenance downtime. Impact Improves uptime in harsh environments and simplifies enclosure considerations during retrofits. Application Ideal for manufacturing floors, processing lines, and outdoor installations with enclosure requirements.Feature Frame size 184ATC and foot-mounted base type enable flexible installation and compatibility with existing mounting footprints. Impact Streamlines retrofit projects, minimizes rework, and accelerates commissioning. Application Fits standard bearer rails and machine frames in a variety of automation equipment.Feature Armature voltage of 180 V and current of 14 A support straightforward electrical integration with common DC drive systems. Impact Simplifies wiring, reduces cabinet space, and enables faster field setup. Application Suitable for direct DC bus connections and integrated control architectures in new or retrofit lines.Feature Certifications CE, CSA, UR, WEEE with stock across multiple regional warehouses. Impact Ensures regulatory compliance and shorter lead times for global deployments. Application Enables procurement for diverse markets and multinational automation projects.Feature Weight and dimensions (120 lb, 31.813 in length, 13.625 in height, 13.313 in width) provide a predictable footprint for design-in and installation planning. Impact Reduces layout surprises and supports accurate enclosure and cabinet design. Application Useful for equipment upgrades and OEM integrations where space is at a premium.
