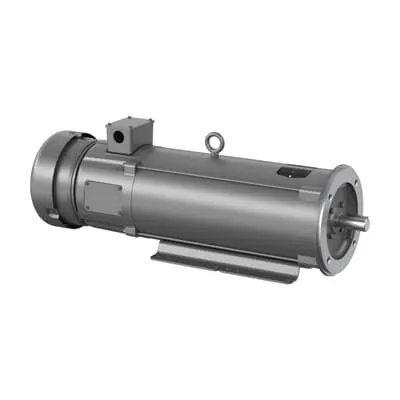

ABB CDPT3605 DC Permanent Magnet - CE/CSA/UR TEFC
Part Number: 7BCDPT3605
Quick Summary
ABB CDPT3605 DC Permanent Magnet drive provides precise 5 HP speed control for conveyors and processing lines. Engineers often struggle with torque variability and maintenance burdens when using older PM or induction motors in harsh environments. This unit ships with CE, CSA, and UR certifications, supporting global compliance, while the TEFC enclosure protects sensitive components in dust, humidity, and temperature swings. Designed for quick sourcing and reliable ABB integration, it helps you reduce downtime and total cost of ownership through predictable performance. With a base speed of 1750 r/min and a compact footprint, it delivers robust torque for tight installations and streamlined maintenance.
Product Information
Extended Description
7BCDPT3605 ABB: DC Permanent Magnet Standard 5 Hp (CDPT3605)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,DC,1810ATC,3681P,TEFC,F
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
24.5 A
Armature Inertia
177.06 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6206, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDPT3605
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
1810
Global Commercial Alias
CDPT3605
Gross Volume
13438.538 inÂł
Gross Weight
164 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,1750RPM,DC,1810ATC,3681P,TEFC,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
DC Permanent Magnet Standard, 5 HP, Frame Size 1810Atc, 0 Phase, TEFC Enclosure, (CDPT3605)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
1810ATC
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
5 Hp
Product Name
DC Permanent Magnet Standard
Product Net Depth / Length
40.938 in
Product Net Height
18.625 in
Product Net Weight
164 lb
Product Net Width
17.625 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B36P333Z509
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
5 HP, Frame Size 1810Atc, 0 PH, TEFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature: DC Permanent Magnet design delivers higher efficiency and a smaller footprint. Business Impact: Reduces energy consumption, frees cabinet space, and improves dynamic response. Application: Ideal for space-constrained conveyors and processing lines where rapid speed changes are required. Feature: Frame Size 1810ATC with TEFC enclosure provides rugged protection against dust, moisture, and temperature swings. Business Impact: Extends motor life in harsh environments and reduces maintenance downtime. Application: Suitable for manufacturing floors, outdoor machines, and wash-down areas. Feature: Foot Mounted base type and 1.13 in shaft diameter simplify installation and couplings. Business Impact: Accelerates commissioning, lowers mounting errors, and enables straightforward retrofits. Application: Conveyor rollers, fans, and pumps with standard coupling interfaces. Feature: 180 V armature voltage and 24.5 A armature current deliver solid starting torque and stable control when paired with DC drives. Business Impact: Improves process stability and reduces voltage sag issues. Application: High-tidelity motor control for material handling and sorting lines. Feature: Certifications, stock accessibility, and warranty terms streamline procurement. Business Impact: Global compliance, fast lead times, and clear warranty expectations reduce risk. Application: Global plants requiring CE/CSA/UR certification and reliable supply.
Get a Quick Quote for a ABB 7BCDPT3605
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCDPT3605?
Enquire Now
FAQs
The CDPT3605 is designed for foot mounting with a 1.13 in shaft diameter and TEFC enclosure. Ensure adequate enclosure clearance and a compatible DC drive interface. Allow for vibration isolation and proper coupling alignment to maximize torque transfer and minimize wear. The unit is built to operate in ambient up to 40 °C and at sea-level up to 1000 m, so plan enclosures and cabling accordingly.
Expect smooth, precise speed control at 1750 r/min with a rated output of 5 HP. Armature voltage is 180 V, with a current around 24.5 A, and a base speed suitable for continuous operation. Its insulation class F and TEFC enclosure provide reliability in demanding environments. Pairing with a suitable DC drive enables efficient torque delivery across a range of loads.
Yes. The DC permanent magnet design offers high efficiency and strong dynamic response ideal for conveyors and material handling. The 1810 frame size, TEFC enclosure, and robust shaft withstand frequent stop-start cycles. When combined with the right DC drive, you gain improved torque at low speeds and better process control, reducing jams and improving throughput.
The CDPT3605 includes CE, CSA, and UR certifications, with additional WEEE compliance noted. These marks support global acceptance and regulatory alignment for industrial installations. Always verify local electrical codes and integrate with certified drives and components to maintain compliance across regions.
Warranty terms indicate standard product warranty with a requirement that warranty items be returned if needed. The motor features a TEFC enclosure, sealed bearings, and a regreasable lubrication option, supporting longer service intervals. Regular inspection of shaft seals, bearing condition, and drive health will help optimize uptime and total cost of ownership.
