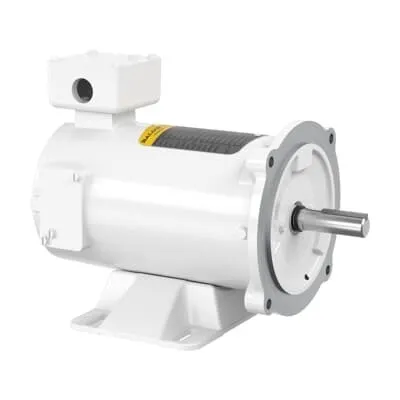

ABB 7BCDPWD3320 DC PM Washdown - CE/CSA/UR/WEEE
Part Number: 7BCDPWD3320
Quick Summary
DC PM Washdown motors provide reliable, efficient drive for washdown-duty equipment in food, beverage, and manufacturing lines. Many buyers face moisture, dust, and tight maintenance windows that hurt uptime and productivity. Certified to CE, CSA, UR, and WEEE requirements, this unit supports global compliance for regulated environments, ensuring safe operation across sites. With a 0.33 HP output and a 56C frame in a TENV enclosure, it reduces lifecycle costs while easing installation, spare parts compatibility, and maintenance planning, helping you meet production targets without compromising safety or quality.
Product Information
Extended Description
7BCDPWD3320 ABB: DC PM Washdown 0.33 Hp (CDPWD3320)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,1750RPM,DC,56C,3327P,TENV,F1
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
3.2 A
Armature Inertia
10.54 ft·lbf
Armature Voltage
90 V
Base Speed
1750 r/min
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDPWD3320
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
33LY2142
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Global Commercial Alias
CDPWD3320
Gross Volume
2200.078 in³
Gross Weight
27 lb
Horsepower Rating UL/CSA
0.330 Hp
IC Class
TENV
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.33HP,1750RPM,DC,56C,3327P,TENV,F1
Lubrication
For life
Made To Order
No
Medium Description
DC PM Washdown, 0.33 HP, Frame Size 56C, 0 Phase, TENV Enclosure, (CDPWD3320)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
0.33 Hp
Product Name
DC PM Washdown
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
27 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B33-2142Z102
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
0.33 HP, Frame Size 56C, 0 PH, TENV,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature: Permanent magnet DC brushless powertrain delivers high efficiency with robust washdown integrity. Business Impact: Lower energy consumption and reduced maintenance intervals translate to measurable uptime gains on high-demand lines. Application: Conveyor systems and packaging lines in food-grade facilities benefit from consistent torque and quiet operation, even under moist washdown cycles. Feature: 56C frame in a TENV enclosure with sealed bearings (6203) provides rugged durability. Business Impact: Improved environmental resistance and longer service life in harsh production zones reduce replacement costs. Application: Stainless-washdown or damp environments in dairies and bakeries benefit from dependable rotation with minimal risk of failure. Feature: Foot-mounted installation and compact footprint (length 18.625 in, width 10.5 in, height 11.25 in) simplify retrofits. Business Impact: Faster commissioning, easier alignment with existing shafts, and reduced installation time lower total project cost. Application: Retrofit projects on existing lines where space is at a premium benefit from a compact motor footprint. Feature: Global stock and 0-day lead time across multiple warehouses. Business Impact: Shorter procurement cycles, fewer production delays, and better spare-part planning. Application: Global manufacturing sites that require rapid deployment or replacements can sustain continuous operations without extended downtime. Feature: 0 phase, 0.33 HP output with 1750 r/min base speed and 90 V armature voltage. Business Impact: Simplified control strategy and predictable performance for variable-speed drives. Application: DC-driven washdown conveyors and automated handling systems that demand steady, reliable speed control.
Get a Quick Quote for a ABB 7BCDPWD3320
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCDPWD3320?
Enquire Now
FAQs
Yes. The model uses a 56C frame and is designed for foot-mounted, horizontal installation. It aligns with standard footprint patterns, simplifying bolt alignment and shaft alignment with existing drives. This reduces downtime during retrofits and ensures compatibility with common coupling and mounting hardware used in industrial conveyors and washdown lines.
Key specs include 0.33 HP output, 1750 r/min base speed, 90 V armature voltage, and 3.2 A armature current. The motor employs a TENV enclosure with insulation class F and sealed 6203 bearings, weighing about 27 lb. The shaft diameter is 0.63 in, supporting reliable coupling to standard drive components.
Yes. The DC PM Washdown motor is designed for washdown applications, featuring a TENV enclosure and sealed bearings for moisture resistance. Its lubrication is listed as life-long, reducing maintenance in hygienic processing lines. The unit’s certifications (CE, CSA, UR, WEEE) further support compliance in regulated food and beverage facilities.
The model carries CE, CSA, UR, and WEEE certifications, indicating compliance with electrical safety, safety standards recognition, and environmental disposal requirements. This helps manufacturers meet global procurement standards and simplifies audits when deploying equipment across multinational sites.
Stock is available at multiple warehouses with 0-day lead time, including US and international facilities. Warranty terms indicate that products returned under warranty must be handled per the supplier policies. Availability through various regional stockrooms supports rapid deployment and streamlined after-sales support for global operations.
