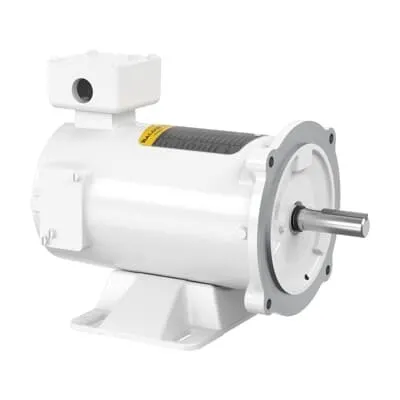

ABB 7BCDPWD3326 DC PM Washdown - CE/CSA/UR Certified
Part Number: 7BCDPWD3326
Quick Summary
The ABB 7BCDPWD3326 DC PM Washdown motor delivers reliable 0.5 HP drive for cleanroom/washdown-integrated processes. In washdown environments, operators face corrosion, fouling, and downtime that erode productivity and inflate maintenance costs. Key specs include a Totally Enclosed Non-Ventilated (TENV) enclosure, insulation class F, and CE, CSA, UR certifications, enabling global deployment up to 40 °C and at altitudes up to 1000 m. Designed around a 56C frame with a 1750 rpm speed and 180 V armature, it fits common OEM footprints while delivering robust, long-life performance. The DC PM design reduces wear and energy use, supporting predictable operation and lower lifecycle costs across industrial lines.
Product Information
Extended Description
7BCDPWD3326 ABB: DC PM Washdown 0.5 Hp (CDPWD3326)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1750RPM,DC,56C,3336P,TENV,F1
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
2.5 A
Armature Inertia
8.42 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDPWD3326
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
33LY2154
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Global Commercial Alias
CDPWD3326
Gross Volume
2200.078 inÂł
Gross Weight
32 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TENV
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.5HP,1750RPM,DC,56C,3336P,TENV,F1
Lubrication
For life
Made To Order
No
Medium Description
DC PM Washdown, 0.5 HP, Frame Size 56C, 0 Phase, TENV Enclosure, (CDPWD3326)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
0.5 Hp
Product Name
DC PM Washdown
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
32 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B33-2154Z139
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, Frame Size 56C, 0 PH, TENV,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature: Permanent magnet DC (PMDC) design delivers high efficiency and brushless reliability. Business Impact: Reduces maintenance intervals and wear parts, lowering lifecycle costs. Application: Ideal for conveyors and washdown packaging lines in food, beverage, and pharma where uptime matters. Feature: 56C frame with foot-mounted, horizontal mounting. Business Impact: Simplifies retrofits and replacements, preserving existing layouts. Application: Streamlines installation in standard automation footprints. Feature: Totally Enclosed Non-Ventilated (TENV) enclosure with insulation class F. Business Impact: Enhances protection against washdown sprays and high ambient temperatures, improving reliability. Application: Suitable for humid production rooms and processing areas. Feature: Certifications CE, CSA, UR, plus WEEE compliance. Business Impact: Enables global deployment and regulatory alignment, reducing project risk. Application: Supports international OEM and integrator deployments. Feature: 0 phase DC PM motor with 180 V armature and 1750 rpm base speed. Business Impact: Delivers predictable torque and speed with reduced electrical noise. Application: Fits variable-speed needs on lines requiring consistent performance. Feature: 56C frame, 0.63 in shaft, 32 lb weight, 18.625 in length, 11.25 in height, 10.5 in width. Business Impact: Compact footprint facilitates space-constrained installations and quick integration. Application: Conveyor runtimes, lift/lid systems, and washdown equipment where space is at a premium.
Get a Quick Quote for a ABB 7BCDPWD3326
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCDPWD3326?
Enquire Now
FAQs
The unit uses a 56C frame and foot-mounted, horizontal mounting configuration, designed for standard automation footprints. It is a DC PM brushless motor with a 180 V armature and a compact 18.625 in length. Ensure compatible shaft alignment (0.63 in diameter) and space for the 32 lb unit, with attention to ambient conditions up to 40 °C and altitudes up to 1000 m.
Key specs include a 0.5 HP output, 1750 r/min base speed, and 180 V armature. The motor is 56C frame, with a 0.63 in shaft and 18.625 in depth. It uses a TENV enclosure and insulation class F, providing reliable operation in washdown environments while maintaining low maintenance and predictable torque.
Yes. The DC PM Washdown is designed for washdown environments with a TENV enclosure and 40 °C ambient tolerance. It carries CE, CSA, UR, and WEEE certifications, supporting global installations in food, beverage, and packaging lines where hygiene and reliability are critical.
The product carries CE, CSA, UR and WEEE certifications, signaling compliance with European, North American, and environmental regulations. This matters for global deployments, regulatory audits, and ensuring safe integration with other certified equipment across diverse facilities.
The brushless PM design reduces wear parts and routine maintenance, improving uptime and lowering service costs. Combined with a compact footprint and robust enclosure for washdown settings, the motor offers favorable total cost of ownership through longer service life, energy efficiency, and easier retrofits in existing lines.
