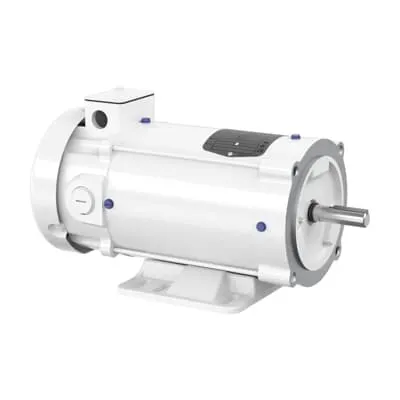

ABB CDPWD3455 DC PM Washdown - TEFC Enclosure F1
Part Number: 7BCDPWD3455
Quick Summary
DC PM Washdown motors provide reliable 1 HP DC drive for washdown lines in food and beverage manufacturing. But many environments demand sealed enclosures and low-maintenance operation to prevent corrosion and downtime. This ABB motor family carries CE, CSA, UR, and WEEE certifications, ensuring global market access and strong safety compliance. With a 56C frame and TEFC enclosure, it withstands washdowns and high-pressure cleaning while delivering dependable torque. Together with 0-day lead times and stocked warehouses, this design supports lean procurement, predictable uptime, and reduced total cost of ownership.
Product Information
Extended Description
7BCDPWD3455 ABB: DC PM Washdown 1 Hp (CDPWD3455)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1750RPM,DC,56C,3435P,TEFC,F1
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
5 A
Armature Inertia
13.66 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDPWD3455
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
34LY6418
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Global Commercial Alias
CDPWD3455
Gross Volume
2200.078 in³
Gross Weight
44 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1750RPM,DC,56C,3435P,TEFC,F1
Lubrication
For life
Made To Order
No
Medium Description
DC PM Washdown, 1 HP, Frame Size 56C, 0 Phase, TEFC Enclosure, (CDPWD3455)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
1 Hp
Product Name
DC PM Washdown
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
44 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B34-6418-3865
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
1 HP, Frame Size 56C, 0 PH, TEFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature → Business Impact → Application: TEFC enclosure protects the motor from water, dust, and cleaning agents, reducing corrosion risk and downtime in sanitary environments; result is increased equipment availability on food processing lines and packaging conveyors. Feature → Business Impact → Application: 1 HP, 1750 r/min output on a 56C frame delivers sufficient torque for standard conveyors and drive systems, enabling compact footprints and easier retrofits in existing lines. Feature → Business Impact → Application: lubrication for life reduces maintenance intervals and labor costs, which translates to lower total cost of ownership in high-functioning production cells. Feature → Business Impact → Application: sealed bearings (6203) and steel frame construction enhance durability under repeated washdowns and ambient temperatures up to 40 °C, supporting long service life in harsh environments. Feature → Business Impact → Application: zero lead time stocking and multi-warehouse availability shorten orders and improve production planning, ensuring rapid deployment across global facilities. Feature → Business Impact → Application: CE, CSA, UR, and WEEE certifications simplify regulatory compliance and product documentation for multinational operations, accelerating project timelines and scale.
Get a Quick Quote for a ABB 7BCDPWD3455
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCDPWD3455?
Enquire Now
FAQs
The CDPWD3455 uses a standard 56C frame with a foot-mounted, horizontal mounting orientation, making it compatible with most existing conveyors and drive trains that fit a 56C footprint. It’s designed for straightforward replacement without retooling and is stocked in multiple warehouses to minimize downtime during swap-outs.
The motor features a TEFC enclosure, a steel frame, and sealed bearings (6203), all designed to withstand high-pressure washdowns and exposure to cleaning chemicals. Lubrication is specified as life-long, reducing maintenance needs and extending service intervals in sanitary production lines.
This model provides 1 HP output at 1750 rpm with a 180 V DC input and is listed as 0 phase, aligning with DC drive configurations. Ensure your controller or drive supports the 180 V DC input and compatible speed-torque control for stable operation on your conveyance system.
The CDPWD3455 carries CE, CSA, UR, and WEEE certifications, supporting global market access and regulatory compliance. Additional standards like NEMA are noted, aiding compatibility with standard industrial controls and safety requirements.
Lead time is listed as 0 day, and the product is stocked at multiple warehouses (including US and China), enabling rapid fulfillment. This visibility helps with just-in-time purchasing and reduces project risk during installation and commissioning.
