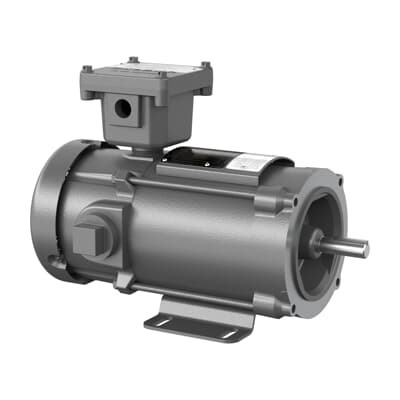

ABB CDPX3426 DC PM Explosion Proof - XPFC Enclosure
Part Number: 7BCDPX3426
Quick Summary
DC PM Explosion Proof motor provides a safe, reliable drive for hazardous-area equipment in industrial automation. Operators often struggle with balancing safety, downtime, and regulatory compliance in explosive environments. This model leverages XPFC enclosure certification and CSA, UL, UR recognition to enable cross-site deployment with confidence. The 56C frame, Baldor-Reliance engineering, and regreasable bearings help minimize maintenance while maximizing uptime. Ideal for oil and gas, chemical processing, and heavy industry, it supports predictable performance in up to 40 °C ambient and at elevations up to 1000 m, delivering tangible business value through reduced risk and lower lifecycle costs.
Product Information
Extended Description
7BCDPX3426 ABB: DC PM Explosion Proof 0.5 Hp (CDPX3426)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1750RPM,DC,56C,X3428P,XPFC,F1
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
2.5 A
Armature Inertia
10.93 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDPX3426
Certification Agency
CSA | UL | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
34LY6519
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
EX-Protection
ClassI
Enclosure Type
XPFC
Explosion Protection
Explosion-proof
Frame Material
Steel
Frame Size
56
Global Commercial Alias
CDPX3426
Gross Volume
3590.443 inÂł
Gross Weight
46 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
XPFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.5HP,1750RPM,DC,56C,X3428P,XPFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
DC PM Explosion Proof, 0.5 HP, Frame Size 56C, 0 Phase, XPFC Enclosure, (CDPX3426)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
0.5 Hp
Product Name
DC PM Explosion Proof
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
46 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B34-6519-3946G1
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, Frame Size 56C, 0 PH, XPFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
Feature: Explosion-proof DC PM motor design provides inherent safety for hazardous locations. Benefit: Reduces ignition risk and simplifies compliance with industry standards, enabling safer operation in oil, gas, and chemical processing environments. Application: Critical process equipment and material handling in refineries and petrochemical plants. Feature: XPFC enclosure and CSA | UL | UR certifications. Benefit: Enables multi-region installation and streamlined supplier qualification, reducing procurement complexity and audit findings. Application: North American installations with strict regulatory requirements. Feature: 56C frame with foot-mounted, horizontal mounting orientation. Benefit: Eases retrofits and new installations by fitting standard bases and minimizing alignment work. Application: Conveyor drives, pump assemblies, and agitators in hazardous areas. Feature: Regreasable lubrication and sealed bearings (6203). Benefit: Extends service intervals, lowers maintenance labor, and sustains consistent torque under load. Application: Continuous-duty operations where reliability matters most. Feature: 0.5 HP output and 1750 r/min base speed with 180 V armature. Benefit: Provides adequate power density for compact drives while preserving efficiency and control in DC systems. Application: Material handling, fans, and small auger or mixer drives in restricted spaces. Feature: Robust Baldor-Reliance design and steel frame construction. Benefit: Improves durability, vibration resistance, and environmental tolerance, lowering total cost of ownership. Application: Harsh industrial environments and Marine Equipment contexts where ruggedness matters.
Get a Quick Quote for a ABB 7BCDPX3426
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCDPX3426?
Enquire Now
FAQs
CDPX3426 uses a foot-mounted, horizontal mounting setup with a 56C frame and XPFC enclosure, designed for quick retrofits and straightforward alignment in hazardous environments. Its sealed bearings and regreasable lubrication reduce maintenance needs, while CSA UL UR certification supports cross-regional compliance.
This model delivers 0.5 HP output with a base speed of 1750 r/min, a 56C frame, and 180 V armature current. It weighs about 46 lb with a robust steel frame and is designed for continuous operation in up to 40 °C ambient conditions and at altitudes up to 1000 m.
Yes. Its explosion-proof XPFC enclosure, Class I protection characteristics, and CSA UL UR certifications make it suitable for hazardous-area automation in oil & gas and chemical processing plants, with verified performance in demanding duty cycles.
The XPFC enclosure provides enhanced protection against ignition sources in demanding environments, while frame size and mounting options align with standard industrial bases. This simplifies retrofits and new installations, reducing commissioning time and enabling safer operation in hazardous areas.
Product information notes a warranty framework where returning under warranty is required if a fault arises. Supported by ABB’s Baldor-Reliance product family, customers typically benefit from established service channels and field support for maintenance planning and spare parts.
