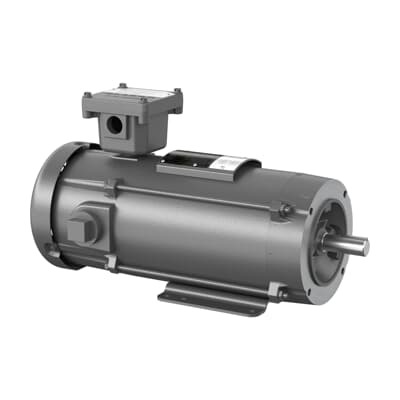

ABB CDPX3575 DC PM Explosion Proof - XPFC Enclosure
Part Number: 7BCDPX3575
Quick Summary
ABB CDPX3575 DC PM Explosion Proof is a high-reliability motor solution designed for hazardous-area applications like conveyors and pumps. This drive addresses the common pain point of balancing safety compliance with uptime, delivering robust performance in explosive environments. Certified for hazardous locations with XPFC enclosure, CSA, UL, and UR listings, it meets stringent industry standards. The 1.5 HP, 1750 rpm design pairs with a 145TC frame to fit standard Baldor-Reliance footprints, enabling seamless stocking and easy replacement. For projects requiring durable motors with predictable maintenance, this solution translates into lower total cost of ownership and steadier production line throughput.
Product Information
Extended Description
7BCDPX3575 ABB: DC PM Explosion Proof 1.5 Hp (CDPX3575)
Configuration Only
No
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1750RPM,DC,145TC,X3548P,XPFC,
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
7.1 A
Armature Inertia
40.46 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDPX3575
Certification Agency
CSA | UL | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYP548
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
EX-Protection
ClassI
Enclosure Type
XPFC
Explosion Protection
Explosion-proof
Frame Material
Steel
Frame Size
145
Global Commercial Alias
CDPX3575
Gross Volume
3590.443 in³
Gross Weight
80 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
XPFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1.5HP,1750RPM,DC,145TC,X3548P,XPFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
DC PM Explosion Proof, 1.5 HP, Frame Size 145Tc, 0 Phase, XPFC Enclosure, (CDPX3575)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
1.5 Hp
Product Name
DC PM Explosion Proof
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
80 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
1.5 HP, Frame Size 145Tc, 0 PH, XPFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
XPFC explosion-proof enclosure enhances safety and regulatory compliance, reducing ignition risk in hazardous environments and simplifying permit requirements for installation and operation. Business impact: safer sites and fewer project delays due to rework. Application: conveyors and process lines in chemical plants or oil and gas facilities. The 145TC steel frame and foot-mounted design deliver rugged durability and straightforward retrofits, supporting quick installation and long service life. This motor also features a 180 V armature with 7.1 A current and a rated 1.5 HP at 1750 r/min, enabling reliable speed control and compatible drive sizing for many DC motor systems. The regreasable lubrication and sealed bearings (6205) minimize maintenance windows, boosting uptime and reducing maintenance costs in demanding environments. Stocked at multiple warehouses and offered with a clear Made To Order status of No, it supports rapid procurement and project scheduling. With a stand-alone footprint and a 22.875 in length, 12.813 in height, and 12.25 in width, it integrates into existing layouts without extensive rework. The product adheres to NEMA standards, Class I protection, and XPFC enclosure requirements, ensuring safe operation under a wide range of temperatures and altitudes.
Get a Quick Quote for a ABB 7BCDPX3575
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCDPX3575?
Enquire Now
FAQs
The CDPX3575 uses a 145TC frame with a foot-mounted configuration and horizontal mounting orientation, which aligns with common Baldor-Reliance footprints. Expect a footprint around 12.25 in wide by 22.875 in long, with a 0.88 in shaft diameter. Ensure the installation area supports the XPFC enclosure's clearance and that the drive system accommodates a 180 V, 7.1 A armature. Pre-install checks should include securing proper fasteners and confirming lubrication access for regreasable bearings.
This motor carries CSA and UL certifications, with UR recognition for components, and features an XPFC enclosure designed for Class I environments. These certifications help satisfy regulatory requirements for hazardous-area installations and simplify contractor approvals, particularly in North American facilities. Always verify local authority approvals and ensure compatible accessories and drive electronics are certified for the same standard to maintain overall system compliance.
Plan for a 180 V armature voltage with a 7.1 A current draw and a rated output of 1.5 HP at 1750 r/min. The motor is designed for 0-phase/0- based documentation, with a base speed of 1750 r/min and a service factor of 1.00. The 145TC frame and 22.875 in length support integration with standard DC drive configurations, while regreasable lubrication extends maintenance intervals and reduces downtime.
Yes, this model is stocked at multiple warehouses across regions, including locations in the United States and China. Lead times are typically short for stocked units, with a Made To Order status of No. For specific delivery windows, confirm stock levels at your regional distributor and reference the listed warehouse codes (e.g., EXPU) to estimate readiness and transit times. This helps minimize project delays and supports just-in-time procurement strategies.
Maintenance focuses on the regreasable lubrication and sealed 6205 bearings, designed for longer service intervals in demanding environments. Routine checks should include lubrication scheduling, inspection of the XPFC enclosure for integrity, and verification of shaft alignment with loaded equipment. The 80 lb weight and robust steel frame contribute to durability, while the 145TC footprint facilitates straightforward bearing and seal service during routine maintenance to keep downtime to a minimum.
