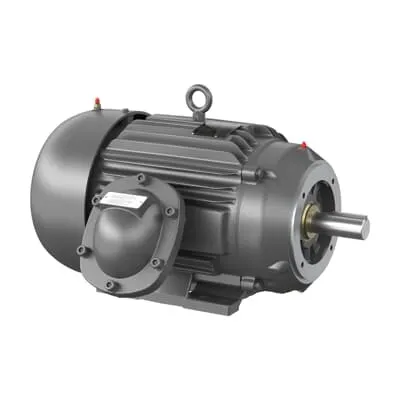

ABB 7BCDRX25244T-5 Explosion Proof Drill Rig Duty - NEMA
Part Number: 7BCDRX25244T-5
Quick Summary
ABB 7BCDRX25244T-5 Explosion Proof Drill Rig Duty powers rugged drilling operations in hazardous environments. Engineers often struggle with reliability and compliance when selecting a drill motor for explosive atmospheres. This unit aligns with NEMA standards and a 575 V, 60 Hz, 20 HP, 4-pole configuration, featuring XPFC protection and a robust 256TC frame. With a United States origin and immediate availability, it supports fast procurement and consistent performance in critical applications. The combination of a durable Iron frame, insulation class F, and a 40 °C ambient rating translates into lower maintenance costs and longer service life, while integration with standard control systems remains straightforward.
Product Information
Extended Description
7BCDRX25244T-5 ABB: Explosion Proof Drill Rig Duty 20 Hp 575 V (CDRX25244T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,1770RPM,3PH,60HZ,256TC,XPFC,F1
Invoice Description
20HP,1770RPM,3PH,60HZ,256TC,XPFC,F1
Product Name
Explosion Proof Drill Rig Duty
Product Type
Undefined
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
United States (US)
Customs Tariff Number
85015220
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Medium Description
Explosion Proof Drill Rig Duty, 20 HP, 1800 RPM, Frame Size 256Tc, C-Face Mounting, 3 Phase, XPFC Enclosure, 575 V, 60 Hz (CDRX25244
Short Description
20 HP, 1800 RPM, Frame Size 256Tc, C-Face, 3 PH, XPFC, 575 V
Electrical Data
Frequency (f)
60 Hz
Output Power
20 Hp
Ambient Temperature
40 °C
Insulation Class
F
Number of Poles (High)
4
Type of Duty
Continuous
Frame Material
Iron
Frame Size
256
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Width
23.75 in
Product Net Weight
151.953 kg
Gross Weight
151.953 kg
Standards
NEMA
Explosion-Proof XPFC enclosure provides safe operation and protects critical components in hazardous environments, reducing risk and downtime. Business impact: enhanced personnel safety and suppression of ignition sources, enabling reliable drilling in explosion-prone zones. Application: mine-site and petrochemical drilling where compliance with strict protection standards is essential. Mechanically, the 256TC frame paired with an Iron chassis delivers robust structural integrity for heavy-duty drilling, improving uptime and extending service life in tough workplaces. Electrical performance shows 20 HP output at 60 Hz with a 575 V three-phase supply and four poles, supporting precise speed control and high start-up torque for demanding rigs. Insulation class F supports sustained operation under elevated ambient temperatures up to 40 °C, reducing the risk of insulation breakdown in hot environments. Compatibility with standard wiring practices and C-face mounting simplifies installation and service, minimizing downtime during maintenance windows. From a cost-of-ownership perspective, the unit’s durable construction, stock availability, and zero-day lead time translate into faster project delivery and lower total procurement costs.
