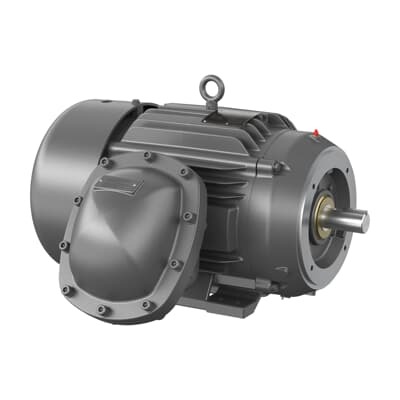

ABB 7BCDRX282524T Explosion Proof Drill Rig Duty - XPFC Enclosure
Part Number: 7BCDRX282524T
Quick Summary
ABB 7BCDRX282524T is an explosion-proof drill rig duty designed for heavy-duty drilling in hazardous environments. Operators face uptime challenges and safety compliance pressures, especially in high-risk sites where downtime translates into costly delays. This model aligns with NEMA standards and features an XPFC enclosure to support safe operation in demanding settings, while the 284T frame and 40 °C ambient rating ensure reliable performance. With stock available at multiple warehouses and a 0 day lead time, it delivers rapid procurement for project ramps, and the 230/460 V and 190/380 V options help integrate seamlessly with diverse electrical systems, enhancing overall project efficiency and equipment utilization.
Product Information
Extended Description
7BCDRX282524T ABB: Explosion Proof Drill Rig Duty 20 Hp 190 V (CDRX282524T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,3520//2930RPM,3PH,60HZ,284TSC,
Invoice Description
25HP,3520//2930RPM,3PH,60HZ,284TSC,XPFC,
Product Name
Explosion Proof Drill Rig Duty
Product Type
Undefined
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
United States (US)
Customs Tariff Number
85015230
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Medium Description
Explosion Proof Drill Rig Duty, 25 HP, 3600//3000 RPM, Frame Size 284Tsc, C-Face Mounting, 3 Phase, XPFC Enclosure, 230/460//190/380
Short Description
25 HP, 3600//3000 RPM, Frame Size 284Tsc, C-Face, 3 PH, XPFC, 230/460//190/380 V
Electrical Data
Frequency (f)
50 Hz | 60 Hz
Output Power
20 Hp | 25 Hp
Ambient Temperature
40 °C
Insulation Class
F
Number of Poles (High)
2
Type of Duty
Continuous
Frame Material
Iron
Frame Size
284
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Width
32.5 in
Product Net Weight
408 lb
Gross Weight
408 lb
Standards
NEMA
Explosion proof design with XPFC enclosure provides enhanced safety in hazardous environments, reducing risk of ignition and enabling compliant operation in regulated facilities. This translates to lower incident costs and greater equipment uptime in mining, chemical processing, or oil and gas applications. The drill rig supports continuous duty with flexible power options (50 Hz and 60 Hz) and 20 HP continuous / 25 HP peak outputs, delivering reliable torque for sustained drilling tasks while controlling energy consumption and wear. The rugged 284 frame made of iron reduces vibration and mechanical stress, extending service life and minimizing maintenance cycles in heavy fabrication or steelworking environments. Dual voltage inputs (230/460 V and 190/380 V) simplify installation in mixed-site plants, accelerating commissioning and reducing retrofit risk during plant upgrades. Stocked-at-warehouses with 0 day lead time enables rapid deployment for urgent projects, supporting just-in-time procurement and minimized project downtime. Operating conditions meet ambient temps up to 40 °C and insulation class F, ensuring stable performance in hot industrial spaces and contributing to longer motor life in challenging climates.
Get a Quick Quote for a ABB 7BCDRX282524T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCDRX282524T?
Enquire Now
FAQs
Yes. The 7BCDRX282524T is designed for multiple voltage configurations, including 230/460 V and 190/380 V, enabling straightforward integration with existing plant electrical systems. This versatility reduces the need for major electrical upgrades and supports smoother retrofits in varied industrial facilities.
The XPFC enclosure provides an enhanced protective housing that minimizes ignition risks in hazardous atmospheres. This design supports compliant operation in explosive environments, improves operator safety, and helps maintain equipment performance by shielding sensitive components from dust, moisture, and corrosive exposures.
Key specs include 20 HP continuous and 25 HP peak output, compatible with 50 Hz and 60 Hz systems, and voltage options of 230/460 V and 190/380 V. The unit also operates in ambient temperatures up to 40 °C and uses insulation class F, ensuring reliable performance under demanding industrial conditions.
Ideal for mining, oil and gas, chemical processing, and heavy fabrication, the 284 frame size and C-face mounting enable stable, high-torque drilling. The rugged iron frame reduces vibration, while the explosion-proof design and NEMA alignment support safety and regulatory compliance across high-risk facilities.
Stocked at multiple warehouses with a 0 day lead time means rapid availability for urgent deployments. Warranty terms indicate product returns are required if a warranty issue arises, helping manage risk and streamline after-sales support during critical project phases.
