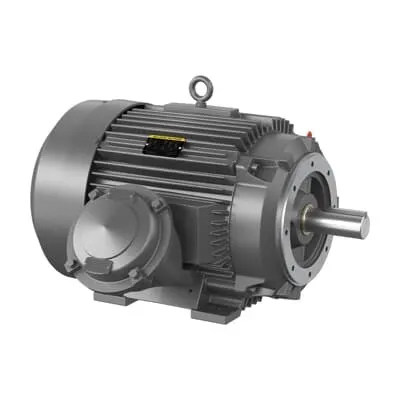

ABB 7BCDRX36644T Explosion Proof Drill Rig Duty - TEFC F1
Part Number: 7BCDRX36644T
Quick Summary
Explosion Proof Drill Rig Duty ABB 7BCDRX36644T delivers reliable, safe drilling performance in hazardous industrial settings. Users often contend with downtime, maintenance burdens, and compliance pressures when equipment is outdated or not readily supported. This model aligns with NEMA standards for rugged, explosion-protected operation, with a TEFC enclosure and a 60 HP rating that reinforce reliability. By leveraging industry-grade motor design and strong stock availability across major warehouses, it enables faster installation, reduced total cost of ownership, and sustained productivity in heavy-duty drilling applications.
Product Information
Extended Description
7BCDRX36644T ABB: Explosion Proof Drill Rig Duty 60 Hp 230 V (CDRX36644T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,1780RPM,3PH,60HZ,364TC,TEFC,F1
Invoice Description
60HP,1780RPM,3PH,60HZ,364TC,TEFC,F1
Product Name
Explosion Proof Drill Rig Duty
Product Type
Undefined
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
United States (US)
Customs Tariff Number
85015230
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Medium Description
Explosion Proof Drill Rig Duty, 60 HP, 1800 RPM, Frame Size 364Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CDRX3
Short Description
60 HP, 1800 RPM, Frame Size 364Tc, C-Face, 3 PH, TEFC, 230/460 V
Electrical Data
Frequency (f)
60 Hz
Output Power
60 Hp
Ambient Temperature
40 °C
Insulation Class
F
Number of Poles (High)
4
Type of Duty
Continuous
Frame Material
Iron
Frame Size
364
Bearing
65BC03J30X, Ball
Bearing NDE
65BC03J30X
Product Net Depth / Length
41.5 in
Product Net Height
29.5 in
Product Net Width
34 in
Product Net Weight
470.375 kg
Gross Weight
470.375 kg
Standards
NEMA
Explosion-proof construction provides safer operation in hazardous environments, reducing downtime and protecting personnel, which translates to lower risk and higher uptime on critical drilling projects. The 60 HP, 1780 RPM, 60 Hz, 3-phase motor delivers consistent torque and reliable speed control, enabling precise drilling performance in oil & gas and mining operations while meeting demanding process requirements. The 364TC frame size with a TEFC enclosure (F1) ensures durable performance in tough shop and field conditions, supporting longer service life and easier maintenance planning for maintenance teams. Insulation Class F and an ambient temperature rating of 40 °C extend motor life in hot environments, improving overall equipment availability and reducing premature failures. Stocked at multiple warehouses (USA, China, etc.) with zero lead time enhances procurement efficiency and accelerates project timelines, a critical advantage for contractor-led or OEM integration. The design supports easy installation and interchangeability for replacements, reducing project risk when upgrading existing drill rigs or retrofitting hazardous-location equipment.
Get a Quick Quote for a ABB 7BCDRX36644T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCDRX36644T?
Enquire Now
FAQs
For proper installation, verify voltage compatibility (230/460 V 3-phase), ensure the TEFC enclosure protection is appropriate for the environment, and confirm mounting is compatible with a 364TC frame. Check ambient temperature limits and insulation class F to avoid overheating, and follow standard safety practices for explosive environments to maintain compliance.
Key specifications include 60 HP output, 1780 RPM, 60 Hz frequency, 3-phase operation, 230/460 V voltage, 364TC frame size, TEFC enclosure, and F1 service factor. These values support continuous-duty drilling with reliable torque and consistent speed control in hazardous locations.
Yes. The unit is described as Explosion Proof with a TEFC enclosure and NEMA-standard compliance, making it suitable for hazardous environments where flame- and explosion-protection are essential. Always verify site-specific regulatory requirements and installation standards prior to deployment.
The product lists NEMA as a standard, indicating compliance with national electrical standards for protection and performance in industrial settings. This helps ensure reliability and safety in demanding environments; confirm any local or project-specific certifications as part of procurement.
Lead time is shown as 0 day with stock at multiple warehouses, including US and international locations. This availability supports rapid replacement, project ramp-ups, and minimized downtime when upgrading or provisioning extra units for large installations.
