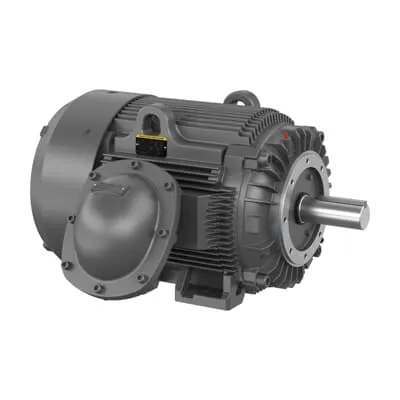

ABB 7BCDRX40144T Explosion Proof Drill Rig Duty - NEMA
Part Number: 7BCDRX40144T
Quick Summary
ABB 7BCDRX40144T is an explosion-proof drill rig designed for heavy-duty drilling in hazardous industrial environments. Owners and engineers wrestle with downtime, safety compliance, and rising maintenance costs when operating in such locations. This model meets NEMA standards, includes explosion-proof construction, and uses a TEFC enclosure with F-class insulation for dependable performance. Its 100 HP output, 60 Hz operation, and 1785–1800 RPM baseline support rapid ramp-up, industry-standard wiring, and serviceability across multiple sites. With US origin and stock availability at select warehouses, it reduces procurement risk and keeps project schedules on track. This is particularly valuable for OEMs and integrators coordinating large deployments.
Product Information
Extended Description
7BCDRX40144T ABB: Explosion Proof Drill Rig Duty 100 Hp 230 V (CDRX40144T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
100HP,1785RPM,3PH,60HZ,405TC,TEFC,F
Invoice Description
100HP,1785RPM,3PH,60HZ,405TC,TEFC,F1
Product Name
Explosion Proof Drill Rig Duty
Product Type
Undefined
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
United States (US)
Customs Tariff Number
85015230
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Medium Description
Explosion Proof Drill Rig Duty, 100 HP, 1800 RPM, Frame Size 405Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CDRX
Short Description
100 HP, 1800 RPM, Frame Size 405Tc, C-Face, 3 PH, TEFC, 230/460 V
Electrical Data
Frequency (f)
60 Hz
Output Power
100 Hp
Ambient Temperature
40 °C
Insulation Class
F
Number of Poles (High)
4
Type of Duty
Continuous
Frame Material
Iron
Frame Size
405
Bearing
80BC03J30X, Ball
Bearing NDE
80BC03J30X
Product Net Depth / Length
49 in
Product Net Height
28 in
Product Net Width
41.5 in
Product Net Weight
665.42 kg
Gross Weight
665.42 kg
Standards
NEMA
Explosion-proof design and NEMA-standard protection deliver safer operation in hazardous environments, reducing risk and downtime. The TEFC enclosure minimizes dust and moisture ingress, lowering maintenance costs while preserving motor efficiency. In real-world use, this translates to fewer unplanned outages and smoother integration with existing safety systems. The 100 HP, 60 Hz, 230/460 V three-phase configuration provides robust torque and flexibility across common industrial power networks, improving machine utilization and uptime. The 405TC frame, C-face mounting, and 4-pole construction offer straightforward installation and reliable performance in compact footprints, enabling easier retrofits and fit-outs. High-quality bearings (80BC03J30X) and an insulation class of F support extended service life, even under ambient temperatures up to 40 °C. Stock availability across multiple warehouses plus a 0-day lead time reduces procurement risk and accelerates project timelines. These factors together yield lower total cost of ownership, faster ROI, and greater predictability for continuous-process operations in oil & gas, chemical plants, and mining.
Get a Quick Quote for a ABB 7BCDRX40144T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCDRX40144T?
Enquire Now
FAQs
Plan for a solid foundation compatible with the 405TC frame and C-face mounting, ensuring adequate clearance for cooling and maintenance access. Use a 3-phase power supply at 230/460 V and 60 Hz, verify TEFC enclosure integrity against dust and moisture, and follow applicable NEMA and local safety guidelines to maintain explosion-proof performance.
Yes. The model is designed for 230/460 V, three-phase operation at 60 Hz. It delivers 100 HP with a 1785–1800 RPM, 4-pole configuration, and a TEFC enclosure, making it adaptable to common industrial power distribution without sacrificing performance or safety.
It is tailored for hazardous-location drilling in oil and gas, chemical processing, mining, and heavy construction. The explosion-proof design, NEMA-standard protection, and heat-tolerant insulation enable reliable operation in demanding environments, while the compact footprint supports retrofit projects and integration with existing process equipment.
The unit is stocked at multiple warehouses with zero-day lead time, facilitating rapid deployment. Warranty terms require returning products under warranty, and routine maintenance should include bearing inspection (80BC03J30X), insulation checks (Class F), TEFC seal inspection, and cooling system cleaning to sustain efficiency and longevity.
Key reliability factors include insulation class F rated for 40 °C ambient, a robust 4-pole design at 1785–1800 RPM, and 80BC03J30X ball bearings in an iron frame. The TEFC enclosure and NEMA-standard construction support continuous operation in harsh environments, while US-origin manufacturing and stocked inventories minimize downtime and procurement risk.
