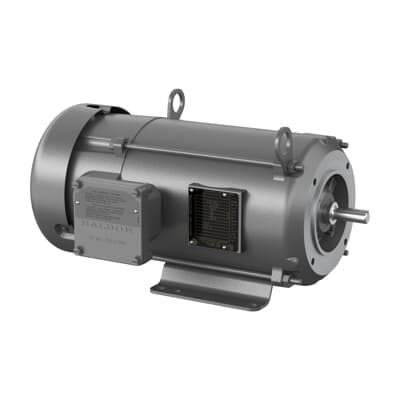

ABB 7BCDX2001 DC Wound Field Fractional Expl - XPFC
Part Number: 7BCDX2001
Quick Summary
ABB 7BCDX2001 DC Wound Field Fractional Expl motors deliver reliable 1 HP drive for hazardous-location pumps and fans. Engineers and procurement teams often struggle to source certified, space‑efficient drives that still meet tough safety standards. The model carries CSA, UL and UR certifications and uses XPFC explosion protection for Class I, Group D environments. Dual voltage flexibility, rugged construction, and global stock enable quicker deployment, lower maintenance costs, and better total cost of ownership for industrial automation projects.
Product Information
Extended Description
7BCDX2001 ABB: DC Wound Field Fractional Expl 1 Hp (CDX2001)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1750RPM,DC,182CZ,X3623D,XPFC,F1
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
5 A
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
BG6206, Sealed Bearing
Bearing NDE
BG6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDX2001
Certification Agency
CSA | UL | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
36LY5382
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
EX-Protection
ClassI
Enclosure Type
XPFC
Explosion Proof Group Class
Class I, Group D, Class II, Group F & G
Explosion Protection
Explosion-proof
Field Current
0.25 A | 0.5 A
Field Voltage
200 V | 100 V
Frame Material
Steel
Frame Size
182
Global Commercial Alias
CDX2001
Gross Volume
8416.408 in³
Gross Weight
102 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
XPFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
A
Invoice Description
1HP,1750RPM,DC,182CZ,X3623D,XPFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
DC Wound Field Fractional Expl, 1 HP, Frame Size 182Cz, 0 Phase, XPFC Enclosure, (CDX2001)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182CZ
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
1 Hp
Product Name
DC Wound Field Fractional Expl
Product Net Depth / Length
27.438 in
Product Net Height
16.75 in
Product Net Weight
102 lb
Product Net Width
18.313 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
1 HP, Frame Size 182Cz, 0 PH, XPFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class
T3B
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
XPFC explosion-protected enclosure provides enhanced safety in hazardous environments, reducing risk and enabling compliance with rigorous industry standards. This directly supports uptime in chemical processing, oil & gas, and mining applications, where reliability and safety are non-negotiable. The 1 HP DC wound field design delivers predictable torque and speed (1750 r/min) within a compact 182CZ frame, enabling straightforward retrofits onto existing conveyors and pumps with minimal mechanical modification and reduced installation time. Dual field voltage capability (200 V / 100 V) and corresponding field currents (0.25 A / 0.5 A) offer adaptable performance across varying power supplies, lowering site wiring complexity and permitting remote-site operation. Foot-mounted configuration with a standard drive end flange simplifies mounting and alignment, while the 0-phase DC design minimizes wiring and controller requirements for easier integration. Regreasable lubrication supports longer intervals between maintenance cycles, lowering lifecycle costs and downtime. Stocked in multiple warehouses (EGAUT001, GBINS001, SGIND004, USABB014), the lead time is zero days, enabling fast project ramp-up and predictable maintenance planning. The motor meets NEMA standards and carries CSA/UL/UR certifications, ensuring regulatory compliance and risk mitigation across North American and international sites.
Get a Quick Quote for a ABB 7BCDX2001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCDX2001?
Enquire Now
FAQs
This model is foot mounted with a 0.63 in shaft diameter and frame size 182CZ, designed for straightforward retrofits. Drive End Flange is Standard, and overall dimensions align with common 182CZ motor footprints for easy compatibility with existing pulleys and couplings.
It carries CSA, UL, and UR certifications and features XPFC explosion protection suitable for Class I environments, including Group D. This combination supports compliance in North American hazardous locations and aligns with rigorous industrial safety requirements.
The motor supports Field Voltage options of 200 V or 100 V with corresponding Field Currents of 0.25 A or 0.5 A. This flexibility simplifies site wiring and power sourcing, reducing installation time and enabling reliable performance across varying electrical supplies.
The unit is regreasable for extended lubrication cycles, foot-mounted with a standard flange for quick mounting, and is stocked in multiple warehouses for fast fulfillment. Lead time is 0 days, supporting proactive maintenance and reduced downtime in aggressive production schedules.
Ideal for hazardous-location conveyors, pumps, and fans, the 1 HP DC wound field motor delivers reliable, continuous operation at 1750 r/min. With ready stock, low maintenance, and certified safety compliance, projects benefit from reduced downtime, easier procurement, and predictable total cost of ownership.
