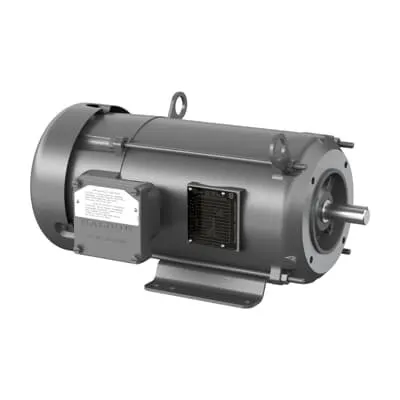

ABB 7BCDX7100 DC Wound Field - XPFC
Part Number: 7BCDX7100
Quick Summary
ABB 7BCDX7100 DC wound field motor delivers reliable fractional horsepower drive for hazardous-location equipment. Operators struggle to maintain uptime and safety in harsh environments while meeting strict regulatory requirements. This model leverages an XPFC explosion-proof enclosure and CSA | UL | UR certifications to strengthen compliance across critical industries. With a 1 HP output in a rugged 182C frame and a field-regulated DC design, it supports cost-effective, safe installations in oil, gas, chemical processing, and other demanding applications, while reducing spare-parts complexity and inventory fragmentation.
Product Information
Extended Description
7BCDX7100 ABB: DC Wound Field Fractional Expl 1 Hp (CDX7100)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1750RPM,DC,182C,X3623D,XPFC,F1
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
5 A
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
BG6206, Sealed Bearing
Bearing NDE
BG6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDX7100
Certification Agency
CSA | UL | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
36LY4687
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
EX-Protection
ClassI
Enclosure Type
XPFC
Explosion Proof Group Class
Class I, Group D, Class II, Group F & G
Explosion Protection
Explosion-proof
Field Current
0.25 A | 0.5 A
Field Voltage
200 V | 100 V
Frame Material
Steel
Frame Size
182
Global Commercial Alias
CDX7100
Gross Volume
8416.408 in³
Gross Weight
102 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
XPFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
A
Invoice Description
1HP,1750RPM,DC,182C,X3623D,XPFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
DC Wound Field Fractional Expl, 1 HP, Frame Size 182C, 0 Phase, XPFC Enclosure, (CDX7100)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
1 Hp
Product Name
DC Wound Field Fractional Expl
Product Net Depth / Length
27.438 in
Product Net Height
16.75 in
Product Net Weight
102 lb
Product Net Width
18.313 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
1 HP, Frame Size 182C, 0 PH, XPFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class
T3B
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
Feature → Business Impact → Application: The XPFC enclosure provides explosion protection for Class I and II environments, improving plant safety, reducing risk-related downtime, and simplifying regulatory audits; ideal for chemical plants, refineries, and mining facilities. Feature → Business Impact → Application: A 1 HP, 182C frame delivers compact, high-torque capability with predictable performance, enabling reliable belt conveyors, pumps, and fans with lower total cost of ownership. Feature → Business Impact → Application: Adjustable field current and voltage (0.25 A | 0.5 A; 200 V | 100 V) enable tailored speed and torque control, reducing energy usage and mechanical wear in variable-load processes. Feature → Business Impact → Application: Regreasable lubrication extends service intervals and reduces maintenance labor, supporting continuous operation in hard-to-access setups. Feature → Business Impact → Application: Foot-mounted, horizontal orientation with standard 182C frame facilitates retrofits and new installs, improving installation speed and compatibility with common motor bases. Feature → Business Impact → Application: Global standards alignment (NEMA, CSA/UL/UR) and multiple stock locations shorten procurement cycles and simplify compliance documentation for multi-site deployments.
Get a Quick Quote for a ABB 7BCDX7100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCDX7100?
Enquire Now
FAQs
The 7BCDX7100 is a DC wound field motor designed for use with XPFC explosion-proof enclosures, matching Class I and II environments. It supports field voltages of 200 V or 100 V and a field current of 0.25 A to 0.5 A, enabling straightforward integration with existing DC drives and control systems while meeting global safety standards.
You can expect robust, continuous-duty performance with a rated output of 1 HP and a frame size 182C, delivering reliable torque at 1750 r/min. The XPFC enclosure enables safe operation in hazardous zones, while the 0 phase design simplifies DC power integration in harsh environments.
Yes. The 1 HP DC wound field motor in a rugged 182C frame, combined with XPFC explosion protection and rugged lubrication (regreasable), is well-suited for conveyors and pumps operating in oil and gas facilities, where safety and reliability are paramount and where regulatory compliance is required.
This motor carries CSA, UL, and UR certification coverage for safety and performance in hazardous locations, with XPFC explosion protection and compatible with Class I, Group D and Class II, Groups F & G environments. It also aligns with NEMA standards, aiding procurement and regulatory compliance across sites.
The motor uses regreasable lubrication to extend service intervals, reducing maintenance labor and downtime. Its compact 182C frame and foot-mounted base simplify installation and retrofits, while stock availability and zero-day lead times improve procurement efficiency and accelerate project timelines.
