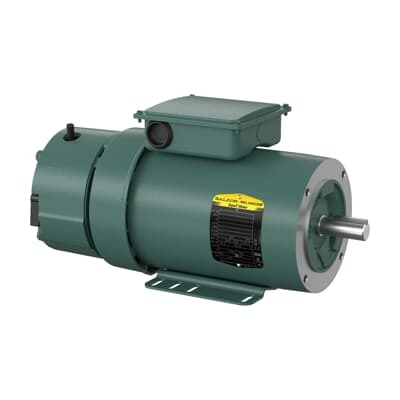

ABB 7BCEBM3558T-D Unit Handling - 2HP, 60Hz TEFC
Part Number: 7BCEBM3558T-D
Quick Summary
ABB 7BCEBM3558T-D Unit Handling is a rugged 2 HP motor for automated material handling. Engineers often battle torque mismatches, unpredictable startup behavior, and long procurement cycles in busy production lines. This unit delivers 2 HP with 1760 rpm at 60 Hz, 230/460 V three‑phase power, and a TEFC enclosure. Certified for CE and CSA with CSA EEV, UR, and WEEE compliance, it supports global manufacturing footprints. Coupled with premium efficiency and a 1.15 service factor, it reduces energy costs while extending motor life. Stocked across multiple warehouses for fast fulfillment and straightforward installation, it helps minimize downtime during line changes and maintenance.
Product Information
Extended Description
7BCEBM3558T-D ABB: Unit Handling 2 Hp 230 V (CEBM3558T-D)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1760RPM,3PH,60HZ,145TCY,3528M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6205
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
CEBM3558T-D
Certification Agency
CE | CSA | CSA EEV | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYX157: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CEBM3558T-D
Gross Volume
3590.443 in³
Gross Weight
61 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F3
Insulation Class
F
Invoice Description
2HP,1760RPM,3PH,60HZ,145TCY,3528M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Unit Handling, 2 HP, 1800 RPM, Frame Size 145Tcy, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEBM3558T-D)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TCY
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
77 %
Product Name
Unit Handling
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
61 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.6 A | 2.8 A
Rated Efficiency
86.50 %
Rated Speed
1760 r/min
Replaced Product ID (OLD)
7B35X157G073G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145Tcy, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
L
Voltage Rating
230 V | 460 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature: 2 HP, 1760 rpm, 60 Hz three‑phase operation in a TEFC frame. Business Impact: Delivers reliable torque and smooth starting to minimize belt wear, gear load, and unplanned downtime. Application: Ideal for unit handling on conveyors, pick‑and‑place systems, and automated packaging lines. Feature: 145TCY frame with foot-mounted base, horizontal mounting, and C-Face drive end. Business Impact: Standardized footprint simplifies retrofits and OEM integration, lowering installation risk. Application: Fits common Baldor/ABB motor kits, enabling quick upgrades in existing lines. Feature: Dual voltage 230/460 V, 60 Hz, 3‑phase, rated current 5.6 A, with a 0.88 in shaft. Business Impact: Flexible wiring reduces spares and enables easy control scheme changes. Application: Suitable for plants that require voltage flexibility or future upgrades. Feature: Brake present for rapid stop and enhanced control. Business Impact: Improves safety on conveyors and packaging lines, enabling compliant emergency stopping. Application: Essential in material handling where precise stop and hold is needed. Feature: Premium efficiency (86.50%), service factor 1.15, TEFC, insulation class F. Business Impact: Lower energy usage over lifecycle and higher tolerance to thermal stress in continuous duty. Application: Long-running automation tasks in industrial environments with high duty cycles. Feature: Regreasable bearings and maintenance-friendly design. Business Impact: Reduces lubrication intervals and total cost of ownership. Application: Heavy equipment and conveyors requiring durable, low-maintenance motors. Feature: Stocked availability and quick fulfillment. Business Impact: Shortens lead times and accelerates project delivery. Application: Global procurement for OEMs and maintenance teams.
Get a Quick Quote for a ABB 7BCEBM3558T-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEBM3558T-D?
Enquire Now
FAQs
Yes. The 7BCEBM3558T-D is built around the 145TCY frame and features a C‑Face drive end with foot mounting. This aligns with standard Baldor/ABB footprints, simplifying retrofits and OEM integrations. When planning a swap, verify shaft diameter (0.88 in) and mounting orientation (horizontal) to ensure seamless installation.
The motor supports dual voltage 230/460 V, three‑phase, at 60 Hz. The nominal current is around 5.6 A, and the Direct On Line starting is typical. For control versatility, plan for appropriate protection, thermal monitoring, and a compatible starter or VFD if soft-start is required, while maintaining proper ventilation for TEFC enclosure.
Yes. The included brake enables rapid stopping and holds, improving safety on conveyors and packaging lines. Integrate a brake control circuit with proper energization sequencing, confirm coil ratings, and ensure interlocks are in place for emergency stop routines. This capability supports safer, more controllable line shutdowns.
The motor carries CE, CSA, CSA EEV, UR, and WEEE listings. These certifications signal compliance with European, North American, and disposal regulations, reducing regulatory risk for multinational plants. When sourcing, verify the specific documents your site requires and maintain records for audits and cross-border procurement.
With regreasable bearings and a maintenance‑friendly design, schedule periodic lubrication per service intervals to extend life and minimize unexpected downtime. The 1.15 service factor and premium efficiency rating contribute to lower energy costs over the motor’s lifetime, delivering a favorable return on investment in high‑duty automation environments.
