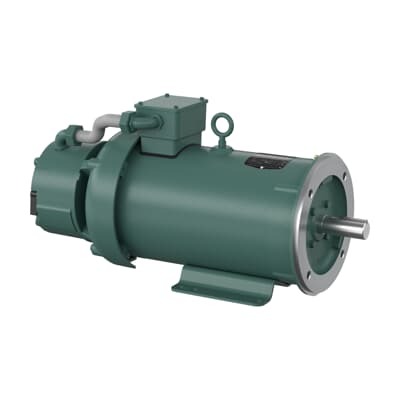

ABB 7BCEBM3611T-D Unit Handling - 3HP TEFC IE3
Part Number: 7BCEBM3611T-D
Quick Summary
ABB 7BCEBM3611T-D Unit Handling motor delivers a reliable 3 HP drive for conveyor and material-handling systems. Sourcing a durable, compliant motor that operates smoothly at 60 Hz on 230/460 V while minimizing downtime is a frequent challenge for engineers. This unit carries critical certifications including IE3 Premium Efficiency, CSA, CSA EEV, and UR, helping meet energy and safety standards across North America. Its TEFC enclosure, 182TC frame, C-face mounting, and regreasable bearings support easy installation and long service intervals. Stocked at multiple warehouses for fast fulfillment, it also offers straightforward maintenance and retrofit compatibility with common drive trains. In short, it combines performance, compliance, and value to reduce total cost of ownership in automation lines.
Product Information
Extended Description
7BCEBM3611T-D ABB: Unit Handling 3 Hp 230 V (CEBM3611T-D)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,182TC,3628M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
CEBM3611T-D
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYN109: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
CEBM3611T-D
Gross Volume
7192.91 inÂł
Gross Weight
103 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F3
Insulation Class
F
Invoice Description
3HP,1760RPM,3PH,60HZ,182TC,3628M,TEFC,F3
Lubrication
Regreasable
Made To Order
No
Medium Description
Unit Handling, 3 HP, 1800 RPM, Frame Size 182Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEBM3611T-D)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182TC
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
77 %
Product Name
Unit Handling
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
103 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.2 A | 4.1 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 182Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
K
Voltage Rating
230 V | 460 V
Feature: 3 HP rating with 1760 RPM at 60 Hz and 230/460 V three-phase input. Business Impact: Delivers steady, reliable torque for continuous unit handling operations, minimizing stalls and delays. Application: Suitable for conveyors, lifting platforms, and other material-handling equipment in moderate-load environments. Feature: TEFC enclosure with 182TC frame and C-face mounting. Business Impact: Enclosure protects internal windings from dust and moisture, extending motor life in harsh factory floors. Application: Fits standard belt and chain drive systems used in packaging and material flow lines. Feature: Regreasable bearings and Direct On Line startup. Business Impact: Reduces maintenance intervals and simplifies commissioning, lowering uptime costs. Application: Ideal for high-availability lines where predictive maintenance is essential. Feature: IE3 Premium Efficiency and CSA/UR/EEV certifications. Business Impact: Lowers energy bills and ensures regulatory compliance, improving total cost of ownership. Application: Suitable for energy-conscious facilities and regulated environments. Feature: 182TC frame and 1.13 in shaft diameter with standard compatibility. Business Impact: Ensures easy retrofit and compatibility with common gearing and coupling options. Application: Retrofit projects and new builds in existing units handling systems.
Get a Quick Quote for a ABB 7BCEBM3611T-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEBM3611T-D?
Enquire Now
FAQs
This motor uses a standard 182TC frame with C-face mounting and 1.13 in shaft diameter, aligning with common conveyor and material-handling gearboxes. It supports direct mounting to typical drive trains and is compatible with 230/460 V, 60 Hz, three-phase systems. For retrofit projects, verify existing mounting holes, shaft alignment, and available space to ensure a smooth swap with minimal downtime.
Key specs include a 3 HP rating, 1760 rpm at 60 Hz, voltage options of 230 V and 460 V, three-phase operation, and a 182TC frame. The motor offers an IE3 efficiency class, a 77% power factor, and a rated current of 8.2 A or 4.1 A depending on voltage and load. Start method is Direct On Line for straightforward startup sequences.
Yes. The motor carries CSA, CSA EEV, and UR certifications, supports IE3 efficiency, and uses a TEFC enclosure, making it appropriate for regulated manufacturing environments. Its regreasable bearings and robust construction improve service life in dusty or humid production floors, while its stock availability helps minimize downtime during installations.
Plan for periodic bearing inspection and greasing due to regreasable bearings, and monitor for dust ingress in TEFC enclosures. Regular inspection of shaft alignment and coupling wear is advised, along with checking insulation resistance every maintenance cycle to preserve efficiency and prevent unexpected outages on continuous-run lines.
The IE3 efficiency rating reduces energy consumption, while durable construction and regreasable bearings lower maintenance and replacement costs. Coupled with fast lead times from stocked warehouses and straightforward installation, the motor can shorten downtime during upgrades and improve line availability, supporting a favorable total cost of ownership over the motor’s service life.
