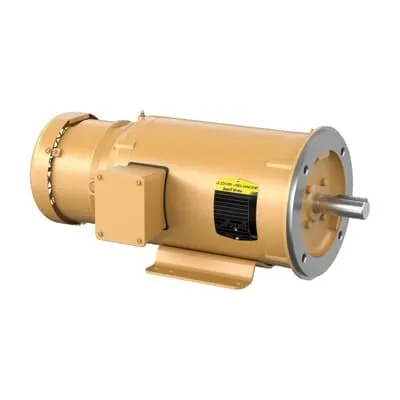

ABB 7BCEBM3615T Brake - IE3 Premium Efficiency
Part Number: 7BCEBM3615T
Quick Summary
Brake 5 HP 230 V enables precise stopping and holding of ABB motors in packaging, conveyors, and tooling environments. Engineers often struggle with inconsistent braking under load peaks and misalignment, leading to downtime and safety concerns. This unit carries CSA, CSA EEV, and UR certifications, and meets IE3 premium efficiency expectations for energy-conscious operations. With 230/460 V compatibility and a robust TEFC enclosure, this brake delivers reliable performance, easy installation, and scalable integration into existing ABB motor systems.
Product Information
Extended Description
7BCEBM3615T ABB: Brake 5 Hp 230 V (CEBM3615T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184TC,3642M,TE
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
CEBM3615T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYE047: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
CEBM3615T
Gross Volume
7192.91 in³
Gross Weight
101 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184TC,3642M,TEFC,F1
Made To Order
No
Medium Description
Brake, 5 HP, 1800 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEBM3615T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
78 %
Product Name
Brake
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
101 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.4 A | 6.7 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application5 HP brake with 230/460 V, 60 Hz operation in a TEFC enclosure delivers reliable braking and energy efficiency across industrial environments. This combination reduces energy waste while maintaining strong holding torque, which translates to lower operating costs and safer line starts and stops on conveyors and packaging lines. Applications include food processing, packaging machinery, and automated assembly where precise stop-and-hold is critical.C-Face drive end flange and foot-mounted base simplify installation on 184TC frame motors, enabling quick retrofits and reduced commissioning time. The result is faster project delivery and less downtime during upgrades, especially in retrofits of existing ABB motor systems.IE3 premium efficiency designation reinforces compliance with energy regulations and lowers lifecycle costs through reduced electrical demand. This is particularly beneficial for facilities pursuing sustainability goals or operating in energy-constrained environments.Certifications CSA, CSA EEV, and UR provide regulatory assurance for North American and global markets, helping procurement teams meet safety and compliance standards without additional auditing. This enhances risk management and smooths supplier qualification for regulated industries.Stocked at multiple warehouses with zero-day lead time, enabling just-in-time procurement for manufacturing operations. This directly supports lean manufacturing goals and reduces carrying costs while ensuring rapid response to demand spikes.
Get a Quick Quote for a ABB 7BCEBM3615T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEBM3615T?
Enquire Now
FAQs
The brake is designed for 184TC frame motors with C-Face mounting and a foot-mounted base. It supports 230 V and 460 V three-phase, 60 Hz systems, and integrates with standard ABB motor assemblies to minimize retrofit complexity.
Yes. The unit is rated for 230 V and 460 V along with 60 Hz supply, supporting direct operation with commonly used 3-phase motors in industrial facilities.
Conveyors, packaging lines, and machine tools benefit from the precise stopping/holding torque, quick installation, and compatibility with horizontal mounting and 184TC frames, improving uptime and product handling accuracy.
The brake carries CSA, CSA EEV, and UR certifications, and aligns with IE3 premium efficiency standards, supporting regulatory compliance and safe operation in North American and global markets.
Lead time is listed as 0 day, with stock maintained at multiple warehouses, enabling fast fulfillment and support for just-in-time manufacturing needs.
