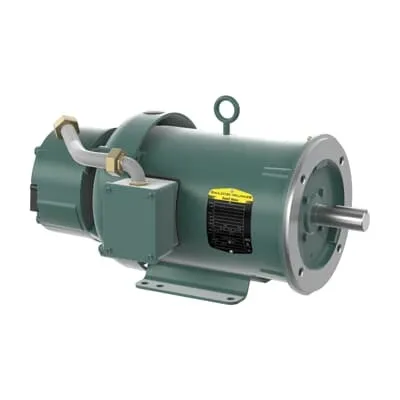

ABB Unit Handling Motors 7BCEBM3615T-D - IE3 TEFC
Part Number: 7BCEBM3615T-D
Quick Summary
Unit Handling Motors deliver reliable drive for automated material handling systems, powering 5 HP, 230 V drives in conveyors and packaging lines. Engineers often face downtime and misalignment when selecting motors with compatible frames and mounting options. This ABB model offers a 184TC frame, C-Face mounting, TEFC enclosure, and direct-on-line starting to simplify installation and reduce startup time. Rated at 1750 rpm with a 4-pole design, it supports smooth indexing and continuous operation in demanding environments. Certifications and compliance matter, and this motor aligns with CSA, CSA EEV, and UR recognition while meeting NEMA design standards and IE3 efficiency. Built for reliability, accessibility, and total cost of ownership, it supports stock availability and fast procurement across multiple warehouses.
Product Information
Extended Description
7BCEBM3615T-D ABB: Unit Handling Motors 5 Hp 230 V (CEBM3615T-D)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184TC,3642M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
Yes
Brand / Label
Baldor-Reliance®
Catalog Number
CEBM3615T-D
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYM650: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
CEBM3615T-D
Gross Volume
7561.383 in³
Gross Weight
121 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184TC,3642M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Frame Size 184Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, (CEBM3615T-D)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
78 %
Product Name
Unit Handling Motors
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
121 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.4 A | 6.7 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B36M650S268G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
Frame Size 184Tc, C-Face, 3 PH, TEFC,
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
J
Voltage Rating
230 V | 460 V
Feature: 184TC frame, 4-pole, 3-phase design with foot mounting and horizontal orientation. Business Impact: Ensures compatibility with common base plates and retrofit projects, reducing installation time and machining costs. Application: Ideal for conveyors and material handling lines where quick installation matters. Feature: TEFC enclosure. Business Impact: Offers robust protection against dust and moisture, extending service intervals in factory floors. Application: Harsh manufacturing environments and accelerated maintenance schedules. Feature: Integrated brake. Business Impact: Enables precise stop-and-hold functions for indexing, positioning, and load stabilization, lowering cycle times and improving accuracy. Application: Packaging lines and automated sorters requiring post-stop accuracy. Feature: IE3 efficiency and rated 89.50% efficiency. Business Impact: Delivers measurable energy savings over long duty cycles, reducing operating costs and heat generation. Application: Continuous-duty material handling with frequent start-stop cycles. Feature: 230/460 V, 3-phase, 60 Hz electrical data with 1.15 service factor. Business Impact: Improves compatibility with global plants and provides a margin for voltage variation and overload conditions. Application: Global deployments across multiple facilities with varying electrical infrastructure. Feature: 1.13 in shaft diameter and 1.0–inch class mechanical fit. Business Impact: Simplifies coupling selection and drive integration, minimizing custom machining. Application: Retrofitting existing equipment with standard drive components. Feature: Stocked at multiple warehouses (US, China, etc.). Business Impact: Reduces lead times and mitigates supply-chain risk, supporting just-in-time manufacturing. Application: Fast procurement for production lines needing rapid uptime.
Get a Quick Quote for a ABB 7BCEBM3615T-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEBM3615T-D?
Enquire Now
FAQs
This motor uses a 184TC frame with C‑Face mounting and a foot-mounted, horizontal orientation for easy retrofits. It supports direct-on-line starting and has a shaft diameter of 1.13 inches, which simplifies coupling to existing gearboxes or drives. Plan for alignment, base leveling, and ensuring adequate clearances for TEFC cooling in your application.
Yes. It is a 3‑phase motor rated for 60 Hz operation at 230 V with a 4‑pole design, delivering 1750 rpm. It also features a brake for indexing and load hold, making it well-suited for conveyors, sorters, and packaging lines that require reliable stop-and-hold capability.
The motor carries CSA, CSA EEV, and UR certification recognitions, with a NEMA design basis. It also aligns with IE3 efficiency standards, supporting compliance in industrial environments and helping reduce energy usage in continuous-duty operations.
IE3 efficiency for this 5 HP motor is listed at 89.50%, which translates to lower energy consumption over long run times and reduced heat generation. Combined with a 1.15 service factor and a robust bearing and lubrication design, you gain better overall efficiency, longer service intervals, and lower operating costs in continuous material-handling duties.
Stock is available in multiple warehouses, including locations in China and the United States (Alabama and Alaska). Lead time is listed as 0 day, indicating immediate availability for qualified orders and rapid fulfillment to support just-in-time manufacturing and downtime reduction.
