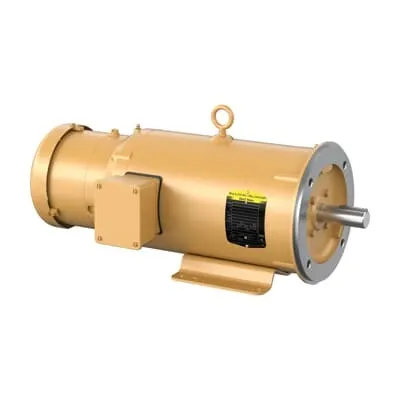

ABB 7BCEBM3615T-DI Brake - 5HP 230V TEFC (CSA/UR)
Part Number: 7BCEBM3615T-DI
Quick Summary
ABB 7BCEBM3615T-DI brake motor provides precise braking and holding for 3-phase drive systems in manufacturing lines. End users often confront drift, uncontrolled stops, and safety risks during changeovers, which can drive downtime and injury if not managed properly. This unit carries CSA, CSA EEV, and UR safety certifications, reinforcing compliance in critical industrial applications. With a TEFC enclosure, a 184TC frame, and dual voltage options of 230/460 V, it integrates seamlessly with existing Baldor-Reliance motors while delivering reliable performance and lower total cost of ownership. Designed for 5 HP at 60 Hz, it offers dependable braking for conveyors, pumps, and material handling equipment across harsh environments.
Product Information
Extended Description
7BCEBM3615T-DI ABB: Brake 5 Hp 230 V (CEBM3615T-DI)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184TC,3642M,TE
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
CEBM3615T-DI
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
CEBM3615T-DI
Gross Volume
8416.408 in³
Gross Weight
123 lb
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184TC,3642M,TEFC,F1
Made To Order
No
Medium Description
Brake, 5 HP, 1800 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEBM3615T-DI)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
78 %
Product Name
Brake
Product Net Depth / Length
27.438 in
Product Net Height
16.75 in
Product Net Weight
123 lb
Product Net Width
18.313 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.4 A | 6.7 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The brake-present design delivers immediate stopping and secure hold, reducing motor backspin and unplanned motion, which translates to safer operation and reduced scrap on packaging lines and conveyors. This directly supports improved throughput and safer changeovers in manufacturing environments. Feature → Application compatibility → The 184TC frame and C-face mounting enable straightforward retrofits into existing drive assemblies, minimizing downtime during installation and enabling quick scalability across lines. Feature → Dual voltage operation (230 V / 460 V) and TEFC enclosure provide flexibility and protection in diverse plant layouts, allowing seamless integration with current electrical infrastructure while preserving enclosure integrity in dusty or humid areas. Feature → High efficiency and performance (IE3-level, 5 HP, 60 Hz) support energy-conscious operation, lowering operating costs over the motor’s life. Feature → Robust mechanicals (1.13 in shaft, 123 lb net weight) enhance reliability and ease of coupling to driven hardware, reducing alignment issues and maintenance needs. Feature → Certifications (CSA, CSA EEV, UR) offer compliance confidence for regulated facilities, supporting audits and quality programs. Feature → Ready-to-ship stock across multiple warehouses (US, GB, SG, CN) minimizes lead times and accelerates project timelines, improving total cost of ownership and ROI in capital projects. Industry context: In belt-driven systems and material handling lines, these attributes translate to measurable uptime, predictable braking performance, and safer operation under high cycle rates.
Get a Quick Quote for a ABB 7BCEBM3615T-DI
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEBM3615T-DI?
Enquire Now
FAQs
Plan for horizontal, foot-mounted installation with a 184TC frame and C-face drive end flange. Ensure shaft alignment and compatible couplings, and verify 230/460 V, 60 Hz supply to support direct-on-line starting.
This unit operates 3-phase at 230/460 V with a rated speed of 1750 r/min and a synchronous speed of 1800 r/min. It supports dual voltage use and has a rated current of 13.4 A (line) / 6.7 A (holding/torque).
Yes. It is rated for continuous duty with a service factor of 1.15, TEFC enclosure for harsh environments, and a robust 5 HP output at 60 Hz, making it well-suited for continuous operation in material handling lines.
The unit carries CSA, CSA EEV, and UR listings, supporting compliance in safety-critical environments and facilitating audits in facilities that require recognized certifications.
Lead time is listed as 0 day, and the product is stocked at multiple warehouses (including US, GB, SG, and CN locations), enabling rapid fulfillment and quicker project ramp-up.
