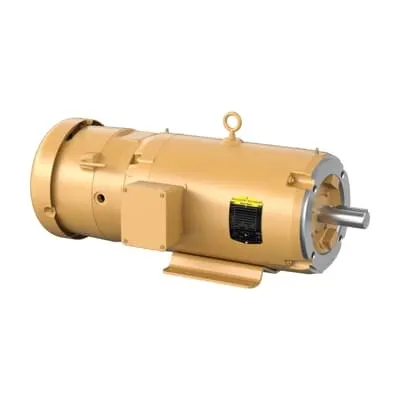

ABB 7BCEBM3710T Brake - Premium Efficiency TEFC
Part Number: 7BCEBM3710T
Quick Summary
ABB 7BCEBM3710T brake is a 7.5 HP braking device used to control heavy loads in three-phase motors. This helps prevent unexpected motor stalls and costly downtime. This unit carries CSA, CSA EEV, and UR certifications, aligning with NEMA design standards. With 60 Hz operation and a TEFC enclosure, it adapts to tough industrial environments while delivering energy efficiency. Designed for straightforward compatibility with Baldor-Reliance motors and frame 213TC, it supports fast, reliable integration into modern manufacturing lines, reducing project risk and total cost of ownership.
Product Information
Extended Description
7BCEBM3710T ABB: Brake 7.5 Hp 230 V (CEBM3710T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1770RPM,3PH,60HZ,213TC,3738M,
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6306
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
CEBM3710T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYH025: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
CEBM3710T
Gross Volume
13438.538 in³
Gross Weight
149 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
7.5HP,1770RPM,3PH,60HZ,213TC,3738M,TEFC
Made To Order
No
Medium Description
Brake, 7.5 HP, 1800 RPM, Frame Size 213Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEBM3710T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
80 %
Product Name
Brake
Product Net Depth / Length
40.938 in
Product Net Height
18.625 in
Product Net Weight
149 lb
Product Net Width
17.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
19 A | 9.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800 RPM, Frame Size 213Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure paired with a steel 213TC frame protects critical components from dust and moisture, reducing wear and maintenance costs. Business Impact: Longer motor life and fewer unscheduled repairs mean lower total cost of ownership. Application: Suitable for harsh factory floors and packaging lines where reliability matters. Feature: 60 Hz, 230/460 V supply with direct-on-line capability provides robust starting and braking performance. Business Impact: Improves line uptime and predictable stop-start sequencing in conveyors and hoists. Application: 3‑phase material handling systems operating at standard power distribution. Feature: C-face drive end flange and horizontal mounting with a foot-mounted base simplify retrofits and new installs. Business Impact: Faster installation and easier alignment with existing Baldor-Reliance motors, reducing commissioning time. Application: OEM integrations and plant-wide upgrades using 213TC frame motors. Feature: Premium Efficiency rating reduces energy losses during operation. Business Impact: Lower energy costs in continuous duty applications and better overall plant efficiency. Application: Heavy-duty braking in continuous process lines and packaging equipment. Feature: CSA, CSA EEV, and UR certifications provide compliance assurance for regulated industries. Business Impact: Supports audit readiness and reduces certification risk during procurement. Application: Safety-critical applications in manufacturing and distribution facilities.
Get a Quick Quote for a ABB 7BCEBM3710T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEBM3710T?
Enquire Now
FAQs
The unit is designed for 213TC frame motors and uses a C-Face drive end flange with horizontal mounting. It supports 60 Hz, 230/460 V three-phase systems and aligns with foot-mounted base configurations, making retrofits and new installs straightforward in Baldor-Reliance driven applications.
Ensure TEFC enclosure protection in typical factory environments and confirm ambient temperatures up to 40 °C. Verify mounting orientation as Horizontal with a correct C-Face interface, and confirm shaft diameter of 1.38 in for compatible coupling. Stock is available at multiple warehouses to minimize lead times.
Yes, it carries CSA, CSA EEV, and UR certifications, which support regulatory compliance in safety-critical settings. With a 1.15 service factor and direct-on-line starting, it delivers reliable braking performance essential for conveyors and other material-handling equipment.
The brake is certified by CSA, CSA EEV, and UR, ensuring electrical safety and equipment reliability. These certifications help with regulatory compliance, risk reduction, and easier customer acceptance in industries that require formal safety and performance attestations.
The rugged TEFC design and premium efficiency help minimize energy losses and wear, reducing maintenance cycles. Coupled with readily available stock and direct-on-line operation, this can shorten downtime, improve throughput, and deliver a favorable return on investment in continuous-duty applications.
