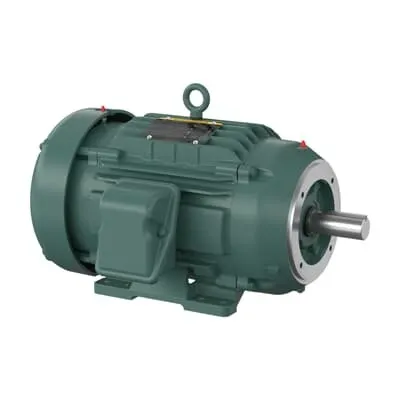

ABB CECP2334T-5 Severe Duty Motor - 575V TEFC
Part Number: 7BCECP2334T-5
Quick Summary
The ABB CECP2334T-5 Severe Duty Motor delivers 20 HP of reliable power for demanding industrial applications. In real-world facilities, uptime and energy efficiency are constant concerns, and equipment must withstand harsh conditions without frequent maintenance. This motor achieves that balance with a TEFC enclosure, 575 V 60 Hz rating, and a robust F insulation class to support long, uninterrupted runs. It carries essential certifications and design features that align with strict industry standards, helping you stay compliant while reducing lifecycle costs. For buyers, the combination of stock availability, straightforward installation, and proven performance translates into faster project timelines and lower total cost of ownership while meeting reliability objectives.
Product Information
Extended Description
7BCECP2334T-5 ABB: Severe Duty Motor 20 Hp 575 V (CECP2334T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,1770RPM,3PH,60HZ,256TC,0960M,T
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CECP2334T-5
Certification Agency
CCSA US | CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
09LYH180: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
CECP2334T-5
Gross Volume
15876 in³
Gross Weight
158.757 kg
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
20HP,1770RPM,3PH,60HZ,256TC,0960M,TEFC,F
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Severe Duty, 20 HP, 1800 RPM, Frame Size 256Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (CECP2334T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
83 %
Product Name
Severe Duty
Product Net Depth / Length
31.5 in
Product Net Height
21 in
Product Net Weight
158.757 kg
Product Net Width
24 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
19.2 A
Rated Efficiency
93 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
20 HP, 1800 RPM, Frame Size 256Tc, C-Face, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
575 V
Feature → Business Impact → Application: The CECP2334T-5 is a 20 HP, 575 V, 3-phase motor with premium efficiency and a 93% efficiency rating, reducing energy costs by delivering more output per kilowatt. This translates into measurable annual savings for conveyors, pumps, and material handling systems, especially in continuous-duty environments. Application: use in line-side conveyors or heavy pumps where energy efficiency directly lowers operating expenses. Feature → Business Impact → Application: TEFC enclosure and Insulation Class F provide rugged protection against dust, moisture, and heat, extending motor life in demanding plants. Application: ideal for dusty automotive, mining, or foundry environments with high ambient temperatures. Feature → Business Impact → Application: NEMA Design Code A, service factor 1.15, and direct-on-line starting offer reliable overload tolerance and simplified integration. Application: new builds and retrofits where immediate, robust startup is essential. Feature → Business Impact → Application: 256TC frame, foot-mounted configuration with a C-Face drive end flange simplifies mounting and belt- or pump-driven systems. Application: retrofit projects on existing footprints with minimal mechanical changes. Feature → Business Impact → Application: 3-phase, 60 Hz operation at 1770 r/min rated speed and 1800 r/min synchronous speed ensures predictable performance in continuous-duty duty cycles. Application: fans, pumps, and mixers in manufacturing lines requiring steady speeds. Feature → Business Impact → Application: stock availability at multiple warehouses (US, China, and others) with 0-day lead times reduces lead times and accelerates project delivery. Application: urgent replacements or expansions in process industries where downtime costs are high.
Get a Quick Quote for a ABB 7BCECP2334T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP2334T-5?
Enquire Now
FAQs
This motor uses a foot-mounted design with a 256TC frame and a C-Face drive end flange, supporting horizontal mounting in F1 position. Shaft diameter is 1.63 inches, and the unit is rated for a Direct On Line start. Plan for a solid base, align with standard 256TC mounting bolt patterns, and ensure space for service access and cooling.
The motor is a 3-phase, 575 V, 60 Hz unit designed for continuous duty with an output of 20 HP and a rated current of 19.2 A. It achieves 93% efficiency, a power factor around 0.83, and a service factor of 1.15, enabling reliable overload tolerance and energy-efficient operation in demanding loads such as conveyors and pumps.
Yes, the CECP2334T-5 carries certifications including CSA US, CSA EEV, and UR, with NEMA design considerations that support robustness in challenging environments. It also lists an Explosion Proof Group Class specification for Class I, Group A–D, indicating suitability for certain hazardous locations when used within approved configurations.
The product information indicates a zero-day lead time with stock across multiple warehouses, including US and international locations. This enables rapid fulfillment for replacements, expansions, or urgent retrofits, reducing downtime and accelerating project timelines.
With Premium Efficiency (NEMA 12-12) and a 93% efficiency rating, this motor lowers energy consumption for continuous-duty applications. The TEFC enclosure optimizes durability in harsh environments, reducing maintenance intervals, while 60 Hz operation and a 1770 r/min rated speed ensure stable process performance in conveyors and pumps.
