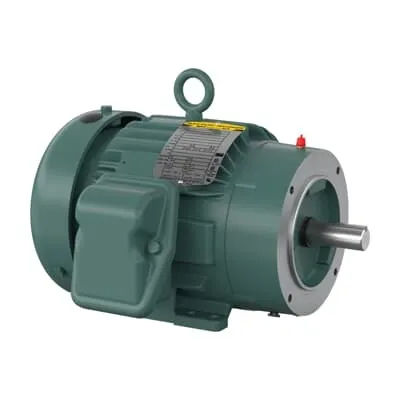

ABB 7BCECP3582T Severe Duty Motor - IE3 Premium Efficiency
Part Number: 7BCECP3582T
Quick Summary
Severe Duty Motor 1 HP delivers reliable 3-phase drive for heavy industrial applications like conveyors. Operators struggle with motor downtime due to heat, dust, and harsh environments; this motor's TEFC enclosure and 40 °C ambient rating help reduce failures. It carries IE3 premium efficiency standards and a NEMA design B with TEFC enclosure, plus CSA/UR certifications to support safety, energy savings, and regulatory compliance. With 208-230/460 V operation and a rugged 145TC frame, it fits standard industrial drives and reduces total cost of ownership.
Product Information
Extended Description
7BCECP3582T ABB: Severe Duty Motor 1 Hp 208 V (CECP3582T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1170RPM,3PH,60HZ,145TC,0526M,TE
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CECP3582T
Certification Agency
CCSA US | CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
05LYF144: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CECP3582T
Gross Volume
3496.049 in³
Gross Weight
75 lb
Horsepower Rating UL/CSA
1.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1HP,1170RPM,3PH,60HZ,145TC,0526M,TEFC,F1
Made To Order
No
Maximum Speed
1800 r/min
Medium Description
Severe Duty, 1 HP, 1200 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 208-230/460 V, 60 Hz (CECP3582T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
66 %
Product Name
Severe Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
75 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.4 A | 1.7 A
Rated Efficiency
82.50 %
Rated Speed
1160 r/min
Replaced Product ID (OLD)
7B05F144X907G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1 HP, 1200 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | Singapore, Singapore | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class
T4
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
208 V | 230 V | 460 V
The TEFC enclosure and 40 °C ambient rating provide robust protection against dust, moisture, and heat, reducing maintenance cycles and extending bearing life in tough factory floors. This translates to higher uptime for conveyors, pumps, and mixers, and lower total cost of ownership over the motor’s service life. The motor’s wide voltage range 208-230/460 V supports common North American and international electrical infrastructure, enabling flexible installation without expensive power conversion. Foot mounted with horizontal mounting (F1) and a 145TC frame simplifies retrofits and new installs, reducing labor time during commissioning. A NEMA Design B, 1 HP rating, and IE3 premium efficiency deliver energy savings of real value to production lines and utility bills. Direct On Line starting keeps control logic simple, minimizes soft-start equipment, and reduces hardware complexity. Rated at 60 Hz and a service factor of 1.15, it handles brief overloads with confidence while maintaining performance in continuous duty scenarios. Stocked at multiple warehouses worldwide, it supports rapid deployment and minimizes downtime for critical line operations.
Get a Quick Quote for a ABB 7BCECP3582T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP3582T?
Enquire Now
FAQs
CECP3582T is designed for horizontal mounting with a C-face drive end and foot-mounted configuration. It uses a 145TC frame and a shaft diameter of 0.88 inches, making it compatible with standard motor bases and metric/imperial fitting practices common in industrial installations.
The motor operates on three-phase power at 60 Hz with a voltage rating of 208/230/460 V. It supports Direct On Line starting for straightforward control with minimal auxiliary equipment, and has a rated current of 3.4 A (1P) / 1.7 A (2P) depending on voltage, suitable for typical factory drives.
Yes. It is a Severe Duty motor rated at 1 HP with a continuous duty profile, TEFC enclosure, 60-minute duty time consideration, and a 1.15 service factor. Its robust construction, NEMA Design B, and IE3 efficiency make it well-suited for conveyors, pumps, mixers, and other demanding line equipment.
The motor complies with IE3 premium efficiency standards and carries CSA/UR certifications, along with NEMA design considerations. It is built for safe use in North American facilities and global plants, meeting industry regulations while delivering reliable performance in harsh environments.
Energy savings from IE3 efficiency reduce operating costs over the motor’s life. The 1 HP rating with a 1.15 service factor supports reliable performance under brief overloads, lowering downtime. Its TEFC enclosure and F-class insulation contribute to low maintenance requirements in dusty or high-heat environments, while stock availability supports rapid deployment and warranty handling.
