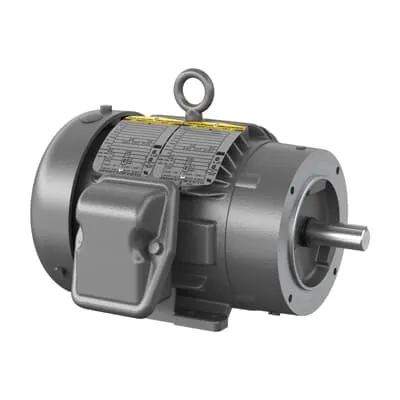

ABB 7BCECP3584T-5 Severe Duty Motor - 575V TEFC
Part Number: 7BCECP3584T-5
Quick Summary
Severe Duty Motor 7BCECP3584T-5 enables reliable, high-demand drives in industrial conveyors. This robust, 1.5 HP motor is designed for continuous operation in harsh manufacturing environments, reducing unplanned downtime and maintenance costs. With IE3 premium efficiency, TEFC enclosure, and CSA/UR certifications, it meets strict regulatory and energy goals while delivering steady torque at 60 Hz. For engineers and procurement teams, the model’s US origin, zero-day lead time stocking, and quick direct-on-line compatibility translate into faster project timelines and lower total cost of ownership. Typical applications include material handling, pumps, and fans where reliability and efficiency directly impact throughput and operating expenses.
Product Information
Extended Description
7BCECP3584T-5 ABB: Severe Duty Motor 1.5 Hp 575 V (CECP3584T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1768RPM,3PH,60HZ,143TC,0522M,
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CECP3584T-5
Certification Agency
CCSA US | CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
05LYF007: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CECP3584T-5
Gross Volume
3496.049 in³
Gross Weight
72 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1.5HP,1768RPM,3PH,60HZ,143TC,0522M,TEFC
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Severe Duty, 1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (CECP3584T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
76 %
Product Name
Severe Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
72 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.71 A
Rated Efficiency
86.50 %
Rated Speed
1768 r/min
Replaced Product ID (OLD)
7B05F007X559G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
575 V
Feature TEFC enclosure protects internal windings from dust and moisture, extending motor life in challenging environments. Business Impact Reduced maintenance cycles and longer service life, lowering total cost of ownership. Application Conveyor systems, pumps, and fans in mill and plant floors benefit from durable sealing and reduced downtime. Feature IE3 premium efficiency improves energy usage without sacrificing performance, delivering measurable energy cost savings across shifted loads. Application Continuous duty operations where reliability and efficiency are paramount, such as packaging lines and processing equipment. Feature 145TC frame with C-face mounting and foot mounting compatibility provides flexible retrofits and straightforward installation. Business Impact Faster installations and retrofits reduce project timelines and downtime. Application Retrofit projects and new builds with standard frame sizes. Feature 0.88 in shaft diameter and 4P design supports robust torque delivery for light to moderate load profiles. Business Impact Consistent performance with a known torque curve, reducing vibration and wear on belts and gearboxes. Application OEM replacement and aftermarket service for aging lines. Feature Direct On Line starting simplifies integration with existing 3-phase power infrastructure, minimizing control complexity. Business Impact Lower startup equipment costs and simplified electrical design. Application Immediate commissioning for new lines and rapid maintenance turnarounds.
Get a Quick Quote for a ABB 7BCECP3584T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP3584T-5?
Enquire Now
FAQs
The motor is foot mounted with a C-face drive end flange, frame size 145TC, and a shaft diameter of 0.88 inches. This combination supports straightforward retrofits into existing bases and gear systems, reducing alignment time and ensuring compatibility with common abb Baldor frame configurations.
This is a 3-phase, 575 V, 60 Hz motor rated at 1.5 HP with a rated speed of 1768 r/min. It features IE3 premium efficiency and a power factor around 0.76, with a rated current of approximately 1.71 A. The insulation class is F, and the motor uses a TEFC enclosure for rugged environments.
Yes. It is designed for continuous duty with a TEFC enclosure, ambient temperature rating around 40 C, and a Class F insulation system. The 6205 ball bearings support long service life and reliable operation in demanding conveyors, pumps, and fans commonly found in manufacturing plants.
The motor carries multiple certifications including CSA US, CSA EEV, and UR, with country-of-origin listed as United States. This combination supports regulatory compliance in the US and aligns with common safety and performance standards for industrial motors.
Lead time is listed as 0 day with stock availability across designated warehouses (including US and international sites). This enables rapid deployment for both replacements and new installations, minimizing downtime and accelerating project timelines.
