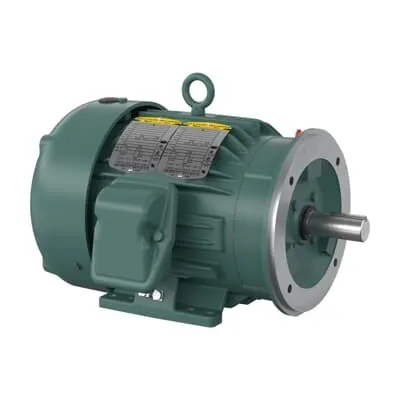

ABB 7BCECP3661T Severe Duty Motor - IE3 3HP 208V TEFC
Part Number: 7BCECP3661T
Quick Summary
ABB 7BCECP3661T Severe Duty Motor powers demanding industrial processes with reliable, high-efficiency performance for continuous operation in manufacturing lines. Downtime and energy waste are common pain points that erode productivity and margins; this motor is designed to reduce both through premium efficiency and robust build. It carries IE3 Premium Efficiency, a TEFC enclosure, and CSA US / CSA EEV / UR safety certifications, helping meet regulatory requirements and minimize heat, noise, and maintenance concerns. With a 3 HP rating at 208-230/460 V in a 60 Hz, 4-pole configuration, it delivers predictable speed and torque. Designed for installation in standard 182TC frames and C-Face mounting, it aligns with existing automation systems, spare-part ecosystems, and long service life.
Product Information
Extended Description
7BCECP3661T ABB: Severe Duty Motor 3 Hp 208 V (CECP3661T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1755RPM,3PH,60HZ,182TC,0632M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CECP3661T
Certification Agency
CCSA US | CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
06LYH482: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
CECP3661T
Gross Volume
5274.135 in³
Gross Weight
114 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,1755RPM,3PH,60HZ,182TC,0632M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Severe Duty, 3 HP, 1800 RPM, Frame Size 182Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 208-230/460 V, 60 Hz (CECP3661T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
77 %
Product Name
Severe Duty
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
114 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.6 A | 8.2 A | 4.1 A
Rated Efficiency
89.50 %
Rated Speed
1755 r/min
Replaced Product ID (OLD)
7B06H482X181G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 182Tc, C-Face, 3 PH, TEFC, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
J
Voltage Rating
208 V | 230 V | 460 V
Premium efficiency drives measurable energy savings, reducing operating costs over the motor’s service life while maintaining reliable torque at full load. In practical terms, the 3 HP, 4-pole design at 60 Hz delivers consistent speed on conveyors, pumps, and processing lines with lower heat generation. The rugged TEFC enclosure and 182TC frame support straightforward installation and long-term durability in harsh environments, minimizing maintenance intervals and downtime. Regreasable lubrication, combined with a 1.15 service factor, enhances reliability under continuous-duty cycles common in manufacturing and packaging lines. Stocked availability at multiple warehouses and a zero-day lead time improves project ramp and maintenance scheduling, while CSA US, CSA EEV, and UR certifications help ensure regulatory compliance and safer operation. The motor’s footprint, mounting options, and shaft dimensions are designed to align with standard automation components, reducing integration risk.
Get a Quick Quote for a ABB 7BCECP3661T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP3661T?
Enquire Now
FAQs
Yes. The motor uses a 182TC frame with C-face mounting and is designed for horizontal, foot-mounted installation. It operates on three-phase power at 60 Hz and supports a voltage range of 208-230/460 V, aligning with common North American electrical distributions. Check shaft diameter (1.13 in) and mounting pattern to ensure direct compatibility with the driven equipment.
This is a 3 HP, 4-pole, three-phase motor with a rated speed of 1755 r/min and a maximum speed of 2700 r/min. It operates at 60 Hz with a voltage range of 208-230/460 V and a service factor of 1.15. The current draw is 8.6 A / 8.2 A / 4.1 A depending on connection, and it uses a TEFC enclosure with IE3 efficiency.
The Severe Duty design makes it ideal for continuous-duty tasks like conveyors, pumps, mixers, and processing equipment in manufacturing environments. With its robust frame, reliable speed control, and energy efficiency, it helps reduce energy costs and downtime in demanding production lines while delivering consistent torque and reliability under heavy loads.
The motor carries safety and efficiency certifications including IE3 Premium Efficiency, a TEFC enclosure, and safety approvals from CSA US, CSA EEV, and UR (UL Recognized). These certifications support regulatory compliance in North American facilities and help ensure safer operation in industrial environments.
Leverage regreasable bearings and a 1.15 service factor to extend service life in continuous-duty applications. Install on a stable base with proper alignment to minimize vibration, and use standard 182TC mounting to simplify spares and replacements. The motor’s stock availability and zero-day lead-time also shorten project timelines and maintenance windows, boosting overall return on investment.
