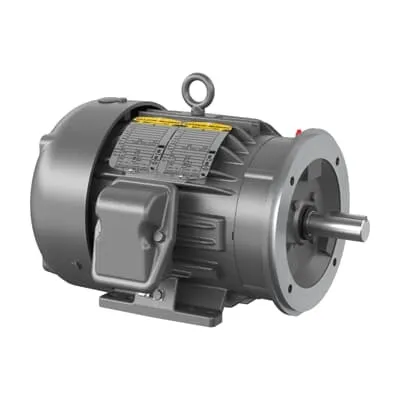

ABB 7BCECP3661T-5 Severe Duty Motor - IE3
Part Number: 7BCECP3661T-5
Quick Summary
ABB 7BCECP3661T-5 Severe Duty Motor delivers reliable 3 HP performance for demanding industrial conveyors and pumps. Operators often face downtime and rising energy costs when motors struggle in harsh environments. It meets IE3 Premium Efficiency standards, features a TEFC enclosure, and carries CSA/UR certifications for North American compliance. Designed for quick integration with 182TC frames and 575 V three-phase systems, it supports easy retrofits and predictable performance. Together with a 1.15 service factor and rugged build, it reduces lifecycle costs while maintaining steady output in continuous-duty operations. This combination of efficiency and durability translates to lower energy bills and fewer unscheduled stops across manufacturing lines.
Product Information
Extended Description
7BCECP3661T-5 ABB: Severe Duty Motor 3 Hp 575 V (CECP3661T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,182TC,0628M,TE
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CECP3661T-5
Certification Agency
CCSA US | CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
Undefined
Global Commercial Alias
CECP3661T-5
Gross Volume
5031 in³
Gross Weight
111 lb
Insulation Class
F
Invoice Description
3HP,1760RPM,3PH,60HZ,182TC,0628M,TEFC,F1
Made To Order
No
Maximum Speed
6000 r/min
Medium Description
Frame Size 182Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, (CECP3661T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
182TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
80 %
Product Name
LV Severe Duty Motors
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
111 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.2 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
Frame Size 182Tc, C-Face, 3 PH, TEFC,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3C
Type of Duty
Continuous
Voltage Rating
575 V
Frame size and mounting simplify replacement projects. The 182TC frame with C-Face drive end flange aligns with common motor bases, reducing integration time and misalignment during installation, enabling faster startup on conveyors and pumps. IE3 Premium Efficiency minimizes energy draw on 575 V three-phase supply, which translates to lower operating costs across shifts. TEFC enclosure provides protection against dust, moisture, and contaminants on harsh factory floors, helping maintain winding integrity and uptime in continuous-duty applications. The 4-pole design delivers 1760 r/min nominal with a synchronous speed of 1800 r/min, while a rated current of 3.2 A and a service factor of 1.15 provide reliable torque margins for loading and startup transients in material handling. Bearings and insulation: a 6206 ball bearing arrangement and insulation class F support durability and temperature resilience up to 40 °C ambient, reducing maintenance cycles. The motor is designed for direct-on-line starting, simplifying control schemes and improving response times in automation sequences. Stocked at multiple warehouses with 0 day lead time options, enabling rapid procurement and deployment to minimize downtime on the line.
Get a Quick Quote for a ABB 7BCECP3661T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP3661T-5?
Enquire Now
FAQs
This motor uses a 182TC frame with C-Face mounting and is designed for 575 V three-phase power. It supports direct-on-line starting and is compatible with standard bases and drives used in conveyors, pumps, and fans across North American facilities.
The motor is IE3 Premium Efficient, delivering higher efficiency at full load. This reduces energy consumption on 575 V, three-phase systems, which translates to lower operating costs over multiple shifts and reduced heat generation in the gearbox-driven drive train.
Yes. The ABB CECP3661T-5 is configured for Direct On Line starting, providing straightforward control integration with existing PLCs and motor starters, while the 1.15 service factor helps cushion transient torque during startup in continuous-duty applications.
This motor carries CSA US, CSA EEV, and UR certifications, with additional designation under CCSA US. These certifications support regulatory compliance for electrical safety and energy efficiency in US and Canadian facilities.
With IE3 efficiency, TEFC enclosure, and a rugged 6206 bearing setup, maintenance intervals are extended and downtime is reduced. A 1.15 service factor adds torque reserve, supporting higher uptime and favorable total cost of ownership in continuous-process lines.
