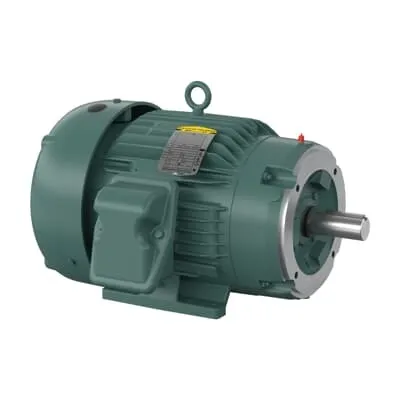

ABB 7BCECP3771T Severe Duty Motor - CSA/UR Certified
Part Number: 7BCECP3771T
Quick Summary
ABB 7BCECP3771T is a severe duty motor designed to drive mission-critical equipment in demanding industrial environments. Engineers often face downtime and inconsistent performance in continuous operation, making reliability essential. It carries CSA and UR safety certifications, along with CSA EEV and NEMA standards, supporting regulatory compliance and safer operation. With 10 HP at 60 Hz and a robust TEFC enclosure, this motor delivers dependable power, while installation flexibility and efficiency help reduce lifecycle costs and simplify procurement for industrial facilities.
Product Information
Extended Description
7BCECP3771T ABB: Severe Duty Motor 10 Hp 230 V (CECP3771T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,3500RPM,3PH,60HZ,215TC,0742M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6307 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CECP3771T
Certification Agency
CCSA US | CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
07LYK373: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
CECP3771T
Gross Volume
9144.346 in³
Gross Weight
203 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
10HP,3500RPM,3PH,60HZ,215TC,0742M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
Severe Duty, 10 HP, 3600 RPM, Frame Size 215Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CECP3771T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
90 %
Product Name
Severe Duty
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
203 lb
Product Net Width
18.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
22 A | 11 A
Rated Efficiency
92.40 %
Rated Speed
3500 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
10 HP, 3600 RPM, Frame Size 215Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature: 10 HP, 3500 r/min, 3-phase, 60 Hz provides strong, consistent torque for drives like conveyors and pumps. Benefit: Improved uptime and predictable process control with lower risk of underperformance in demanding loads. Application: Ideal for continuous-duty lines in material handling and processing. Feature: TEFC enclosure protects windings in dirty, damp, or washdown environments. Benefit: Reduced maintenance needs and longer service life in harsh plants. Application: Food, beverage, and chemical processing facilities with stringent cleanliness standards. Feature: Frame 215TC with foot-mounted and C-face drive-end flange options. Benefit: Easy retrofits and straightforward mounting, minimizing installation time and misalignment risk. Application: Retrofit projects and new builds across packaged systems and skid-mounted equipment. Feature: Dual voltage 230/460 V and 60 Hz operation. Benefit: Wiring flexibility and simplified inventory, enabling rapid deployment across global sites. Application: US and international facilities with varying electrical infrastructure. Feature: Service Factor 1.15 and Premium Efficiency (NEMA 12-12). Benefit: Higher overload tolerance and energy savings over the motor’s life. Application: Heavy-load conveyors, pumps, and fans where efficiency directly impacts operating costs. Feature: Insulation Class F and Temperature Class T3C. Benefit: Enhanced thermal tolerance and longer insulation life in hot environments. Application: High-temperature plants and outdoor installations where ambient conditions are challenging.
Get a Quick Quote for a ABB 7BCECP3771T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP3771T?
Enquire Now
FAQs
The motor uses a 215TC frame and offers foot-mounted installation with a C-face drive-end flange, providing flexible mounting options. This supports straightforward alignment with existing conveyors, pumps, or fans and simplifies retrofits. Proper mounting reduces vibration, extends bearing life, and improves overall drive efficiency, especially in compact or retrofit installations.
The 7BCECP3771T operates at 230/460 V in a 3-phase, 60 Hz system, with a rated current around 22 A at full load. Its dual-voltage capability simplifies stocking and field wiring, enabling quick scalability across facilities with differing electrical infrastructures while maintaining consistent performance and torque characteristics.
Yes. This motor is designed for continuous duty with a service factor of 1.15, delivering reliable torque under sustained loads. Its 10 HP rating, 3500 r/min nominal speed, and TEFC enclosure support long-running conveyor, pump, or fan applications where uptime, predictable performance, and reduced maintenance are critical.
The ABB 7BCECP3771T carries CSA and UR safety certifications and aligns with CSA EEV and NEMA standards. These approvals support regulatory compliance for North American installations and help ensure safe operation in industrial environments, particularly where electrical safety and performance criteria drive procurement decisions.
Lubrication is listed as regreasable, aiding bearing longevity and reducing unscheduled downtime. With high efficiency (92.4% in the data) and a robust TEFC design, energy costs are minimized, delivering a favorable total cost of ownership. Plan for regular bearing checks (bearing type 6307 ball) and periodic inspections to sustain performance in long-running industrial lines.
