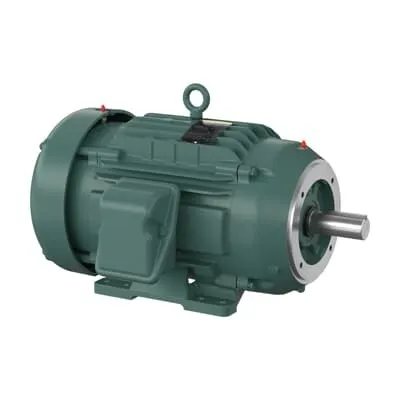

ABB 7BCECP4106T Severe Duty Motor - 20 HP (NEMA Premium)
Part Number: 7BCECP4106T
Quick Summary
Severe Duty Motor from ABB 7BCECP4106T delivers robust, continuous power for demanding industrial drives and process equipment. Maintenance downtime and energy waste are costly; this motor minimizes both with premium efficiency and a TEFC enclosure. Key certifications include NEMA Premium efficiency, CSA EEV, and UR listing, supporting reliable labeling and regulatory compliance. Designed for 3-phase, 60 Hz operation in a 256TC frame with C-face mounting, it provides installation flexibility across global plants and reduced life-cycle costs.
Product Information
Extended Description
7BCECP4106T ABB: Severe Duty Motor 20 Hp 230 V (CECP4106T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,3540RPM,3PH,60HZ,256TC,0944M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CECP4106T
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
09LYJ540: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
CECP4106T
Gross Volume
14448.906 in³
Gross Weight
151.046 kg
Horsepower Rating UL/CSA
20.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
20HP,3540RPM,3PH,60HZ,256TC,0944M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
Severe Duty, 20 HP, 3600 RPM, Frame Size 256Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CECP4106T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
92 %
Product Name
Severe Duty
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
151.046 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
44 A | 22 A
Rated Efficiency
91.70 %
Rated Speed
3540 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
20 HP, 3600 RPM, Frame Size 256Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
H
Voltage Rating
230 V | 460 V
Premium efficiency and rugged TEFC design reduce energy usage and operating costs while delivering reliable performance in harsh industrial environments. This translates to measurable business impact, including lower energy bills and longer motor life in continuous duty applications such as pumps, fans, and conveyors. The dual voltage capability, 230 V or 460 V, and 60 Hz compatibility enable quick deployment across international facilities, reducing wiring complexity and inventory needs while maintaining stringent performance standards. The C-face mounting and foot-mounted base type simplify installation and retrofit projects, enabling fast swaps and minimal downtime during plant upgrades. A 256TC frame and 1.63 in shaft diameter support up to 20 HP with a 1.15 service factor, providing a healthy torque reserve for start-up surges and transient loads. Direct on line starting eliminates costly soft-start hardware in many drives, cutting upfront capex and maintenance, while the 60-minute duty time supports continuous operation with predictable thermal behavior. Regreasable bearings (6309, Ball) improve maintenance intervals and reduce unscheduled downtime in conveyor and mixer lines, reinforcing uptime targets in manufacturing environments.
Get a Quick Quote for a ABB 7BCECP4106T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP4106T?
Enquire Now
FAQs
For reliable mounting, use the 256TC frame with C-face mounting or foot-mounted base as specified. Ensure horizontal orientation with the F1 mounting position, check shaft alignment (1.63 in diameter), and secure the unit to a rigid base to handle startup torque. Confirm compatibility with 230/460 V power and direct-on-line starting to minimize drive hardware needs.
Yes, this is a dual-voltage 230/460 V, 60 Hz motor designed for 3-phase operation. Rated current values are 44 A at the higher voltage and 22 A at the lower voltage, allowing flexible deployment across equipment configurations while maintaining full 20 HP performance and a 1.15 service factor.
The motor carries multiple certifications, including NEMA Premium efficiency, CSA EEV, and UR listings, with CSA US reporting. These approvals support regulatory compliance, energy labeling, and safe operation in mixed-use industrial environments.
The product is designed for continuous duty with a 60-minute duty cycle and a service factor of 1.15, providing torque reserve for startup and transient loads. Its TEFC enclosure and robust bearings (6309, Ball) enhance reliability in demanding applications such as pumps, grinders, and conveyors.
Plan for periodic bearing inspection and lubrication due to regreasable bearings, and leverage the premium efficiency rating to realize energy savings over the motor’s lifecycle. The direct-on-line starting reduces drive components and maintenance costs, while the unit’s stock availability (multiple warehouses) supports rapid project timelines and lower total cost of ownership.
