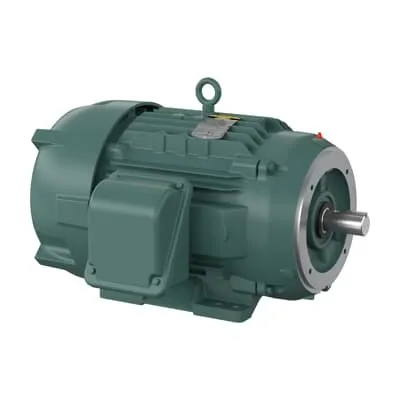

ABB 7BCECP4108T Severe Duty Motor - 30HP TEFC
Part Number: 7BCECP4108T
Quick Summary
ABB 7BCECP4108T Severe Duty Motor delivers reliable, high-performance driving for continuous-duty conveyors, pumps, and compressors. In many facilities, motor failures and unplanned downtime erode productivity and inflate maintenance costs. This model aligns with NEMA Premium Efficiency standards and CSA/UR certifications, delivering energy savings and robust reliability. The TEFC enclosure and 286T frame design support flexible installation across demanding environments, while a 60 Hz, 230/460 V, 3-phase configuration ensures broad compatibility and reduced spare-part needs. For OEMs and maintenance teams, it translates to lower lifecycle costs, simplified service, and dependable uptime in rugged production lines.
Product Information
Extended Description
7BCECP4108T ABB: Severe Duty Motor 30 Hp 230 V (CECP4108T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,3525RPM,3PH,60HZ,286TSC,1048M,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CECP4108T
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
10LYH406: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
CECP4108T
Gross Volume
14448.906 in³
Gross Weight
454 lb
Horsepower Rating UL/CSA
30.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
30HP,3525RPM,3PH,60HZ,286TSC,1048M,TEFC
Lubrication
Regreasable
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
Severe Duty, 30 HP, 3600 RPM, Frame Size 286Tsc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CECP4108T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286TSC
Motor Frame Suffix
TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
90 %
Product Name
Severe Duty
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
454 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
68 A | 34 A
Rated Efficiency
91.70 %
Rated Speed
3525 r/min
Replaced Product ID (OLD)
7B10H406Z501G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
30 HP, 3600 RPM, Frame Size 286Tsc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: Premium efficiency (91.70%) reduces energy consumption and operating costs on continuous-duty lines, delivering measurable lifetime savings for conveyors and pumps in manufacturing environments. This aligns with energy-performance mandates while maintaining performance at full load, improving total cost of ownership. Feature → Business Impact → Application: TEFC enclosure provides superior protection against dust, moisture, and contamination, reducing insulation degradation and extending motor life in harsh plant floors and outdoor installations. Application: suitable for muddy workshops, dusty facilities, and open factories where reliable performance is critical. Feature → Business Impact → Application: 286TSC frame with C-face mounting and foot-mounted configuration offers versatile mounting options, enabling quick retrofits and straightforward installation in existing systems. Application: retrofits, OEM equipment and modular packaging lines. Feature → Business Impact → Application: Direct-on-line starting plus 3-phase design supports robust torque at startup, minimizing downtime during line changes and startup cycles. Application: material handling, pumps, and fans requiring immediate full-load operation. Feature → Business Impact → Application: Regreasable bearings and 60-minute duty rating for continuous operation support predictable maintenance schedules and extended service life. Application: large production lines with high run times and limited maintenance windows. Feature → Business Impact → Application: 30 HP at 3600/3525 r/min with 60 Hz and dual voltage 230/460 V provides precise speed control for applications requiring stable motor speed and torque characteristics. Application: conveyors, mixers, compressors with defined speed demands. Feature → Business Impact → Application: NEMA Design B and F insulation with 1.63 in shaft diameter ensures compatibility with standard belts and couplings, reducing integration risk. Application: OEM assemblies and aftermarket replacements. Feature → Business Impact → Application: 454 lb weight and compact 31 in net length improve transportability and installation in constrained spaces. Application: retrofit projects, compact plant footprints, and modular machinery.
Get a Quick Quote for a ABB 7BCECP4108T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP4108T?
Enquire Now
FAQs
This motor is designed for foot mounting or horizontal C-face installations with a 286TSC frame. It supports 230/460 V at 60 Hz and 3-phase power, Direct On Line starting, and a TEFC enclosure. Ensure alignment with the shaft diameter of 1.63 inches, verify mounting orientation (Horizontal, F1), and use appropriate couplings or belts to match your drive system.
Key specs include 30 HP output, rated speed 3525 r/min (with synchronous 3600 r/min), current approximately 68 A / 34 A, voltage 230 V or 460 V, and 3 phases at 60 Hz. It uses Premium efficiency with an insulation class F and design B, suitable for continuous duty in demanding environments.
Yes. The 30 HP, 60 Hz, TEFC, and 286T frame are ideal for continuous-duty conveyors, pumps, and compressors. Its robust enclosure and high efficiency reduce energy use, while the C-face/foot mount enables flexible installation in retrofit projects or new builds across industrial facilities.
The motor features NEMA Premium Efficiency, CSA EEV, and UR certification marks, supporting regulatory compliance and energy performance requirements. These certifications help meet audit demands and ensure reliability in regulated industries.
Opt for regular bearing checks and bearing lubrication per Regreasable design, monitor for temperature rise within the 40 °C ambient rating, and schedule routine inspections of the TEFC enclosure seals. These practices help extend motor life, reduce unplanned downtime, and maximize return on investment through lower maintenance costs.
