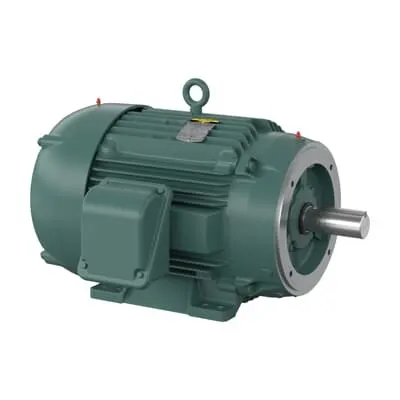

ABB 7BCECP4117T Severe Duty Motor - NEMA Premium
Part Number: 7BCECP4117T
Quick Summary
ABB 7BCECP4117T Severe Duty Motor delivers 30 hp drive for demanding industrial applications like conveyors. Many buyers struggle with reliability under harsh service, high inrush, and maintenance costs that cut uptime. This unit is backed by NEMA Premium efficiency, CSA EEV, and UR certifications, ensuring compliance and lower operating temperatures across 60 Hz systems. Its TEFC enclosure, 326TC frame, and C-Face mounting simplify installation and retrofit in existing lines. With a 230/460 V dual-voltage rating and 1180 rpm nominal speed, it supports energy-conscious operations while meeting continuous-duty demands. Compatible with standard ABB mounting interfaces and common drive trains, it reduces spare-part complexity and improves lifecycle cost.
Product Information
Extended Description
7BCECP4117T ABB: Severe Duty Motor 30 Hp 230 V (CECP4117T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,1180RPM,3PH,60HZ,326TC,1264M,T
Ambient Temperature
40 °C
Bearing
6312, Ball
Bearing NDE
6312
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CECP4117T
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
12LYG214: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
CECP4117T
Gross Volume
18748.226 in³
Gross Weight
540 lb
Horsepower Rating UL/CSA
30.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
30HP,1180RPM,3PH,60HZ,326TC,1264M,TEFC,F
Made To Order
No
Maximum Speed
1800 r/min
Medium Description
Severe Duty, 30 HP, 1200 RPM, Frame Size 326Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CECP4117T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
78 %
Product Name
Severe Duty
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
540 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
78 A | 39 A
Rated Efficiency
93 %
Rated Speed
1180 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.13 in
Short Description
30 HP, 1200 RPM, Frame Size 326Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class
T3
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The dual voltage capability of 230/460 V at 60 Hz with a nominal speed of 1180 rpm provides flexibility for control systems and drives, reducing spare parts and enabling smoother retrofits across conveyors, pumps, and fans. This helps lower installation time and supports energy-efficient operation in varying plant electrical environments. Application: retrofits, new line integrations, and controlled-load equipment. Feature → Business Impact → Application: TEFC enclosure with a 326TC frame and C-Face mounting protects the motor in dusty or damp environments while simplifying alignment and mounting. Business impact includes longer service life, less downtime, and easier on-site maintenance. Application: manufacturing floors, material handling, and washdown-adjacent spaces. Feature → Business Impact → Application: Premium efficiency with 93% rated efficiency and 1.15 service factor reduces energy losses and cooling needs, delivering lower operating costs over the motor’s life. Application: continuous duty drives such as pumps and fans in process lines. Feature → Business Impact → Application: NEMA Premium, CSA EEV, and UR certifications provide regulatory alignment and warranty confidence across North American installations, reducing compliance risk. Application: international plants and multi-site operations seeking standardization. Feature → Business Impact → Application: 30 Hp output with 1180 r/min speed and 2.13 in shaft diameter supports robust coupling with standard belts and gear trains, ensuring reliable power transfer. Application: line conveyors, mixers, and agitators in heavy-duty processes.
Get a Quick Quote for a ABB 7BCECP4117T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP4117T?
Enquire Now
FAQs
The 7BCECP4117T is a 3‑phase motor designed for straightforward retrofit with common drive trains and ABB mounting interfaces. It uses the standard 326TC footprint and TEFC enclosure, with a horizontal foot-mounted configuration and C-Face mounting options. It supports direct-on-line starting, reducing integration complexity and minimizing downtime during replacement or upgrade projects.
Key specifications include 30 horsepower, dual voltage 230/460 V, 60 Hz, 3 phases, and a nominal speed of 1180 rpm. Frame size is 326TC with a TEFC enclosure. Rated current is approximately 78 A/39 A (I_n), efficiency around 93%, and a service factor of 1.15. This combination supports reliable operation in continuous-duty applications.
Yes. The motor is designed for continuous duty with a 60-minute duty time and a 40 °C ambient rating, housed in a TEFC enclosure to resist dust and moisture. Its robust construction and 326TC frame with foot mounting are intended for demanding manufacturing lines, conveyors, and pumping stations where uptime and reliability are critical.
This ABB motor carries NEMA Premium efficiency, CSA EEV, and UR listings. NEMA Premium indicates high efficiency and energy savings, CSA EEV confirms electrical safety and performance compliance in North America, and UR listing denotes recognized-component approval for safety and reliability. These certifications support regulatory compliance and warranty protection across applicable markets.
Upgrading to the 7BCECP4117T yields improved energy efficiency (93% rated efficiency) and reduced cooling load, translating into ongoing energy cost savings. The high service factor of 1.15 supports reliable performance under peak loads, while TEFC protection and a robust footprint minimize maintenance and downtime. Over the motor’s life, these factors combine to lower total cost of ownership.
