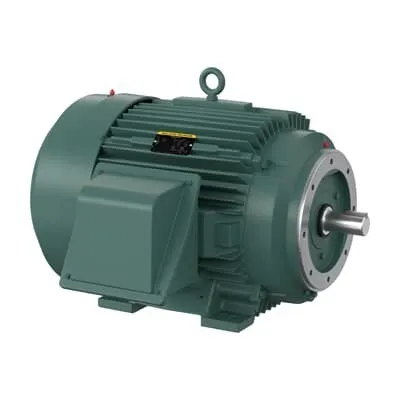

ABB 7BCECP4310T Severe Duty Motor - 60 HP, 460 V, TEFC, 3PH – CSA EEV / UR Certified
Part Number: 7BCECP4310T
Quick Summary
Severe Duty Motor 7BCECP4310T delivers robust, high-performance drive for heavy-duty manufacturing and process equipment. In demanding environments, downtime and energy waste erode productivity and inflate maintenance costs. The unit carries CSA EEV and UR certifications, with a NEMA-compliant TEFC enclosure and rugged construction designed for fire-safe operation in Class I, Groups A-D locations. This combination of premium efficiency and rugged build translates to lower life-cycle costs, simpler maintenance, and greater plant uptime, while supporting 3-phase, 460 V operation at 60 Hz and aligning with modern energy-management initiatives.
Product Information
Extended Description
7BCECP4310T ABB: Severe Duty Motor 60 Hp 460 V (CECP4310T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,3560RPM,3PH,60HZ,364TSC,A36056
Ambient Temperature
40 °C
Bearing
6313 | Ball
Bearing NDE
6313 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CECP4310T
Certification Agency
CCSA US | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
A36C-0000000060
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
364
Frequency (f)
60 Hz
Global Commercial Alias
CECP4310T
Gross Volume
33833.008 in³
Gross Weight
396.44 kg
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
60HP,3560RPM,3PH,60HZ,364TSC,A36056M,TEF
Made To Order
No
Maximum Speed
4500 r/min
Medium Description
Severe Duty, 60 HP, 3600 RPM, Frame Size 364Tsc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CECP4310T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
364TSC
Motor Frame Suffix
TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
60 Hp
Power Factor
91 %
Product Name
Severe Duty
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
396.44 kg
Product Net Width
32.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
130 A | 65.1 A
Rated Efficiency
93.60 %
Rated Speed
3560 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Short Description
60 HP, 3600 RPM, Frame Size 364Tsc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
460 V
60 HP output at 460 V three-phase provides strong starting torque for demanding loads, reducing motor stress and extending bearing life. This translates to lower maintenance costs and fewer unplanned outages in process lines and material handling systems. The 364TSC frame with foot-mounted base and C-face mounting offers straightforward retrofit and compatibility with existing installations, enabling quick spare-parts replacement and simpler alignment for conveyors and pumps. TEFC enclosure and insulation class F protect the motor in harsh environments, resisting dust, moisture, and temperature fluctuations, which results in longer service intervals and consistent performance in manufacturing plants. Premium efficiency at 93.60% reduces energy consumption during continuous operation, supporting sustainability goals and lowering operating costs. Direct On Line starting and 60 Hz operation suit standard industrial power systems, delivering reliable torque with minimal control complexity, while the NEMA design B profile provides predictable performance and broad drive-system compatibility. Stock is held across multiple warehouses with 0 day lead time, enabling rapid procurement and fast project startup for critical equipment like pumps, fans, and conveyors.
Get a Quick Quote for a ABB 7BCECP4310T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP4310T?
Enquire Now
FAQs
The 7BCECP4310T uses a 364TSC frame with a foot-mounted base and C-face mounting, aligning well with existing 364TSC installations. Installation is streamlined by standard mounting dimensions, familiar shaft end dimensions, and common fastener patterns, allowing quick alignment and minimal downtime during retrofits.
Key specs include 60 HP output at 460 V, 3-phase, 60 Hz, rated speed 3560 r/min with a synchronous speed of 3600 r/min, TEFC enclosure, and NEMA design B. It is well-suited for continuous-duty applications such as pumps, fans, and conveyors in heavy manufacturing and processing facilities.
Yes. The motor carries CSA EEV and UR recognition, with NEMA design alignment and Class I explosion-protection considerations supported by data, ensuring suitability for safety-conscious industrial sites and compliance with regional standards.
Lead time is listed as 0 day, and the product is stocked at multiple warehouses (e.g., US and international facilities), enabling rapid procurement and fast deployment for urgent projects.
Maintenance benefits include a robust 6313 ball-bearing system, insulation class F for thermal resilience, and a TEFC enclosure that reduces dust and moisture ingress. Combined with premium efficiency (93.60%) and direct-on-line starting, this delivers lower lifecycle costs, reduced energy consumption, and higher plant uptime.
