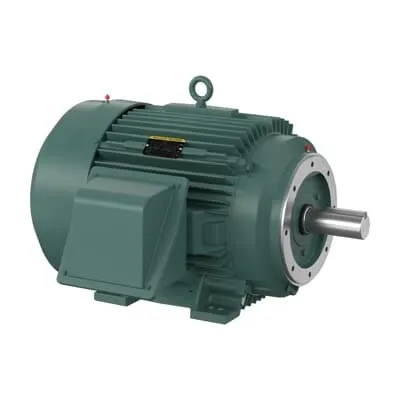

ABB CECP4316T Severe Duty Motor - CSA/UR Certified
Part Number: 7BCECP4316T
Quick Summary
ABB CECP4316T Severe Duty Motor is a rugged three-phase motor designed for demanding applications in conveyors and processing lines. In production environments, unexpected downtime and overheating erode uptime and raise energy costs. With Premium Efficiency, IP55 TEFC enclosure, and CSA US / UR certifications, the motor meets strict industrial standards and regulatory requirements. This combination delivers reliable performance, compatibility with common Baldor-Reliance components and standard 365TC footprints, helping you lower maintenance and total cost of ownership. Designed for plant floors and assembly lines, it supports efficient, scalable automation while fitting into existing motor fleets.
Product Information
Extended Description
7BCECP4316T ABB: Severe Duty Motor 75 Hp 460 V (CECP4316T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,1780RPM,3PH,60HZ,365TC,A36070M
Ambient Temperature
40 °C
Bearing
6313 | Ball
Bearing NDE
6313 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CECP4316T
Certification Agency
CCSA US | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
A36C-0000000064
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
365
Frequency (f)
60 Hz
Global Commercial Alias
CECP4316T
Gross Volume
33833.008 in³
Gross Weight
905 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IP Class
IP55
Insulation Class
F
Invoice Description
75HP,1780RPM,3PH,60HZ,365TC,A36070M,TEFC
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Severe Duty, 75 HP, 1800 RPM, Frame Size 365Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CECP4316T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
365TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
86 %
Product Name
Severe Duty
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
905 lb
Product Net Width
32.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
172 A | 86 A
Rated Efficiency
95.40 %
Rated Speed
1780 r/min
Replaced Product ID (OLD)
7BA36-7700-4076
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.38 in
Short Description
75 HP, 1800 RPM, Frame Size 365Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
460 V
Premium Efficiency features deliver a 95.40% efficiency rating at 75 HP and 460 V. This translates to lower energy consumption and reduced heat generation, driving meaningful operating cost reductions over the motor’s lifetime. It is well-suited for continuous-duty conveyors, pumps, fans, and processing lines across manufacturing facilities where energy intensity and uptime are critical. TEFC enclosure with IP55 protection provides rugged, dust- and water-resistant operation, reducing maintenance frequency and safeguarding internal components in dirty or damp environments. This enables longer service intervals and less unscheduled downtime, making it ideal for factory floors with wash-down requirements and challenging ambient conditions. The 365TC frame, along with C-Face drive end and foot mounting, simplifies installation and replacement by matching common footprint standards found in many plant layouts. This compatibility minimizes retrofit work and accelerates spare-part provisioning for faster line start-ups. With 3-phase, 60 Hz operation at 460 V, and a 4-pole design delivering 1780 r/min rated speed, the motor integrates smoothly with standard plant controls and electrical distribution, whether using direct-on-line starts or variable-frequency drives for speed control. This reduces control complexity and supports scalable automation strategies in mixed-power environments. Certifications and stocking are robust, including CSA US / CSA EEV / UR, NEMA Premium Efficiency designation, and IP55 protection. Stocked at multiple warehouses with a 0-day lead time, this motor supports rapid procurement and predictable maintenance planning, which lowers total cost of ownership and minimizes production disruptions. In practice, the combination of compliance, footprint compatibility, and fast availability makes this motor a reliable choice for regulated industries and high-demand applications, delivering measurable ROI through energy savings, reduced downtime, and extended equipment life.
Get a Quick Quote for a ABB 7BCECP4316T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP4316T?
Enquire Now
FAQs
The CECP4316T is a 3-phase, 460 V motor designed for standard plant controls and VFD-based speed control. It uses a 365TC frame with foot mounting and a C-Face drive end, ensuring straightforward installation alongside existing gear, couplings, and motor mounts. This compatibility minimizes retrofit work and supports quick system upgrades.
Key specs include 75 HP output at 460 V, 60 Hz operation, a rated speed of 1780 r/min (synchronous 1800 r/min), 4-pole design, 95.40% efficiency, and a service factor of 1.15. Enclosure is TEFC with IP55 protection, and the frame is 365TC, enabling robust, continuous-duty operation in demanding environments.
Yes. The motor is designed for continuous duty with a 60-minute duty rating, TEFC enclosure, IP55 protection, and Premium Efficiency. Its rugged construction, together with 365TC frame and C-Face mounting, supports long run times and dependable performance in conveyors, pumps, and processing lines in challenging industrial settings.
The CECP4316T carries CSA US, CSA EEV, and UR certifications, along with Premium Efficiency recognition under NEMA guidelines. These certifications help ensure regulatory compliance, safety, and energy efficiency, which is important for regulated industries and plant-wide sustainability programs.
Lead time is listed as 0 day, and the motor is stocked at multiple warehouses (e.g., US and international sites). This enables rapid procurement and faster deployment for project timelines, minimizing downtime during motor upgrades or new installations.
