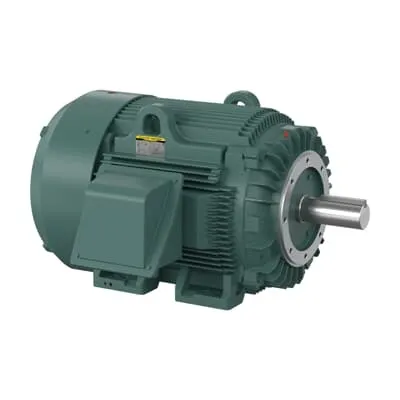

ABB 7BCECP4400T-4 Severe Duty Motor - TEFC 460V
Part Number: 7BCECP4400T-4
Quick Summary
ABB 7BCECP4400T-4 Severe Duty Motor powers demanding, continuous-duty processes in industrial equipment. This model addresses downtime and reliability concerns by delivering robust performance under heavy loads and challenging environments. It aligns with UL/CSA listings, CSA EEV certification, and NEMA premium efficiency standards to help you meet regulatory and energy goals. With 460 V operation and a 100 HP rating, this motor adds value through lower energy consumption, reduced maintenance, and seamless integration with existing ABB drive systems. In short, it offers dependable power for critical applications while supporting lifecycle cost reductions and supplier continuity.
Product Information
Extended Description
7BCECP4400T-4 ABB: Severe Duty Motor 100 Hp 460 V (CECP4400T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
100HP,1780,3PH,60HZ,405TC,TEFC
Ambient Temperature
40 °C
Bearing
6316 | Ball
Bearing NDE
6316 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CECP4400T-4
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
617429-503: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
405
Frequency (f)
60 Hz
Global Commercial Alias
CECP4400T-4
Gross Volume
75711.563 in³
Gross Weight
629.586 kg
Horsepower Rating UL/CSA
100.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
100HP,1780,3PH,60HZ,405TC,TEFC
Made To Order
No
Medium Description
Severe Duty, 100 HP, 1800 RPM, Frame Size 405Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (CECP4400T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
405TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
100 Hp
Power Factor
87 %
Product Name
Severe Duty
Product Net Depth / Length
41.5 in
Product Net Height
52.5 in
Product Net Weight
629.586 kg
Product Net Width
34.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
112 A
Rated Efficiency
95.40 %
Rated Speed
1785 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.88 in
Short Description
100 HP, 1800 RPM, Frame Size 405Tc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T2D
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
460 V
Feature → Business Impact → Application: Severe Duty design supports high-load, long-life operation, delivering reduced downtime and extended service intervals for continuous processes such as pumps, fans, and conveyors. This translates to measurable uptime improvements and lower maintenance costs in manufacturing lines and water treatment facilities. Feature → Application compatibility → Installation: 405TC frame with C-Face mounting and foot-mounted base provides straightforward installation and straightforward retrofit into existing equipment, minimizing machine downtime during upgrade projects. Feature → NEMA design B, Premium Efficiency → Compliance and energy cost savings: Optimized efficiency (approx. 95.4%) reduces electricity usage and heat load in 3‑phase systems, aiding compliance with energy standards and lowering total cost of ownership. Feature → TEFC enclosure, 3PH 60 Hz, 460 V → Reliability and protection: The TEFC enclosure protects windings in harsh environments, enabling continued operation in demanding plant settings without frequent rewinds. Feature → Bearings and shaft data → Predictable maintenance: 6316 Ball bearings and a 2.88 in shaft diameter support durable rotating assemblies, simplifying maintenance planning and asset management. Feature → Stock and logistics → Quick procurement: 0 day lead time and multi-warehouse stocking streamline sourcing for uptime initiatives and just-in-time installation programs.
Get a Quick Quote for a ABB 7BCECP4400T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP4400T-4?
Enquire Now
FAQs
The 7BCECP4400T-4 uses a 405TC frame with a C-Face mounting option and a foot-mounted base, making it compatible with standard 3-phase motor controllers and existing mechanical housings. Its TEFC enclosure provides protection in harsh environments, while the 60 Hz, 460 V rating aligns with common industrial drive systems. This combination enables straightforward integration with existing ABB or third-party VFDs and gear assemblies, minimizing retrofitting time.
Key performance specs include 100 HP output, 460 V voltage, 3-phase configuration, and 60 Hz frequency. The motor delivers a rated speed of 1785 r/min (synced to 1800 r/min) with a PF around 0.87 and efficiency near 95.4%, enabling reliable continuous operation under heavy loads. The shaft diameter is 2.88 in, with a 405TC frame, supporting robust coupling with standard transaxles and drives.
This model includes an explosion-protection designation in its data set, listing Class I, Groups A–D. However, you should verify the exact installation requirements and local codes for your facility. Ensure any explosion-protected configuration is purchased or certified for your specific hazardous area and that proper enclosure protection and installation practices are followed.
It adheres to NEMA standards and is listed for UL/CSA, with CSA EEV certification indicated in the data. The motor is designed for premium efficiency in line with NEMA energy standards, supporting regulatory compliance in many industrial environments and substantiating long-term energy savings and reliability.
Lead time is listed as 0 day with multiple warehouses stocking the product, enabling rapid deployment and uptime during upgrades. With high reliability, 100 HP output, and premium efficiency, the motor reduces energy costs and maintenance intervals, improving ROI for heavy-duty applications in conveyors, pumps, and fans, while simplifying procurement and stock management.
