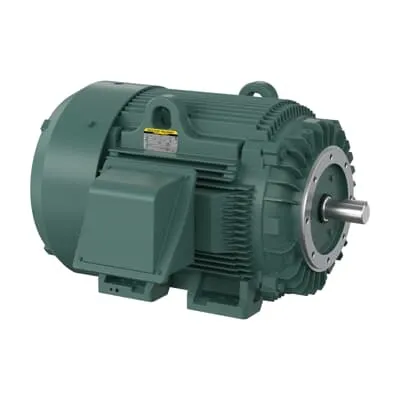

ABB CECP4402T-4 Severe Duty Motor - CSA EEV Certified
Part Number: 7BCECP4402T-4
Quick Summary
Severe Duty Motor delivers rugged, reliable drive performance for demanding industrial applications such as conveyors and pumps. Maintenance downtime and unpredictable motor life can derail projects, but this ABB solution minimizes unplanned stops with a 460 V TEFC design and robust 3‑phase operation. CSA EEV certification, together with premium efficiency aligned with NEMA standards, supports compliance and lower operating costs. Stocked at multiple warehouses with 0 day lead time helps procurement avoid delays and speeds commissioning, delivering tangible business value for manufacturers and integrators.
Product Information
Extended Description
7BCECP4402T-4 ABB: Severe Duty Motor 100 Hp 460 V (CECP4402T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
100HP,3565RPM,3PH,60HZ,405TSC,A4006
Ambient Temperature
40 °C
Bearing
6313 | Ball
Bearing NDE
6313 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CECP4402T-4
Certification Agency
CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
611740-503-SH1: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
405
Frequency (f)
60 Hz
Global Commercial Alias
CECP4402T-4
Gross Volume
105840 in³
Gross Weight
601.917 kg
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
100HP,3565RPM,3PH,60HZ,405TSC,A40060M,TE
Made To Order
No
Medium Description
Severe Duty, 100 HP, 3600 RPM, Frame Size 405Tsc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (CECP4402T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
405TSC
Motor Frame Suffix
TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
100 Hp
Power Factor
90 %
Product Name
Severe Duty
Product Net Depth / Length
48 in
Product Net Height
52.5 in
Product Net Weight
601.917 kg
Product Net Width
42 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
110 A
Rated Efficiency
95 %
Rated Speed
3565 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.13 in
Short Description
100 HP, 3600 RPM, Frame Size 405Tsc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
460 V
Feature: 100 HP, 3565 rpm, 460 V three-phase operation. Business Impact: Delivers reliable torque and quick motor response, minimizing process fluctuations and unplanned downtime. Application: Well-suited for heavy conveyors, pumps, and fans in continuous-duty environments. Feature: TEFC enclosure with C-Face mounting on a 405TSC frame. Business Impact: Provides robust protection and straightforward mounting, enabling faster commissioning and lower enclosure costs. Application: Outdoor or dirty industrial environments and horizontal footprint installations. Feature: Premium efficiency rated at 95% with a 1.15 service factor and 0.9 power factor. Business Impact: Reduces energy consumption, lowers thermal load, and extends motor life in continuous operation. Application: Automation lines, process equipment, and high-duty cycles. Feature: Stocked at multiple warehouses with 0 day lead time. Business Impact: Cuts procurement lead times, mitigates supply-chain risk, and accelerates project timelines. Application: OEMs and maintenance teams planning rapid deployments. Feature: Certifications and compliance with CSA EEV and NEMA standards. Business Impact: Ensures regulatory alignment, safer operation, and streamlined acceptance testing. Application: North American facilities with strict electrical standards and hazardous-area considerations.
Get a Quick Quote for a ABB 7BCECP4402T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP4402T-4?
Enquire Now
FAQs
The CECP4402T-4 is designed for easy installation with a 405TSC frame, C-Face drive end flange, and foot-mounted configuration. It supports horizontal mounting and standard TEFC enclosure, simplifying integration with existing belts, conveyers, and pumps. Its robust enclosure also resists dust and moisture in demanding environments, reducing installation labor and commissioning time.
This motor delivers 100 HP at 3565 rpm from a 460 V, 3‑phase supply. It operates at 60 Hz with a 0.9 power factor and a 95% efficiency rating under premium efficiency standards (NEMA alignment). Rated current is 110 A, and it features a service factor of 1.15, supporting reliable performance under varying load conditions.
Yes, the motor is specified with an Explosion Proof Group Class designation (Class I, Group A-D) and a TEFC enclosure, making it suitable for certain hazardous areas when installed with compliant equipment. It also carries CSA EEV certification and adheres to relevant NEMA standards, providing assurance for safety and regulatory compliance in continuous operations.
The CECP4402T-4 carries CSA EEV certification and aligns with NEMA standards, including premium efficiency ratings. It uses a F insulation class and TEFC enclosure, with a 60 Hz, 460 V, 3‑phase design. These certifications support North American compliance, safer operation, and easier acceptance testing for regulated facilities.
The motor’s 0 day lead time and multi-warehouse stocking improve uptime by reducing waiting times for spares and replacements. Its high-efficiency operation lowers energy costs, while the durable iron frame and ball bearings (6313) reduce maintenance frequency. For OEMs and maintenance teams, this translates to shorter project cycles, lower total cost of ownership, and predictable long-term performance.
