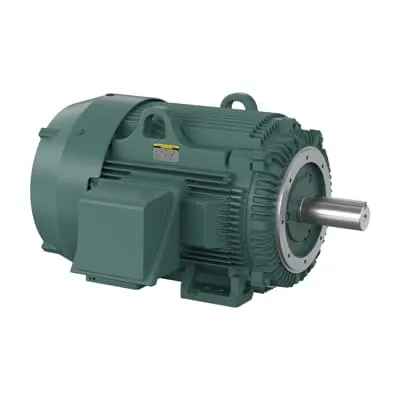

ABB 7BCECP4406T-4 Severe Duty Motor - 460 V, 150 HP (CCSA US CSA EEV)
Part Number: 7BCECP4406T-4
Quick Summary
Severe Duty Motor delivers reliable 150 HP performance for demanding industrial applications such as pumps, compressors, and conveyors. This design addresses downtime and unreliable performance in harsh environments by delivering robust durability and consistent operation. The motor aligns with Premium Efficiency standards and NEMA design B guidelines, with CSA EEV safety certification and CCSA US compliance for dependable compliance. Built for 60 Hz operation, TEFC enclosure, and a footprint that fits standard installation layouts, it reduces energy waste while ensuring long-term reliability. With stock across multiple warehouses and a 0 day lead time, it supports fast procurement and predictable project timelines.
Product Information
Extended Description
7BCECP4406T-4 ABB: Severe Duty Motor 150 Hp 460 V (CECP4406T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
150HP,1785RPM,3PH,60HZ,445TC,TEFC,F
Ambient Temperature
40 °C
Bearing
6318 | Ball
Bearing NDE
6318 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CECP4406T-4
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015381
Design
B
Dimension Diagram
617427-013: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
445
Frequency (f)
60 Hz
Global Commercial Alias
CECP4406T-4
Gross Volume
105899.063 in³
Gross Weight
969.78 kg
Horsepower Rating UL/CSA
150.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
150HP,1785RPM,3PH,60HZ,445TC,TEFC,F1
Made To Order
No
Medium Description
Severe Duty, 150 HP, 1800 RPM, Frame Size 445Tc, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (CECP4406T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
445TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
150 Hp
Power Factor
86 %
Product Name
Severe Duty
Product Net Depth / Length
49.5 in
Product Net Height
52.5 in
Product Net Weight
969.78 kg
Product Net Width
40.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
169 A
Rated Efficiency
95.80 %
Rated Speed
1785 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
3.38 in
Short Description
150 HP, 1800 RPM, Frame Size 445Tc, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
460 V
Feature: 150 HP, 460 V, 60 Hz operation in a 445TC frame with TEFC enclosure. Business Impact: Delivers strong continuous-duty performance with high efficiency, reducing energy costs and heat generation. Application: Suitable for pumps, fans, and conveyors in heavy manufacturing environments. Feature: Premium Efficiency (95.8%) and NEMA design B with CSA EEV certification. Business Impact: Lowers life-cycle energy consumption while meeting stringent safety and performance standards. Application: Ideal for process plants and packaging lines requiring compliant, energy-conscious motors. Feature: Direct On Line starting for a 3-phase, 60 Hz system. Business Impact: Simplified start-up, reduced maintenance, and immediate torque delivery for high-inertia loads. Application: Suitable for direct drive pumps and fans where minimal start-up delay matters. Feature: Foot Mounted mounting, 445TC frame, 3-phase, 4-pole, 1785 rpm nominal. Business Impact: Easy installation on standard bases and compatibility with existing mechanical couplings and belts. Application: Widely used in conveyors and material handling systems. Feature: Insulation Class F and temperature class T3 with 6318 ball bearings. Business Impact: Enhanced thermal resilience and long bearing life in moderate environmental temperatures. Application: Harsh manufacturing floors where reliability matters. Feature: Stocked At Warehouses with 0 day lead time. Business Impact: Accelerates procurement cycles and reduces project downtime. Application: Ideal for urgent replacement and spare parts planning in critical lines.
Get a Quick Quote for a ABB 7BCECP4406T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP4406T-4?
Enquire Now
FAQs
This motor is foot mounted with a 445TC frame and TEFC enclosure, designed for horizontal mounting (F1). It supports direct on line starting at 460 V and 60 Hz, and aligns with standard base plates. Ensure the drive end flange and mounting pad match the 445TC footprint, and verify shaft diameter of 3.38 inches to ensure proper coupling.
Key specs include 150 HP output, 460 V operating voltage, 60 Hz frequency, 1785 rpm rated speed, 169 A rated current, and a 1.15 service factor. The motor uses a 445TC frame with a TEFC enclosure and NEMA design B, with insulation class F and premium efficiency (95.8%). It is a 3-phase, 4-pole design suitable for continuous duty.
Yes. The Type of Duty is continuous, with a 60 Minute Duty Time rating, NEMA design B, and insulation class F, all supporting reliable operation in ongoing process applications. The TEFC enclosure provides protection in typical factory environments, while the 1785 rpm nominal speed matches many pump and mixer drives.
The motor carries CSA EEV safety certification and CCSA US compliance, reflecting CSA-based safety standards. It also embodies Premium Efficiency and NEMA design principles, with a strong emphasis on reliability, safety, and energy performance for industrial installations.
Lead time is listed as 0 day, and the product is stocked at multiple warehouses (including US and international locations). This enables rapid fulfillment for urgent replacement projects and smooth maintenance planning across global sites.
