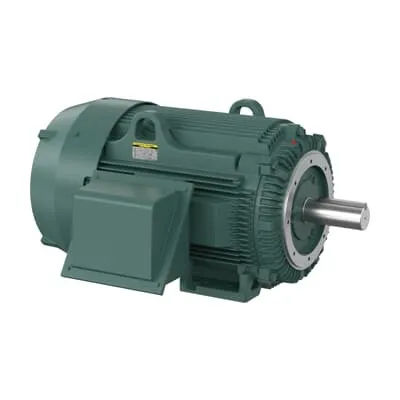

ABB CECP4407T-4 Severe Duty Motor TEFC 460V 200HP CSA EEV
Part Number: 7BCECP4407T-4
Quick Summary
Severe Duty Motor ABB delivers 200 HP at 460 V for demanding industrial drives. This robust solution is designed to maximize uptime in heavy-duty applications like conveyors, grinders, and process fans. Aimed at minimizing unplanned downtime, it combines a rugged TEFC enclosure with a 447TC frame and 1785 rpm performance to withstand harsh environments. The motor complies with major certifications and standards, including CSA EEV and CCSA US, plus NEMA design guidelines for reliability in continuous duty service. It’s built for hazardous locations with Class I groups A-D and a 40 °C ambient rating, making it suitable where safety and compliance are non-negotiable. This translates to lower maintenance costs and faster ROI for plant operators and OEMs.
Product Information
Extended Description
7BCECP4407T-4 ABB: Severe Duty Motor 200 Hp 460 V (CECP4407T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
200HP,1785RPM,3PH,60HZ,447TC,TEFC,F
Ambient Temperature
40 °C
Bearing
6318, Ball
Bearing NDE
6318
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CECP4407T-4
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015381
Design
B
Dimension Diagram
617427-014: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
447
Frequency (f)
60 Hz
Global Commercial Alias
CECP4407T-4
Gross Volume
132300 in³
Gross Weight
2455 lb
Horsepower Rating UL/CSA
200.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
200HP,1785RPM,3PH,60HZ,447TC,TEFC,F1
Made To Order
No
Medium Description
Severe Duty, 200 HP, 1800 RPM, Frame Size 447Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (CECP4407T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
447TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
200 Hp
Power Factor
87 %
Product Name
Severe Duty
Product Net Depth / Length
60 in
Product Net Height
52.5 in
Product Net Weight
2455 lb
Product Net Width
42 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
222 A
Rated Efficiency
96.20 %
Rated Speed
1785 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
3.38 in
Short Description
200 HP, 1800 RPM, Frame Size 447Tc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
460 V
Feature: Premium efficiency (96.20%) minimizes energy consumption during continuous operation, delivering measurable savings on annual utility costs. Business Impact: lower energy bills, reduced thermal load, and extended motor life in demanding lines like material handling, milling, and water treatment. Application: well-suited for 60 Hz, 460 V, 3-phase drives in plants with high run-time requirements. Feature: Service factor 1.15 provides torque reserve for overload events, reducing nuisance trips and protecting downstream equipment. Business Impact: improved uptime, easier production scheduling, and avoidance of unplanned maintenance. Application: pumps, fans, and crushers with variable load profiles. Feature: TEFC enclosure and 447TC frame with C-Face drive end flange facilitate rugged, simple installation. Business Impact: faster commissioning, compatibility with standard mounting footprints, and enhanced protection in dusty or humid environments. Application: foot-mounted, horizontal installations across manufacturing floors. Feature: Certifications and safety compliance including CSA EEV, CCSA US, and NEMA design guidelines. Business Impact: regulatory alignment, safer operation in hazardous locations, and smoother audits. Application: mining, chemical processing, and other safety-critical sectors. Feature: Stocked At Warehouses and 0 day lead time support. Business Impact: rapid procurement, reduced downtime, and predictable project timelines. Application: large-scale projects and OEM deployments needing immediate availability.
Get a Quick Quote for a ABB 7BCECP4407T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP4407T-4?
Enquire Now
FAQs
Install the CECP4407T-4 on a solid, level foundation using the 447TC frame’s foot-mounted configuration. Verify 3-phase, 460 V, 60 Hz supply with proper motor leads and torque the mounting bolts to spec. Use the C-face drive end flange for compatibility with common gearboxes and ensure adequate ventilation and clearance for service access. Align the drive system to minimize misalignment and vibration, and implement proper motor grounding and enclosure protection in accordance with NEMA and local codes.
The motor delivers 200 HP at 460 V and 60 Hz, with a rated speed of 1785 r/min and a 4-pole configuration. Rated current is 222 A, and the motor achieves 96.20% efficiency with a service factor of 1.15. Insulation is Class F, and the design is NEMA B. Frame size is 447TC, and mounting is foot-mounted with horizontal orientation (F1). These specs support reliable continuous operation in demanding industrial processes.
Yes. The CECP4407T-4 carries CSA EEV and CCSA US certifications, indicating compliance with electrical safety and performance standards for North American markets. It also aligns with NEMA design guidelines and explosion-proof considerations for Class I locations (Groups A-D). These certifications support safe operation in hazardous environments and streamline regulatory audits for plant operations and OEM installations.
The 1.15 service factor provides torque reserve for transient peaks, reducing the risk of nuisance trips and extending life of connected components. Premium efficiency (96.20%) lowers energy costs and reduces heat generation, improving cooling requirements and long-term reliability. Together, these features translate to lower operating expenses, fewer maintenance interventions, and a faster return on investment in continuous-duty applications such as conveyors, pumps, and fans.
The model is stocked at multiple warehouses and listed with zero lead time, minimizing procurement delays. This supports just-in-time ordering and rapid deployment for OEMs and maintenance teams. Availability across locations also reduces the risk of part shortages during critical shutdowns, enabling tighter project timelines and predictable installation schedules.
