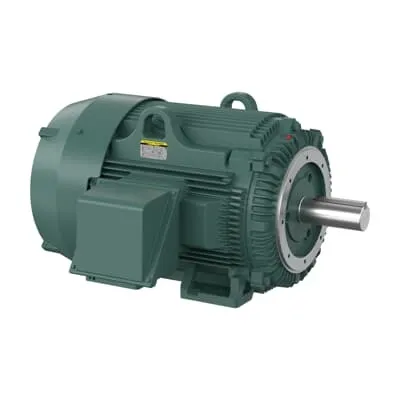

ABB CECP4410T-4 Severe Duty Motor - 125HP, 460V TEFC
Part Number: 7BCECP4410T-4
Quick Summary
ABB CECP4410T-4 Severe Duty Motor is a high-efficiency, 125 HP drive designed for demanding industrial processes such as pumps, fans, and conveyors. Uptime matters, and unplanned outages or maintenance costs can erode productivity; this motor’s rugged construction and broad stocking reduce downtime and procurement delays. Key certifications and standards include NEMA Premium Efficiency performance, TEFC enclosure, and Explosion-Proof Class I compliance (Group A–D) to meet hazardous-location requirements. In practice, this delivers lower energy costs, easier maintenance, and faster procurement, while maintaining strong torque and reliable start-up in harsh environments. For system integrators and maintenance teams, it provides a straightforward, compliant upgrade path with broad compatibility and long service life.
Product Information
Extended Description
7BCECP4410T-4 ABB: Severe Duty Motor 125 Hp 460 V (CECP4410T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
125HP,1785RPM,3PH,60HZ,444TC,A44076
Ambient Temperature
40 °C
Bearing
6318, Ball
Bearing NDE
6318
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CECP4410T-4
Certification Agency
CCSAUSEEV
Country of Origin
United States (US)
Customs Tariff Number
85015381
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
444
Frequency (f)
60 Hz
Global Commercial Alias
CECP4410T-4
Gross Volume
105840 in³
Gross Weight
757.046 kg
Insulation Class
F
Invoice Description
125HP,1785RPM,3PH,60HZ,444TC,A44076M,TEF
Made To Order
No
Medium Description
Severe Duty, 125 HP, 1800 RPM, Frame Size 444Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (CECP4410T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
444TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
125 Hp
Power Factor
85 %
Product Name
Severe Duty
Product Net Depth / Length
48 in
Product Net Height
52.5 in
Product Net Weight
757.046 kg
Product Net Width
42 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
144 A
Rated Efficiency
95.40 %
Rated Speed
1785 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
3.38 in
Short Description
125 HP, 1800 RPM, Frame Size 444Tc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3
Type of Duty
Continuous
Voltage Rating
460 V
Feature: 125 HP output at 1785 rpm with 60 Hz operation and 460 V supply → Business Impact: Delivers robust torque with high-efficiency operation, reducing energy consumption and motor heating in continuous-drive applications → Application: Ideal for heavy-load conveyors, pumps, and fans in manufacturing or processing plants. Feature: TEFC enclosure and C-face mounting with horizontal, foot-mounted installation → Business Impact: Enhanced protection in dusty or humid environments and easier retrofit or replacement using standard bases → Application: Suitable for retrofit projects and new installations in demanding facilities. Feature: Frame 444TC and 3.38 in shaft diameter → Business Impact: Standardized footprint supports quick swap-in with minimal alignment and foundation changes → Application: Widespread compatibility with existing ABB/Baldor-Reliance motor bases and bases designed for 444TC frames. Feature: NEMA Premium Efficiency rating with 95.40% rated efficiency → Business Impact: Lower energy costs and cooler operation over duty cycles, improving system reliability → Application: Long-running drives in continuous-duty operations and energy-conscious plant upgrades. Feature: Explosion-Proof Class I, Group A–D certification → Business Impact: Safe operation in hazardous environments and regulatory compliance for chemical, oil, and other processing facilities → Application: Safe, compliant drives for hazardous-location installations, fulfilling stringent industry standards.
Get a Quick Quote for a ABB 7BCECP4410T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP4410T-4?
Enquire Now
FAQs
The CECP4410T-4 uses a 444TC frame with C-face mounting and foot-mounted base, aligning with common Baldor and ABB service parts. Its horizontal orientation and direct-on-line starting simplify retrofits, minimize foundation changes, and enable faster project commissioning while preserving exact shaft diameter and mounting alignment for a smooth swap.
Key specs include 125 HP output at 1785 rpm, 3-phase operation, 60 Hz frequency, and a 460 V voltage rating. It features a TEFC enclosure, NEMA Premium Efficiency rating with 95.40% efficiency, and a 444TC frame sized for dependable torque in continuous-duty operations.
Yes. The motor is rated for Explosion-Proof Class I, Group A–D, providing compliance for hazardous locations. This makes it appropriate for chemical processing, oil & gas, and other environments requiring stringent safety standards, while maintaining reliable performance.
Installation benefits include horizontal mounting and a standard footprint (444TC) with foot-mounted base, simplifying alignment and foundation work. Maintenance advantages arise from robust construction, TEFC protection, and availability across multiple warehouses, which reduces downtime and stocking costs over the motor’s life cycle.
The motor is designed for long service life with premium efficiency and rugged construction. Warranty terms follow standard ABB/Global Warranty policies, and a warranty return applies if the product needs to be returned under warranty terms, ensuring protection against defects during the initial period.
