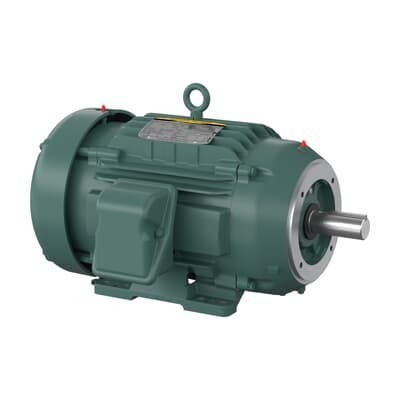

ABB Severe Duty Motor 7BCECP82332T-4 - IEEE 841
Part Number: 7BCECP82332T-4
Quick Summary
ABB Severe Duty Motor 7BCECP82332T-4 delivers reliable 10 HP, 460 V operation for heavy-duty conveyors and pumps. End users face downtime, overheating, and escalating repair costs when motors lack robust protection in tough environments. This design emphasizes IEEE 841 Severe Duty, Premium Efficiency (NEMA), and TEFC enclosure, delivering resilience in demanding plants. The unit supports a 256TC frame, foot-mounted orientation, and horizontal mounting, enabling straightforward installation and service without custom hardware. With 60 Hz operation, IP56 protection, and a 1.15 service factor, it helps reduce energy consumption, extend motor life, and lower total cost of ownership.
Product Information
Extended Description
7BCECP82332T-4 ABB: Severe Duty Motor 10 Hp 460 V (CECP82332T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1180RPM,3PH,60HZ,256TC,TEFC,F1
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CECP82332T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
09LY-000-401: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
CECP82332T-4
Gross Volume
14448.906 in³
Gross Weight
164.2 kg
Horsepower Rating UL/CSA
10.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IP Class
IP56
Insulation Class
F
Invoice Description
10HP,1180RPM,3PH,60HZ,256TC,TEFC,F1
Made To Order
No
Maximum Speed
1800 r/min
Medium Description
IEEE 841 Severe Duty, 10 HP, 1200 RPM, Frame Size 256Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (CECP82332T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
72 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
164.2 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
14.2 A
Rated Efficiency
91 %
Rated Speed
1180 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
10 HP, 1200 RPM, Frame Size 256Tc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class
T3C
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
460 V
Feature → Business Impact → Application: IEEE 841 Severe Duty design provides enhanced mechanical robustness and extended life in harsh environments, reducing unplanned downtime and maintenance costs. This translates to higher plant availability and lower total cost of ownership for continuous processes such as packaging lines and material handling. Feature → Business Impact → Application: Premium Efficiency, rated at 91%, lowers energy consumption during long-running cycles, delivering measurable operating cost reductions on conveyors and pump assemblies while meeting corporate sustainability targets. Feature → Business Impact → Application: TEFC enclosure with IP56 protection guards internal components against dust, moisture, and corrosive impacts, enabling reliable operation in cement, mining, and wood products facilities. Feature → Business Impact → Application: 256TC frame with C-Face drive end and foot mounting simplifies retrofits and new installations, ensuring quick integration with existing gearboxes and belts in HVAC systems or process lines. Feature → Business Impact → Application: Service factor 1.15 and 60 Hz rating provide headroom for peak loads and transient events, improving uptime in applications like pumps and fans that experience surge conditions. Feature → Business Impact → Application: Stocked at multiple warehouses with zero lead time supports just-in-time maintenance programs and minimizes downtime during critical repair windows across global facilities.
Get a Quick Quote for a ABB 7BCECP82332T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP82332T-4?
Enquire Now
FAQs
The motor uses a 256TC frame with C-Face drive end and is foot-mounted for horizontal installation. This combination supports straightforward retrofits and compatibility with standard mounting kits, minimizing the need for special adapters and reducing installation time in conveyors, fans, and pump assemblies.
Yes. It is designed as IEEE 841 Severe Duty with TEFC enclosure and IP56 protection, enabling reliable operation in dusty, humid, and demanding industrial plants. Its 60 Hz rating and 1.15 service factor provide additional headroom for continuous operation on conveyors, mixers, and processing equipment.
The motor offers Premium Efficiency with an overall efficiency around 91%, 10 HP output, 460 V, 3-phase, 60 Hz, and a rated current of approximately 14.2 A. With a 256TC frame and a synchronous speed of 1200 r/min, it delivers stable performance for high-demand line applications.
The product carries certifications including IEEE 841 Severe Duty design, NEMA Premium Efficiency, CSA EEV, CSA US, UR, and other regulatory marks. It also features IP56 enclosure protection and a TEFC configuration, aligning with industry safety and performance standards for industrial environments.
The motor’s rugged IEEE 841 design, premium efficiency, and robust enclosure reduce downtime and energy costs, improving uptime and payroll efficiency. With stock availability and fast lead times, planned maintenance can be scheduled around outages, while the warranty policy supports long-term reliability and total cost of ownership improvements.
