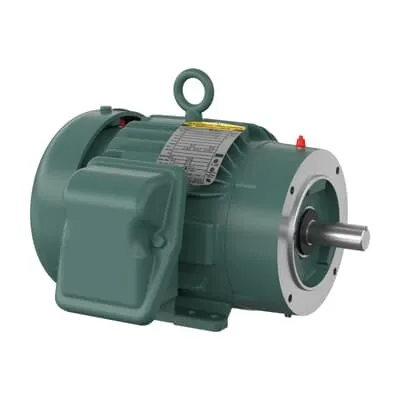

ABB 7BCECP83582T-4 Severe Duty Motor - IEEE 841
Part Number: 7BCECP83582T-4
Quick Summary
IEEE 841 Severe Duty Motor from ABB powers demanding industrial drives with reliable 1 HP performance at 460 V. In harsh environments, equipment wear and unplanned downtime are costly; this motor is engineered to minimize those risks. Certified for IEEE 841 Severe Duty, IE3 Premium efficiency, and TEFC enclosure, with CSA US and NEMA-compatible design for global compliance. Designed for OEMs and maintenance teams, it also offers straightforward installation, predictable service intervals, and measurable energy savings that reduce operating costs. With a 145TC frame, 3-phase 60 Hz operation and C-face mounting, it integrates smoothly into existing plant pools and spare-part inventories alike.
Product Information
Extended Description
7BCECP83582T-4 ABB: Severe Duty Motor 1 Hp 460 V (CECP83582T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1155RPM,3PH,60HZ,145TC,0526M,TE
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CECP83582T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
05LYEE943: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CECP83582T-4
Gross Volume
3496.049 in³
Gross Weight
56 lb
Horsepower Rating UL/CSA
1.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1HP,1155RPM,3PH,60HZ,145TC,0526M,TEFC,F1
Made To Order
No
Maximum Speed
1800 r/min
Medium Description
IEEE 841 Severe Duty, 1 HP, 1200 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (CECP83582T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
66 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
56 lb
Product Net Width
13.75 in
Product Type
NEMA_IEEE841
Quote Only
No
Rated Current (In)
1.7 A
Rated Efficiency
82.50 %
Rated Speed
1160 r/min
Replaced Product ID (OLD)
7B05EE943X572G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1 HP, 1200 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class
T4
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
460 V
IEEE 841 Severe Duty construction delivers rugged durability and bearing protection, extending service life in harsh, continuous-run environments. This design reduces maintenance costs and unplanned downtime, lowering total cost of ownership for midstream, metalworking, and packaging lines. It is well suited for conveyors, crushers, mixers, and other processing equipment that experience dust, vibration, and frequent start-stop cycles. TEFC enclosure and a 145TC frame provide robust protection against dust and moisture while enabling reliable performance in ambient temperatures up to 40 °C. The sealed design supports straightforward installation with standard conduit, easy motor wiring, and compatibility with a wide range of drive systems. For OEMs, this translates to faster commissioning, fewer field modifications, and lower installation risk in demanding facilities such as mining and cement plants. With a 1 HP output at 460 V and 3-phase 60 Hz, this motor integrates neatly into existing plant power architectures and control cabinets. The IE3 Premium efficiency rating delivers measurable energy savings, reducing energy costs during long-running operations and helping facilities meet sustainability targets. This performance profile suits pumps, fans, and small conveyors where consistent torque and reliable speed control are essential. Frame size 145TC, C-face drive end flange, and horizontal foot mounting simplify retrofits and new installations by using common mounting patterns and fasteners. The NEMA design code B and a service factor of 1.15 provide predictable torque spread and resilience under variable loads, supporting longer equipment life and safer startup sequences. These attributes also promote standardization across multi-site fleets, reducing spare-parts inventories and procurement complexity. Rated across 6 poles with a synchronous speed of 1200 r/min and a nominal speed of 1160 r/min, the motor balances high starting torque with energy efficiency for demanding processes. The design also accommodates direct-on-line starting and compatibility with VFDs, enabling smooth ramping and reduced electrical stress on upstream components. This combination of characteristics supports reliable operation in continuous-duty environments like metal fabrication, aggregate handling, and process cooling. Overall benefits include improved uptime, lower life-cycle costs, and easier integration within existing ABB and third-party control ecosystems. The product's comprehensive certifications and robust protection rating help meet regulatory requirements while simplifying cross-border procurement.
Get a Quick Quote for a ABB 7BCECP83582T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP83582T-4?
Enquire Now
FAQs
The motor supports horizontal foot mounting with a C-face drive end flange, frame size 145TC, and TEFC enclosure, enabling straightforward retrofits and quick field assembly. It is compatible with standard control cabinets and VFDs, reducing commissioning time and wiring complexity while allowing installation in existing footprints across conveyors, pumps, and fans.
Expect a 1 HP output with a 6-pole design that yields a nominal speed around 1160 r/min and a synchronous speed of 1200 r/min. The service factor of 1.15 provides torque headroom for startup and load variation, while IE3 Premium efficiency supports measurable energy savings in continuous-duty applications like pumps and fans.
Yes. It features IEEE 841 Severe Duty construction and TEFC enclosure to withstand dust, moisture, and vibration in demanding environments. Compliance with CSA US, UR, and NEMA standards further supports safe operation and installation in mixed-use facilities such as mining, cement, and metalworking plants.
The motor is certified for IEEE 841 Severe Duty, IE3 Premium efficiency, TEFC enclosure, and NEMA design compliance. Additional validations include CSA US and UR certifications, ensuring regulatory alignment for global deployments and cross-border sourcing.
Upgrading typically reduces downtime through rugged construction and lower maintenance needs, while IE3 efficiency lowers energy costs over the motor’s life. For facilities with high runtime and frequent start-stops, the reduced maintenance, easier spare-parts management, and improved uptime translate into tangible, multi-site cost savings over several years.
