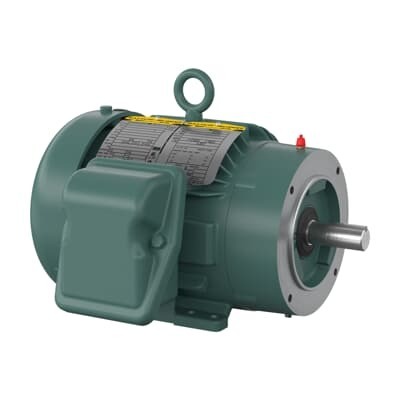

ABB 7BCECP83587T-5 Severe Duty Motor - IEEE 841
Part Number: 7BCECP83587T-5
Quick Summary
IEEE 841 Severe Duty ABB 7BCECP83587T-5 motor powers heavy-duty conveyors and pumps with proven reliability. Maintenance teams often grapple with downtime, wear, and escalating energy costs when standard motors operate in harsh environments. This design aligns with premium standards including NEMA Premium efficiency, UL/CSA listings, and CSA EEV, supporting regulatory compliance and cross-border deployment. With a 145TC frame, 3‑phase 575 V operation, and TEFC enclosure, it delivers dependable power while reducing total cost of ownership and maintenance cycles for industrial drives.
Product Information
Extended Description
7BCECP83587T-5 ABB: Severe Duty Motor 2 Hp 575 V (CECP83587T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1765RPM,3PH,60HZ,145TC,0528M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CECP83587T-5
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
05LYE943: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CECP83587T-5
Gross Volume
3496.049 inÂł
Gross Weight
80 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,1765RPM,3PH,60HZ,145TC,0528M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
IEEE 841 Severe Duty, 2 HP, 1800 RPM, Frame Size 145Tc, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (CECP83587T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
80 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
80 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.15 A
Rated Efficiency
86.50 %
Rated Speed
1765 r/min
Replaced Product ID (OLD)
7B05E943X552G1
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145Tc, Standard, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T4
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
L
Voltage Rating
575 V
Feature: IEEE 841 Severe Duty design with 2 HP rating and 60 Hz operation. Business Impact: Delivers extended uptime and lower maintenance in harsh environments, reducing replacement costs and unexpected downtime. Application: Ideal for rugged conveyors and pump systems in manufacturing lines. Feature: Premium efficiency and balanced power factor. Business Impact: Reduces energy consumption, lowers heat generation, and improves overall plant electrical efficiency. Application: Continuous-duty applications where energy bills and thermal load are critical. Feature: TEFC enclosure and 145TC foot-mounted frame. Business Impact: Easier installation, improved protection against dust and moisture, and straightforward mounting in existing equipment footprints. Application: Retrofits and new builds in OEM and aftermarket projects. Feature: Direct-on-line starting for 3-phase supply. Business Impact: Simplifies control schemes, minimizes soft-start requirements, and lowers upfront drive costs. Application: Line-starts on conveyors and pumps with stable voltage supply. Feature: Robust mechanicals including 6205 ball bearings and 0.88 in shaft diameter. Business Impact: Enhanced durability, smoother operation, and longer bearing life in high-load, continuous-duty scenarios. Application: High-cycle industrial motors in continuous service. Feature: Certifications and compliance including UL/CSA, NEMA Premium, and IEEE 841 messaging. Business Impact: Regulatory alignment and cross-border acceptance reduce procurement risk and approval times. Application: Global manufacturing environments requiring certified, reliable motors.
Get a Quick Quote for a ABB 7BCECP83587T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP83587T-5?
Enquire Now
FAQs
Choose the 145TC frame with foot-mounted orientation for straightforward mounting. Ensure proper ventilation for TEFC enclosure, provide adequate clearance for cooling, and wire for a 3‑phase, 575 V supply. Direct-on-line starting is supported, so configure protections accordingly and confirm the horizontal mounting aligns with the shaft orientation.
Yes. It is rated for 60 Hz operation with a rated speed of 1765 r/min and a 2 HP output. The motor is designed for continuous three‑phase operation at 575 V, offering reliable performance for conveyor and pump drives in manufacturing environments.
The motor carries UL/CSA listings, CSA EEV, UR certification, and NEMA Premium efficiency, along with IEEE 841 Severe Duty branding. RoHS compliance is noted, supporting modern regulatory requirements and cross‑border procurement in North America and beyond.
With regreasable bearings (6205) and a premium efficiency rating, expect lower energy costs and reduced thermal stress. The rugged IEEE 841 design minimizes downtime in severe-duty service, delivering a favorable return on investment through longer service intervals and fewer unscheduled outages.
Lead time is listed as 0 days, and it is stocked at multiple warehouses (examples include US, Germany, China, and others). This enables rapid fulfillment and supports just-in-time procurement for global production lines.
