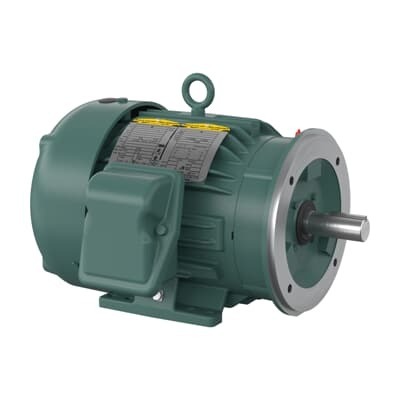

ABB 7BCECP83665T-4 Severe Duty Motor - IEEE 841
Part Number: 7BCECP83665T-4
Quick Summary
ABB 7BCECP83665T-4 Severe Duty Motor drives reliable, high‑performance 3‑phase systems in demanding manufacturing environments. Manufacturers often struggle with uptime, overheating, and energy waste in heavy-duty motors, leading to costly downtime and maintenance. This model is certified for NEMA Premium efficiency, CSA EEV, and UR recognition, underscoring reliability and global compliance. Designed for IEEE 841 Severe Duty standards, TEFC enclosure, and 460 V operation, it delivers energy-efficient performance with predictable service intervals, while compatible with standard motor bases and common VFDs to support streamlined procurement and installation.
Product Information
Extended Description
7BCECP83665T-4 ABB: Severe Duty Motor 5 Hp 460 V (CECP83665T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184TC,0641M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CECP83665T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
06LYH770: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
CECP83665T-4
Gross Volume
5274.135 inÂł
Gross Weight
131 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot with Face
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184TC,0641M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
IEEE 841 Severe Duty, 5 HP, 1800 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (CECP83665T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
81 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
131 lb
Product Net Width
16.125 in
Product Type
NEMA_IEEE841
Quote Only
No
Rated Current (In)
6.45 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184Tc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
J
Voltage Rating
460 V
IEEE 841 Severe Duty design yields long service life for a 5 HP, 460 V, 3‑phase motor with TEFC enclosure and 184TC frame. This improves uptime in demanding drives like pumps and conveyors by tolerating high temperatures and heavy duty cycles. The motor's 1.15 service factor and robust construction support reliable operation across continuous-duty processes. TEFC enclosure with C‑Face mounting protects internal components from dust and moisture while simplifying installation into standard base plates. The 184TC frame, foot-mounted design, and 1.13 in shaft diameter support easy coupling and alignment with common drive systems. 6206 ball bearings with regreasable lubrication extend bearing life under high starting torque and frequent starts, reducing maintenance costs in high-cycle applications. Efficiency matters: rated at 89.5% with IE3 classification, delivering tangible energy savings for pumps, fans, and conveyors in continuous operations. Direct on line starting minimizes electrical infrastructure requirements, while a 60 Hz, 460 V supply and 1.15 service factor ensure robust performance under occasional overloads. The motor is designed for reliable operation in harsh environments and aligns with U.S. and international sourcing standards, supporting fast procurement and consistent supply across multiple warehouses. Stocked availability and flexible mounting options (horizontal, F1, C-face) simplify retrofits and new installs, delivering faster time-to-value for production lines.
Get a Quick Quote for a ABB 7BCECP83665T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP83665T-4?
Enquire Now
FAQs
This motor uses a foot-mounted design with a 184TC frame and C-face drive end flange for straightforward installation. It supports horizontal mounting (F1) and aligns with standard base plates and 184TC mounted systems, making retrofit projects and new installations efficient and predictable.
The unit is a 5 HP, 460 V, 3‑phase motor operating at 60 Hz with a rated current of 6.45 A. It delivers about 89.5% efficiency (IE3) and a service factor of 1.15, suitable for continuous-duty applications such as pumps and conveyors.
Yes. It features IEEE 841 Severe Duty design with a TEFC enclosure and 184TC frame, plus regreasable bearings and robust construction to withstand demanding industrial conditions, reducing maintenance frequency and downtime.
The motor carries NEMA Premium efficiency, CSA EEV, and UR certifications, with additional regional recognition. These certifications support global procurement, regulatory compliance, and reliable performance in critical processes.
Stock is maintained at multiple warehouses with 0 day lead time and a minimum order quantity of one piece, enabling rapid procurement. Availability includes U.S., Germany, China, and other locations to support distributed manufacturing needs.
