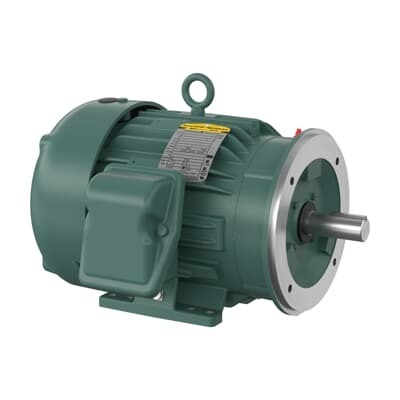

ABB 7BCECP83667T-4 Severe Duty Motor - IE3 Premium Efficiency
Part Number: 7BCECP83667T-4
Quick Summary
ABB 7BCECP83667T-4 Severe Duty Motor is a 1.5 HP, 460 V three-phase motor designed for demanding industrial drives such as conveyors, pumps, and mixers. When uptime and energy costs threaten project timelines, this motor’s rugged TEFC enclosure and robust frame help reduce unplanned outages and maintenance events. It carries key certifications like NEMA Premium IE3 efficiency, CSA EEV, and UR recognition, reinforcing safety and performance across North America. The combination of premium efficiency, durable construction, and standardized mounting translates into lower lifecycle costs, easier procurement, and reliable operation in harsh environments. This makes it a practical choice for facilities seeking dependable power with predictable maintenance needs.
Product Information
Extended Description
7BCECP83667T-4 ABB: Severe Duty Motor 1.50 Hp 460 V (CECP83667T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1170RPM,3PH,60HZ,182TC,0630M,
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CECP83667T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
06LYJ078: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
CECP83667T-4
Gross Volume
5274.135 inÂł
Gross Weight
99 lb
Horsepower Rating UL/CSA
1.500 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1.5HP,1170RPM,3PH,60HZ,182TC,0630M,TEFC
Made To Order
No
Maximum Speed
1800 r/min
Medium Description
IEEE 841 Severe Duty, 1.5 HP, 1200 RPM, Frame Size 182Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (CECP83667T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1.50 Hp
Power Factor
65 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
99 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.5 A
Rated Efficiency
87.50 %
Rated Speed
1170 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
1.5 HP, 1200 RPM, Frame Size 182Tc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class
T3C
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
460 V
Feature: IEEE 841 Severe Duty design with 1.5 HP output and 60 Hz, 460 V operation. Business Impact: Delivers consistent torque and resilience in dusty, hot, or vibration-prone environments, reducing unplanned downtime. Application: Suitable for harsh fans, pumps, and material-handling equipment in continuous service. Feature: TEFC enclosure and Insulation Class F for extended life in demanding conditions. Business Impact: Improves service intervals and reduces replacement costs in continuous-duty applications. Application: Ideal for factory floors and outdoor installations where protection from contaminants is critical. Feature: Frame 182TC with Foot Mounted base and C-Face drive end flange mounting (Horizontal, F1). Business Impact: Eases installation and alignment, lowers mounting time, and supports straightforward retrofits into existing OEM footprints. Application: Common in general-purpose industrial drives and line-mounted equipment. Feature: IE3 Premium efficiency and NEMA Design B. Business Impact: Cuts energy consumption and operating costs while meeting regulatory requirements. Application: Best fit for energy-conscious systems such as conveyors and mixers that run at varying loads. Feature: Direct on line starting, 3-phase 460 V, 1170 rpm rated speed. Business Impact: Enables simple control schemes with rapid start-up while maintaining torque reliability. Application: Works well in applications requiring fast response and robust startup performance. Feature: Stocked at multiple warehouses with 0 day lead time. Business Impact: Reduces procurement risk and minimizes downtime during critical projects. Application: Supports just-in-time maintenance and rapid deployment across North America and beyond.
Get a Quick Quote for a ABB 7BCECP83667T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP83667T-4?
Enquire Now
FAQs
This motor uses a 182TC frame and C-face drive end flange, with foot-mounted base and horizontal mounting. It supports straightforward installation into standard OEM footprints and aligns with a 1.13 in shaft diameter and 2.5 A rated current. Direct-on-line starting simplifies wiring and control, reducing commissioning time.
The unit is a 3-phase, 460 V motor rated at 60 Hz, with a rated speed of 1170 r/min and 1.15 service factor. It features IE3 Premium efficiency, insulation class F, and a NEMA design B, ensuring reliable performance and energy savings across typical industrial loads.
Yes. The IEEE 841 Severe Duty designation, TEFC enclosure, and rugged construction are tailored for harsh environments. With a 60 min duty capability, this motor supports continuous operation in conveyors and pumps while maintaining torque and reliability.
The motor carries CSA EEV and UR recognitions, along with NEMA Premium efficiency labeling, and CCSA US certification. These certifications support compliance with safety and energy-efficiency standards across North America.
The IE3 Premium efficiency rating reduces energy consumption over motor life, while the F-class insulation and robust TEFC enclosure lower maintenance needs in demanding environments. Availability from multiple warehouses and 0 day lead time further enhance uptime and total cost of ownership.
