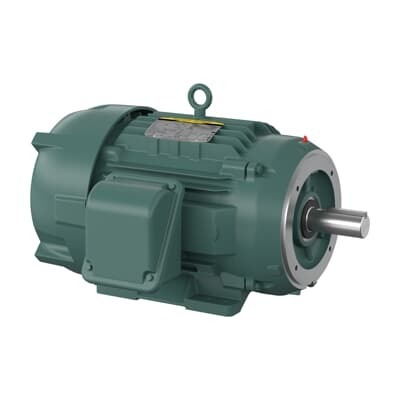

ABB CECP84103T-4 Severe Duty Motor - IEEE 841
Part Number: 7BCECP84103T-4
Quick Summary
IEEE 841 Severe Duty motor CECP84103T-4 delivers reliable 25 HP performance for heavy-duty pump and mixer drives. Operators face uptime challenges in dusty, wet, or high-temperature plants, but this motor's TEFC enclosure and IP56 protection curb that risk. It carries NEMA Premium Efficiency, CSA US EEV, and UL/UR listings, reflecting adherence to energy and safety standards. Designed for industrial automation, it suits pumps, fans, and conveyors in manufacturing and processing lines, delivering lower energy costs and predictable performance. Optional retrofit-friendly features and a robust 284TC frame simplify installation and maintenance in evolving plant environments.
Product Information
Extended Description
7BCECP84103T-4 ABB: Severe Duty Motor 25 Hp 460 V (CECP84103T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,1770RPM,3PH,60HZ,284TC,1056M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CECP84103T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
10LY-000-170: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
CECP84103T-4
Gross Volume
14448.906 inÂł
Gross Weight
470 lb
Horsepower Rating UL/CSA
25.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot with Face
IP Class
IP56
Insulation Class
F
Invoice Description
25HP,1770RPM,3PH,60HZ,284TC,1056M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
IEEE 841 Severe Duty, 25 HP, 1800 RPM, Frame Size 284Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (CECP84103T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
85 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
470 lb
Product Net Width
23.75 in
Product Type
NEMA_IEEE841
Quote Only
No
Rated Current (In)
29.4 A
Rated Efficiency
93.60 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
25 HP, 1800 RPM, Frame Size 284Tc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
460 V
Feature: TEFC enclosure with IP56 protection. Business Impact: Reduces dust, moisture, and wash-down ingress, extending motor life and minimizing unplanned downtime. Application: Ideal for conveyors and pumps in harsh production lines and outdoor installations. Feature: IEEE 841 Severe Duty design at 25 HP and 1770 rpm. Business Impact: Delivers durable torque and reliable operation under demanding duty cycles, lowering maintenance costs. Application: Mining, metal processing, and heavy-duty material handling. Feature: High efficiency 93.60% rated efficiency with 1.15 service factor. Business Impact: Lower energy consumption and operating costs in continuous-duty applications; improved system performance. Application: Continuous automation lines, OEM integrations, and energy-conscious retrofits. Feature: Regreasable bearings (6311) and robust ball bearings. Business Impact: Longer service intervals, easier field maintenance, and reduced total cost of ownership. Application: Remote facilities and process plants where servicing requires minimal downtime. Feature: 460 V, 3-phase, 60 Hz with 284TC frame and C-face mounting. Business Impact: Seamless compatibility with standard industrial power systems and easy retrofit into existing lines. Application: Pumps, fans, conveyors in factories and process industries.Â
Get a Quick Quote for a ABB 7BCECP84103T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP84103T-4?
Enquire Now
FAQs
The CECP84103T-4 uses a standard 284TC frame with C-face mounting and foot-mounted orientation. For a proper retrofit, ensure a level mounting surface, compatible bolt circle, and proper shaft alignment with a 1.88 in shaft diameter. Connect to a 460 V three-phase source, verify direct-on-line starting suitability, and secure the enclosure to protect wiring. This setup minimizes vibration and maximizes lifespan in demanding automation lines.
Key specs include 25 HP, 1770 r/min rated speed, 460 V, 3-phase, 60 Hz, and a rated current of 29.4 A. The motor features IP56 TEFC protection, insulation class F, and a service factor of 1.15. Efficiency is rated at 93.60%, supporting energy-conscious operation in continuous duty scenarios. These figures guide drive selection, protective relays, and power quality considerations.
Yes. The model is designed for continuous duty with a 60-minute duty cycle and a NEMA design B configuration. Its TEFC enclosure, IP56 rating, and regreasable bearings support long runtimes in harsh environments such as conveyors, pumps, and mixers in manufacturing and processing facilities. The 284TC frame and 4-pole design deliver reliable torque with manageable cooling losses for automation applications.
This ABB motor carries NEMA Premium Efficiency, CSA US EEV, CSL/UL/UR listings, and related safety certifications. The product aligns with multiple regional standards, aiding regulatory compliance for global installations. The included IP56 rating and TEFC enclosure further support safe operation in dusty, wet, and high-temperature environments.
Maintenance centers on regreasable bearings and routine belt/drive alignment checks. Regular lubrication intervals reduce wear on the 6311 ball bearings, extending service life. With 93.60% efficiency and 1.15 service factor, the motor offers meaningful energy savings and reduced downtime, translating to faster ROI in continuous-operation lines. Stocked spare parts and a robust support network simplify ongoing maintenance.
