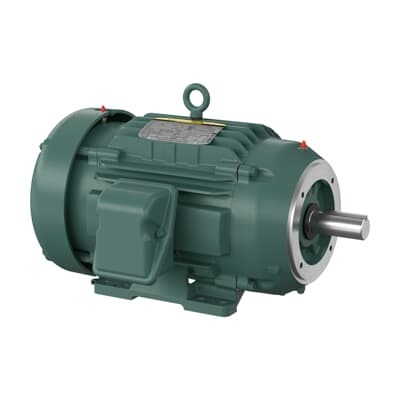

ABB 7BCECP84106T-4 Motor - IEEE 841 Severe Duty
Part Number: 7BCECP84106T-4
Quick Summary
IEEE 841 Severe Duty motor delivers robust 20 HP performance for demanding industrial applications at 460 V. In real-world operation, downtime and costly maintenance erode uptime and increase total cost of ownership. This model addresses harsh environments with rugged construction, regreasable lubrication, and a durable TEFC enclosure. It carries respected certifications such as NEMA Premium Efficiency, UL/CSA recognition, and UR listing, complemented by IP56 protection and a 256TC frame for smooth installation in retrofit or new builds. Designed to maximize reliability and energy efficiency, the ABB CECP84106T-4 supports lower lifecycle costs while meeting stringent industrial codes. For buyers, the value translates to better uptime, simpler compliance, and predictable procurement across global operations.
Product Information
Extended Description
7BCECP84106T-4 ABB: Severe Duty Motor 20 Hp 460 V (CECP84106T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,3510RPM,3PH,60HZ,256TC,TEFC,F1
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CECP84106T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
09LY-000-404: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
CECP84106T-4
Gross Volume
14448.906 in³
Gross Weight
148.778 kg
Horsepower Rating UL/CSA
20.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot with Face
IP Class
IP56
Insulation Class
F
Invoice Description
20HP,3510RPM,3PH,60HZ,256TC,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
IEEE 841 Severe Duty, 20 HP, 3600 RPM, Frame Size 256Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (CECP84106T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
91 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
148.778 kg
Product Net Width
23.75 in
Product Type
NEMA_IEEE841
Quote Only
No
Rated Current (In)
22 A
Rated Efficiency
91 %
Rated Speed
3510 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
20 HP, 3600 RPM, Frame Size 256Tc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
460 V
Feature: IEEE 841 Severe Duty design with regreasable bearings and robust enclosure → Business Impact: Extends service life in dusty, high-temperature environments, reducing unscheduled maintenance costs → Application: Mining conveyors, oil & gas process lines, and heavy-duty pumping stations. Feature: 3-phase, 460 V operation at 60 Hz, 20 HP, 256TC frame with TEFC enclosure → Business Impact: Standardized power, improved protection, and compatibility with common industrial controls → Application: Fixed-speed drives and high-duty duty cycles in chemical processing and water treatment. Feature: NEMA Premium Efficiency and UL/CSA recognition with UR listing → Business Impact: Lower energy bills and assured regulatory compliance across regions → Application: Energy-conscious upgrade projects and multi-site installations. Feature: IP56 protection, corrosion-resistant finish, and 1.15 service factor → Business Impact: Resilient performance under washdown and temperature variations, reducing warranty exposure → Application: Food & beverage, pharmaceutical, and pulp & paper environments. Feature: Foot mounting with C-face drive end and 256TC frame; Direct on line starting → Business Impact: Easy installation, straightforward alignment, and minimal ancillary parts → Application: General purpose belt-driven systems, fans, and pumps in demanding facilities. Feature: Regulated stock across multiple warehouses and 0-day lead time → Business Impact: Rapid fulfillment and reduced project downtime → Application: Capital projects and plant upgrades requiring fast delivery. Long-tail keywords referenced include IEEE 841 motor, Severe Duty motor, 256TC frame motor, TEFC enclosure, 460 V motor, NEMA Premium efficiency, and 3-phase industrial motor.
Get a Quick Quote for a ABB 7BCECP84106T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP84106T-4?
Enquire Now
FAQs
This motor is foot-mounted with a C-Face drive end and a 256TC frame, designed for straightforward bolting into standard baseplates and existing 256TC housings. It supports 460 V, 3-phase, 60 Hz operation and Direct on Line starting, making it compatible with common industrial drives and control cabinets while simplifying retrofit projects.
Key specs include 20 horsepower, 460 V, 3-phase, 60 Hz, 256TC frame, TEFC enclosure, IP56 protection, insulation class F, and a service factor of 1.15. Rated speed is 3510 r/min with a synchronous speed of 3600 r/min; starting method is Direct on Line, and rated current is 22 A.
Ideal for severe duty service in harsh environments such as mining, oil & gas, chemical processing, water treatment, and heavy-duty conveyors. The TEFC enclosure, IP56 rating, and regreasable bearings support long life and reliable operation where dust, moisture, and high-temp conditions are common.
The model carries UL/CSA recognition and UR listing, is built to NEMA Premium efficiency standards, and is compatible with industry designations such as IEEE 841 Severe Duty. Its IP56 TEFC enclosure and 256TC frame meet common regulatory and installation requirements for global facilities.
Regreasable bearings and a rugged TEFC enclosure reduce maintenance intervals, while premium efficiency lowers energy costs. The 0-day lead time and global stocking support rapid replacement, minimizing downtime and extending motor life in critical processes.
