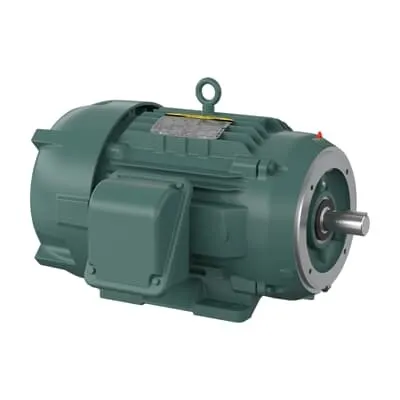

ABB CECP84107T-4 Severe Duty Motor - IEEE 841
Part Number: 7BCECP84107T-4
Quick Summary
IEEE 841 Severe Duty Motor delivers reliable 25 HP torque for harsh industrial drives and pump systems. In uptime‑critical environments, downtime and overheating translate to costly losses; this motor is engineered to minimize maintenance and extend service life. It carries premium efficiency and robust protection—IP56, TEFC enclosure, and CSA/UL/NEMA Premium certifications—that help you meet regulatory and safety requirements with confidence. With a 460 V three‑phase supply and foot‑mounted 284TSC frame, it installs quickly alongside existing equipment, while its regreasable bearings simplify maintenance. This combination translates to lower operating costs and improved total cost of ownership for demanding applications.
Product Information
Extended Description
7BCECP84107T-4 ABB: Severe Duty Motor 25 Hp 460 V (CECP84107T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,3520RPM,3PH,60HZ,284TSC,TEFC,F
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CECP84107T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
10LY-000-161: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
CECP84107T-4
Gross Volume
14448.906 in³
Gross Weight
433 lb
Horsepower Rating UL/CSA
25.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot with Face
IP Class
IP56
Insulation Class
F
Invoice Description
25HP,3520RPM,3PH,60HZ,284TSC,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
IEEE 841 Severe Duty, 25 HP, 3600 RPM, Frame Size 284Tsc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (CECP84107T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284TSC
Motor Frame Suffix
TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
90 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
433 lb
Product Net Width
23.75 in
Product Type
NEMA_IEEE841
Quote Only
No
Rated Current (In)
28 A
Rated Efficiency
91.70 %
Rated Speed
3520 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
25 HP, 3600 RPM, Frame Size 284Tsc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
F
Voltage Rating
460 V
IEEE 841 Severe Duty construction anchors reliability for continuous operation in demanding environments. The 25 HP, 460 V three‑phase design delivers consistent torque, reducing unplanned downtime and maintenance costs in conveyors, pumps, and fans across mining, chemical processing, and heavy industry. Business impact: longer equipment life and lower replacement costs; applicable in harsh settings where washdown and dust are common. Performance is backed by premium efficiency and a TEFC enclosure, enabling operation with lower energy use and better protection in variable conditions. Application: use in long‑run conveyors and process pumps with minimal maintenance overhead. IP56 protection and a robust frame support washdown and dust resistance, translating to fewer service interruptions and easier compliance with safety standards. The regreasable bearings and 1.63 in shaft diameter provide dependable service intervals and compatibility with standard couplings, easing retrofit and installation. Mounting versatility is provided by foot mounting, C‑face drive end flange, and horizontal F1 orientation, simplifying integration with existing line shafts and gear drives. Overall, the motor’s 2P design and 3600 r/min synchronous speed deliver predictable performance in demanding production lines while maintaining cooling and lubrication margins for extended life.
Get a Quick Quote for a ABB 7BCECP84107T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP84107T-4?
Enquire Now
FAQs
This model uses a foot-mounted base with a C‑Face drive end flange and horizontal mounting (F1). It is designed for a 284TSC frame and 460 V 3‑phase 60 Hz supply, allowing straightforward retrofit with existing couplings and mounting plates while preserving shaft alignment and enclosure protection (TEFC, IP56).
Expect 25 HP output with a rated speed of 3520 r/min, a synchronous speed of 3600 r/min, and a service factor of 1.15. It offers premium efficiency around 91.70% and a 2P design, suitable for continuous duty and demanding load profiles in harsh environments.
Yes. It carries NEMA Premium efficiency and supports CSA EEV, UL, and UR certifications. The enclosure is TEFC with IP56 protection, aligning with safety and environmental requirements for challenging plant floors and washdown areas.
The motor uses regreasable bearings (6311) and a lubricated system designed for longer service intervals. Regular checks of bearing lubrication and shaft alignment, along with routine inspections of the TEFC enclosure, help maximize uptime and motor life in continuous-duty service.
Best suited for continuous-duty, heavy-load applications such as conveyors, pumps, fans, and mixers in mining, chemical processing, and heavy manufacturing. Its 460 V three-phase rating, IP56 protection, and robust frame make it a reliable choice for environments with dust, moisture, and variable loads.
