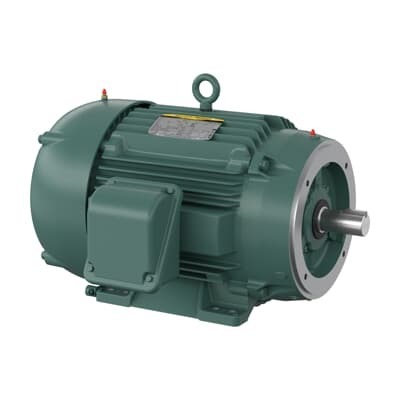

ABB 7BCECP84109T-4 Motors & Drives - IEEE 841 Severe Duty
Part Number: 7BCECP84109T-4
Quick Summary
ABB 7BCECP84109T-4 IEEE 841 Severe Duty motor delivers reliable heavy-duty performance for demanding industrial drives. Downtime in dusty, wet, or high-temperature environments erodes productivity and drives maintenance costs. This model meets key certifications such as NEMA Premium Efficiency, CSA EEV, and UR listings, signaling energy efficiency, safety, and compliance across North America. Its TEFC enclosure, IP56 rating, and rugged 324TSC frame are engineered for long life in harsh settings. By pairing this motor with ABB drivers and standard electrical systems, you gain predictable performance, lower energy use, and easier procurement across global warehouses. The result is a dependable power solution that reduces maintenance windows and drives lower total cost of ownership.
Product Information
Extended Description
7BCECP84109T-4 ABB: Severe Duty Motor 40 Hp 460 V (CECP84109T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,3545RPM,3PH,60HZ,324TSC,TEFC,F
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312, Ball
Bearing NDE
6312
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CECP84109T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
12LY-000-141: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
CECP84109T-4
Gross Volume
18748.226 inÂł
Gross Weight
587 lb
Horsepower Rating UL/CSA
40.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot with Face
IP Class
IP56
Insulation Class
F
Invoice Description
40HP,3545RPM,3PH,60HZ,324TSC,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
IEEE 841 Severe Duty, 40 HP, 3600 RPM, Frame Size 324Tsc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (CECP84109T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
324TSC
Motor Frame Suffix
TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
40 Hp
Power Factor
91 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
587 lb
Product Net Width
25.688 in
Product Type
NEMA_IEEE841
Quote Only
No
Rated Current (In)
44 A
Rated Efficiency
92.40 %
Rated Speed
3545 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
40 HP, 3600 RPM, Frame Size 324Tsc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
H
Voltage Rating
460 V
Feature: IEEE 841 Severe Duty design delivers rugged performance for harsh environments. Business Impact: Extends service life in dusty, high-temperature plants while maintaining consistent torque. Application: Concrete, mining, cement and material handling where reliability matters. Feature: Premium efficiency at 92.4% reduces operating costs over the motor’s life. Business Impact: Lower energy bills and cooler running equipment. Application: Continuous-duty conveyors and pumps in energy-conscious facilities. Feature: Insulated to F class with IP56 TEFC enclosure provides dust/moisture resistance. Business Impact: Fewer unscheduled shutdowns and better uptime in harsh plants. Application: Crushers, grinding mills, and wash-down zones. Feature: Regreasable bearings and a 1.15 service factor support long intervals between maintenance. Business Impact: Higher mean time between failures and reduced maintenance labor. Application: Heavy-duty fans, mixers, and filtration equipment. Feature: Foot-mounted, C-face mounting with a 324TSC frame ensures straightforward integration. Business Impact: Simplified installation, compatible with existing bases and couplings. Application: Retrofits and new installations in retrofit-friendly facilities. Feature: Stocked across multiple warehouses with 0-day lead time improves procurement. Business Impact: Fast project execution and reduced downtime during deployment. Application: Global projects requiring rapid deployment and consistent supply.
Get a Quick Quote for a ABB 7BCECP84109T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP84109T-4?
Enquire Now
FAQs
This motor is designed for Foot Mounted mounting with a C-Face drive end. The shaft diameter is 1.88 inches, which aligns with the 324TSC frame and standard couplings. Horizontal mounting positions (F1) are supported, enabling straightforward integration with existing conveyors, pumps, or fans. Verify alignment and seal health during installation to maximize seal life.
The ABB 7BCECP84109T-4 is a 3‑phase, 40 HP motor rated at 460 V and 60 Hz, drawing approximately 44 A at rated load. It delivers a measured efficiency of about 92.4% with insulation class F. The service factor is 1.15, and the rated speed is 3545 r/min, providing robust torque for heavy-duty applications.
Yes. It features IEEE 841 Severe Duty construction, TEFC enclosure, and an IP56 rating—protecting against dust and moisture. The NEMA Design B configuration, regreasable bearings, and rugged frame support continuous operation in demanding settings such as mining conveyors, cement mills, and bulk handling systems.
This motor boasts NEMA Premium efficiency certification and listings from CSA EEV and UR, with additional U.S. and international approvals noted (CCSA US). These certifications support compliance with energy efficiency, safety, and reliability standards in North American facilities.
Regreasable bearings and a 1.15 service factor extend service life while enabling longer maintenance intervals. The motor’s efficiency reduces operating costs, and its stock availability with 0‑day lead times minimizes downtime during deployment. Overall, expect lower total cost of ownership through reduced maintenance and energy savings.
