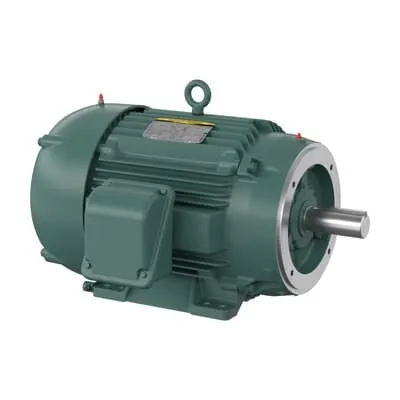

ABB 7BCECP84115T-4 Severe Duty Motor - IEEE 841
Part Number: 7BCECP84115T-4
Quick Summary
IEEE 841 Severe Duty Motor is engineered for demanding industrial processes and heavy-duty applications in challenging environments. Operators often face downtime, rising energy costs, and unpredictable failures when equipment isn’t built for long-term reliability. This motor carries NEMA Premium efficiency, CSA EEV approvals, and UR certification, with IP56 protection and a TEFC enclosure that shield the motor from dust, moisture, and debris. Designed for 460 V, 60 Hz operation in a rugged 326TC frame, it fits seamlessly into existing ABB/Baldor lines and minimizes retrofit risk. The result is a lower total cost of ownership, predictable maintenance, and sustained performance in harsh plants and tough service conditions.
Product Information
Extended Description
7BCECP84115T-4 ABB: Severe Duty Motor 50 Hp 460 V (CECP84115T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,1770RPM,3PH,60HZ,326TC,TEFC,F1
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312, Ball
Bearing NDE
6312
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CECP84115T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
12LY-000-140: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
CECP84115T-4
Gross Volume
18748.226 in³
Gross Weight
683 lb
Horsepower Rating UL/CSA
50.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot with Face
IP Class
IP56
Insulation Class
F
Invoice Description
50HP,1770RPM,3PH,60HZ,326TC,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
IEEE 841 Severe Duty, 50 HP, 1800 RPM, Frame Size 326Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (CECP84115T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
50 Hp
Power Factor
87 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
683 lb
Product Net Width
25.688 in
Product Type
NEMA_IEEE841
Quote Only
No
Rated Current (In)
57 A
Rated Efficiency
94.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.13 in
Short Description
50 HP, 1800 RPM, Frame Size 326Tc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
460 V
Feature: IEEE 841 Severe Duty design delivers robust insulation and long life in continuous operation. Benefit: Reduces unplanned downtime and extends service intervals, enabling predictable maintenance planning in chemical, mining, and wastewater environments. Application: Suitable for continuous duty in harsh surroundings where reliability is mission-critical. Feature: Premium efficiency (94.50 %) and 50 HP output at 1770 r/min with a 1.15 service factor. Benefit: Lowers energy consumption and operating costs while maintaining steady torque during process ramping. Application: Ideal for HVAC, conveying, and pump drives in manufacturing lines seeking energy optimization. Feature: TEFC enclosure with IP56 rating and C-face, 326TC frame. Benefit: Enhanced protection against particulate ingress and moisture, enabling outdoor, dusty, or high-humidity installations without enclosure upgrades. Application: Suitable for outdoor pumps, hoists, and external fans in harsh environments. Feature: Regreasable bearings (6312) and 2.13 in shaft diameter. Benefit: Facilitates maintenance cycles and improves shaft life under misalignment or high-load conditions. Application: Critical for long-running conveyors and mixers where shaft integrity matters. Feature: Foot-mounted with drive-end C-face mounting and horizontal orientation. Benefit: Simplifies mounting, upgrade paths, and compatibility with standard frames in plant-wide motor pools. Application: Easy integration in retrofit projects or new installations aligned to 326TC footprints.
Get a Quick Quote for a ABB 7BCECP84115T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP84115T-4?
Enquire Now
FAQs
The motor is designed for horizontal, foot-mounted setup with a C-face drive end. Ensure the mounting surface is flat and aligned to the frame’s bolt pattern, then fasten using the standard four mounting feet. Verify shaft alignment with the driven equipment and use proper torque specs for secure coupling to minimize misalignment and vibration.
Key specs include 50 HP output, 460 V voltage, 60 Hz frequency, 1770 r/min nominal speed, 3 phases, frame 326TC, TEFC enclosure, and insulation class F. Rated efficiency is 94.50%, with a service factor of 1.15. Shaft diameter is 2.13 inches, and the motor is regreasable for maintenance parity with other Baldor/ABB offerings.
The motor carries NEMA Premium efficiency, CSA EEV approvals, and UR certification, with additional listings through CCSA US. These certifications support regulatory compliance, energy efficiency incentives, and safe operation in diverse markets, including North America and international installations.
Yes. The product is stocked at multiple warehouses (e.g., EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU) with a 0 day lead time indicated, supporting quick fulfillment for urgent projects and minimizing downtime during commissioning or retrofits.
IEEE 841 construction emphasizes durability in severe duty service, with regreasable bearings (6312) and a TEFC IP56 enclosure protecting critical components. These features reduce lubrication-related downtime, lower total cost of ownership, and support longer service life in demanding processes such as mining, chemical processing, and water treatment.
