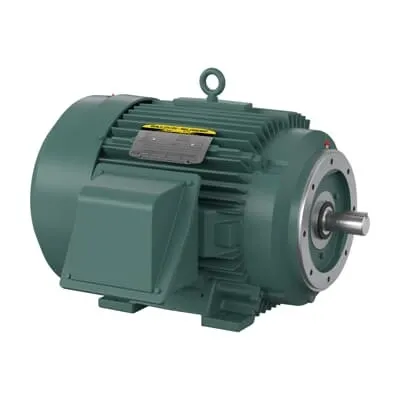

ABB 7BCECP84313T-4 Motor - IEEE 841 Severe Duty
Part Number: 7BCECP84313T-4
Quick Summary
IEEE 841 Severe Duty motor from ABB delivers rugged, reliable performance for demanding industrial drives. This design addresses downtime and maintenance costs by delivering extended service life and low maintenance requirements in harsh environments. It is UL/CSA (UR) certified and NEMA Premium with IP56 protection and a TEFC enclosure, ensuring compliance and durability across critical applications. With 75 HP, 460 V, and 60 Hz operation, plus a 364TSC frame and foot-mounted installation, it integrates with modern control systems while delivering consistent torque. In real-world facilities, this translates to fewer unscheduled outages, faster replacement cycles, and a clear path to energy efficiency and reduced total cost of ownership.
Product Information
Extended Description
7BCECP84313T-4 ABB: Severe Duty Motor 75 Hp 460 V (CECP84313T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,3555RPM,3PH,60HZ,365TSC,A36068
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6313, Ball
Bearing NDE
6313
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CECP84313T-4
Certification Agency
CCSA US | CCSAUSEEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
A36C-0000000105
Direction of Rotation
CCW Counter clockwise
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
364
Frequency (f)
60 Hz
Global Commercial Alias
CECP84313T-4
Gross Volume
33833.008 inÂł
Gross Weight
456.768 kg
Horsepower Rating UL/CSA
75.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot with Face
IP Class
IP56
Insulation Class
F
Invoice Description
75HP,3555RPM,3PH,60HZ,365TSC,A36068M,TEF
Lubrication
Regreasable
Made To Order
No
Maximum Speed
4500 r/min
Medium Description
IEEE 841 Severe Duty, 75 HP, 3600 RPM, Frame Size 364Tsc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (CECP84313T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
365TSC
Motor Frame Suffix
TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
92 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
456.768 kg
Product Net Width
32.5 in
Product Type
NEMA_IEEE841
Quote Only
No
Rated Current (In)
80.7 A
Rated Efficiency
94.50 %
Rated Speed
3555 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
75 HP, 3600 RPM, Frame Size 364Tsc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
F
Voltage Rating
460 V
Feature: IEEE 841 Severe Duty construction with TEFC enclosure and IP56 protection. Business Impact: Withstand dusty, wet, and high-temperature environments, reducing unplanned downtime and maintenance costs. Application: Ideal for pumps, fans, and conveyors in mining, chemical processing, water treatment, and other heavy-duty settings. Feature: Premium efficiency with up to 94.5% rated efficiency. Business Impact: Lower energy consumption during long-running operations, delivering tangible operating-cost savings. Application: Continuous-duty applications and facilities aiming for energy optimization and greener operations. Feature: 3-phase 60 Hz, 460 V supply with Direct on Line starting. Business Impact: Simplified electrical integration and fast commissioning, enabling quicker line startups and reduced control complexities. Application: OEM integrations and retrofit projects in production floors. Feature: Frame 364TSC, foot-mounted, TEFC, 1.88 in shaft, and 75 HP output. Business Impact: Easy retrofits and robust mechanical interface with standard couplings, lowering installation time and risk. Application: Replacement in existing motor footprints and new equipment builds. Feature: Stocked at multiple warehouses with 0 day lead time. Business Impact: Shorter replenishment cycles, minimized downtime, and improved supply chain resilience. Application: Just-in-time manufacturing environments and global operations needing rapid procurement.
Get a Quick Quote for a ABB 7BCECP84313T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP84313T-4?
Enquire Now
FAQs
This motor is designed for 3-phase, 460 V operation at 60 Hz and features a 364TSC frame with a TEFC enclosure. For compatibility, match the frame size, mounting type, and shaft dimensions to your existing equipment, ensure direct-on-line starting is supported by your starter, and confirm ambient temperature and enclosure requirements align with site conditions.
Key specs include 75 HP output, rated current around 80.7 A, 460 V, 60 Hz, 3555 r/min (rated speed) with a synchronous speed of 3600 r/min, frame 364TSC, TEFC enclosure, IP56 ingress protection, and NEMA Design B. Lubrication is regreasable, and the motor is designed for continuous duty with a service factor of 1.15, enabling reliable torque delivery.
Yes. The IEEE 841 Severe Duty design, IP56 TEFC enclosure, and high-efficiency rating make it well-suited for pumps, fans, and conveyors in mining, chemical processing, and wastewater treatment. Its rugged bearings and reinforced construction reduce catastrophic failures, while direct-on-line operation simplifies drive integration in harsh environments.
The motor carries UL/CSA (UR) approvals and NEMA Premium efficiency designation, along with IP56 protection. These certifications support regulatory compliance, easier procurement, and compatibility with UL/CSA-specified control panels and installations, reducing supplier risk in regulated or safety-critical environments.
Expected ROI comes from reduced downtime, energy savings from premium efficiency (approximately 94.5%), and longer service life due to the Severe Duty design. Maintenance includes regreasable bearings and periodic lubrication checks; the motor’s durable TEFC enclosure and IP56 rating minimize environmental wear, lowering maintenance costs and extending intervals between service events.
