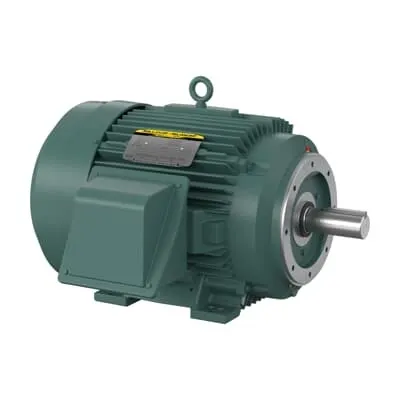

ABB 7BCECP84314T-4 Motor - IEEE 841 Severe Duty
Part Number: 7BCECP84314T-4
Quick Summary
ABB 7BCECP84314T-4 motor is a rugged 60 HP drive designed for continuous-duty operation in demanding industrial processes. It helps reduce unexpected downtime by withstanding harsh environments and heavy loads. The motor carries IEEE 841 Severe Duty recognition, TEFC enclosure, and IP56 protection, ensuring reliable operation in dusty or wet settings. With premium efficiency and a 1.15 service factor, it delivers steady torque and lower energy costs across long runs. Built on Baldor-Reliance lineage, this NEMA-classified motor integrates seamlessly with standard ABB drives and motor bases, offering straightforward installation, spare-part compatibility, and predictable maintenance intervals for industrial motors and automation systems.
Product Information
Extended Description
7BCECP84314T-4 ABB: Severe Duty Motor 60 Hp 460 V (CECP84314T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,1780RPM,3PH,60HZ,364TC,A3658M
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6313, Ball
Bearing NDE
6313
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CECP84314T-4
Certification Agency
CCSAUSEEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
A36C-0000000068
Direction of Rotation
CCW Counter clockwise
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
364
Frequency (f)
60 Hz
Global Commercial Alias
CECP84314T-4
Gross Volume
41520.75 in³
Gross Weight
417.758 kg
Horsepower Rating UL/CSA
60.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot with Face
IP Class
IP56
Insulation Class
F
Invoice Description
60HP,1780RPM,3PH,60HZ,364TC,A3658M,TEFC
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
IEEE 841 Severe Duty, 60 HP, 1800 RPM, Frame Size 364Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (CECP84314T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
364TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
60 Hp
Power Factor
84 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
41.5 in
Product Net Height
29 in
Product Net Weight
417.758 kg
Product Net Width
34.5 in
Product Type
NEMA_IEEE841
Quote Only
No
Rated Current (In)
70 A
Rated Efficiency
95 %
Rated Speed
1780 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.38 in
Short Description
60 HP, 1800 RPM, Frame Size 364Tc, C-Face, 3 PH, TEFC, 460 V
Standards
None
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
460 V
IEEE 841 Severe Duty construction provides rugged reliability under continuous duty. This translates to longer service life and significantly reduced downtime in harsh environments such as conveying, pumping, and heavy-duty fans. The 364TC frame with C-face mounting and foot-mounted options ensures straightforward installation and compatibility with existing baseplates and couplings, minimizing retrofit costs and downtime. TEFC enclosure paired with IP56 protection guards against dust and water intrusion, supporting stable performance in outdoor or dirty plant areas and reducing unscheduled maintenance. Premium efficiency with a rated 95% and a Power Factor of 84% lowers energy consumption and future electrical upgrades, delivering tangible cost savings over the motor’s lifetime. Regreasable lubrication supports extended bearing life, while a 1.15 service factor provides torque reserve for brief overloads common in startup and peak-load conditions. The 60 HP rating at 1780 rpm suits midrange drives in steel, chemical, and packaging lines, while 460 V three-phase power aligns with common plant electrical infrastructure. Practical features like a 2.38 in shaft diameter, 3-phase operation, and 1780-1800 rpm nominal speeds enable reliable coupling with gearboxes and belt drives, supporting scalable automation architectures across multiple shifts and facilities.
Get a Quick Quote for a ABB 7BCECP84314T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECP84314T-4?
Enquire Now
FAQs
This motor is designed for easy on-site installation with a C-face drive end and foot-mounted base. Ensure a rigid base, alignment with the coupling, and correct wiring for a 460 V three-phase, 60 Hz supply. Verify IP56/TEFC enclosure compatibility for the installation environment and use the standard Baldor-Reliance mounting patterns to simplify retrofits.
The motor delivers Premium Efficiency with approximately 95% efficiency and a service factor of 1.15, meaning it can handle short overloads without overheating. This combination reduces energy losses during operation and provides torque headroom during startup, improving runtime reliability in high-demand cycles such as conveyors and pumps.
Yes. It is an IEEE 841 Severe Duty motor with TEFC enclosure and IP56 protection, suitable for continuous-duty operation in dusty, damp, or outdoor facilities. Its 60 HP rating, 1780 rpm nominal speed, and robust bearings support long cycles with minimal maintenance when paired with regular preventive checks.
The motor is certified for NEMA Premium Efficiency, UL/UR recognized, and listed under appropriate industry standards. It also aligns with IEEE 841 Severe Duty guidelines, delivering reliability in rugged industrial processes while meeting energy and safety requirements across North American facilities.
Maintenance emphasizes regreasing bearings and periodic inspection of the TEFC enclosure for seals and leaks. The unit is stocked across multiple warehouses, enabling quick replenishment. Warranty terms require returning the product within the supplier’s warranty policy if issues arise, and normal preventive maintenance reduces total cost of ownership by extending service life.
