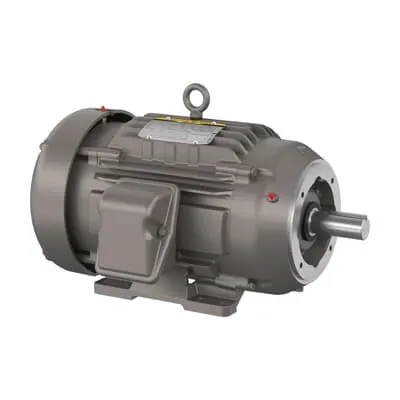

ABB 7BCECR9204T Severe Duty Motor - NEMA Premium
Part Number: 7BCECR9204T
Quick Summary
The ABB 7BCECR9204T Severe Duty Motor delivers 20 HP performance for demanding crusher and heavy-duty processing applications. It reduces maintenance downtime and torque fluctuations common in harsh environments thanks to TEFC enclosure and IP55 protection. Key certifications include NEMA Premium efficiency, CSA/UR approvals, and CCSA US compliance, ensuring uptime across global facilities. Designed for 230/460 V, 3-phase systems with a 256TC frame, it integrates with standard plant equipment, delivering reliable performance and lower total cost of ownership.
Product Information
Extended Description
7BCECR9204T ABB: Severe Duty Motor 20 Hp 230 V (CECR9204T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,1765RPM,3PH,60HZ,256T,TEFC,F1
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CECR9204T
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
09LYM408: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
CECR9204T
Gross Volume
14448.906 inÂł
Gross Weight
147.418 kg
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IP Class
IP55
Insulation Class
F
Invoice Description
20HP,1765RPM,3PH,60HZ,256T,TEFC,F1
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Crusher Severe Duty, 20 HP, 1800 RPM, Frame Size 256Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CECR9204T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
83 %
Product Name
Crusher Severe Duty
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
147.418 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
48 A | 24 A
Rated Efficiency
93 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
1.63 in
Short Description
20 HP, 1800 RPM, Frame Size 256Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
The severe-duty design of the 7BCECR9204T stands up to shock loading and high torque in crushers and mineral-processing conveyors. The robust 256TC frame supports heavy mechanical stresses, while 6311 ball bearings and reinforced winding insulation extend service life and reduce unscheduled downtime. This motor is purpose-built for continuous operation in tough environments where reliability directly ties to plant availability and production targets. TEFC enclosure combined with IP55 protection shields internal components from dust, moisture, and washdown exposure found in mining, aggregate, and cement applications. This protection translates to fewer lubrication and corrosion-related failures, lower maintenance costs, and simpler installation without additional enclosures or protective housings. Efficiency and electrical design address total cost of ownership. The motor meets NEMA Premium efficiency standards and delivers a rated efficiency of 93% with a power factor of about 83%, reducing energy consumption and heat generation. With 230/460 V operation and 60 Hz, it aligns with common plant power systems, supporting energy rebates in some regions. Frame size 256TC with a C-face drive end flange and foot mounting simplifies retrofits and new installations in conveyors, crushers, and processing lines. The horizontal mounting orientation and 1.63 in shaft diameter facilitate alignment with standard couplings and belts, enabling fast commissioning and predictable vibro-acoustic performance. Direct-on-line starting and a 1.25 service factor give engineers headroom during start-up and load transients, improving drive selection and reducing stress on upstream controls. The motor is rated for continuous service at 4 poles (1765 rpm nominal, 1800 rpm synchronous), 3-phase operation, and aligns with diverse regulatory requirements thanks to U.S. origin certifications (NEMA, CSA EEV, UR).
Get a Quick Quote for a ABB 7BCECR9204T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECR9204T?
Enquire Now
FAQs
The motor features a 256TC frame with a C-face drive end flange and is available as foot-mounted, horizontal mounting. This combination supports straightforward alignment with standard couplings, belts, and conveyors, enabling rapid commissioning in crushers and processing lines while preserving alignment reliability and vibration control.
Yes. The ABB 7BCECR9204T is rated for 230 V and 460 V operation at 60 Hz in a three-phase configuration. It uses a four-pole design with a rated speed of 1765 r/min and a synchronous speed of 1800 r/min, with Direct-on-Line starting supported for simplified drive integration.
This motor carries NEMA Premium efficiency ratings along with CSA EEV and UR certifications, plus CCSA US compliance. These approvals help meet energy, safety, and import requirements for North American facilities and international sites, reducing certification lead times and rework during upgrades.
Protected by an IP55 TEFC enclosure and using robust 6311 ball bearings, the motor delivers extended service intervals and reduced corrosion-related failures. The insulation class F and a 1.25 service factor provide resilience against start-up transients and sustained heavy loads typical in crushers and mining conveyors.
Ideal for crushers, heavy-duty conveyors, and mineral processing lines requiring reliable, energy-efficient operation. With a 20 HP rating, 1765 rpm nominal speed, 256TC frame, and 230/460 V three-phase capability, it fits standard plant equipment and delivers consistent performance in harsh environments.
