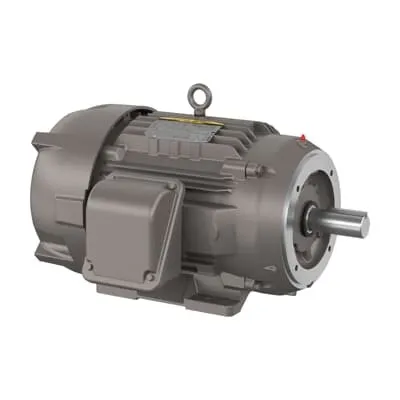

ABB 7BCECR9304T Severe Duty Motor - IP55 TEFC
Part Number: 7BCECR9304T
Quick Summary
Severe Duty Motor 7BCECR9304T delivers reliable torque for crushers and conveyors in harsh industrial settings. Operators struggle with motor wear, downtime, and energy inefficiency in severe-duty lines. This unit meets premium efficiency standards with a NEMA Premium rating, a TEFC enclosure, and IP55 protection, backed by CSA and UR/NEMA certifications. Designed as a 3-phase motor with a 286TC frame and a 230/460 V, 60 Hz supply, it integrates into existing plants with minimal changes while offering improved lifecycle cost and reduced maintenance intervals. The 1770 rpm nominal speed and 4-pole design provide stable performance across load profiles, while stock availability across multiple warehouses ensures fast fulfillment.
Product Information
Extended Description
7BCECR9304T ABB: Severe Duty Motor 30 Hp 230 V (CECR9304T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,1770RPM,3PH,60HZ,286T,TEFC,F1
Ambient Temperature
40 °C
Bearing
6312, Ball
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CECR9304T
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
10LYK455: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
CECR9304T
Gross Volume
16380 inÂł
Gross Weight
515.999 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IP Class
IP55
Insulation Class
F
Invoice Description
30HP,1770RPM,3PH,60HZ,286T,TEFC,F1
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Crusher Severe Duty, 30 HP, 1800 RPM, Frame Size 286Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CECR9304T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
81 %
Product Name
Crusher Severe Duty
Product Net Depth / Length
32.5 in
Product Net Height
21 in
Product Net Weight
515.999 lb
Product Net Width
24 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
74 A | 37 A
Rated Efficiency
93.60 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
1.88 in
Short Description
30 HP, 1800 RPM, Frame Size 286Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: Premium efficiency (NEMA Premium) reduces running costs and heat losses, extending motor life and lowering total cost of ownership in continuous duty environments such as crushers and material-handling conveyors. Application: mining, aggregate processing, and bulk material handling benefit from measurable energy savings and improved thermal performance. Feature → Business Impact → Application: TEFC enclosure with IP55 protection shields windings from dust, moisture and abrasive contaminants, minimizing unscheduled downtime and maintenance needs. Application: harsh quarry floors and dusty plant areas require dependable sealing. Feature → Business Impact → Application: 286TC frame with C-face drive end flange and foot mounting simplifies retrofits and new installs, delivering fast alignment and straightforward integration with standard belting and gear systems. Application: upgrades to existing lines or new line builds in mining and cement plants. Feature → Business Impact → Application: 230/460 V, 60 Hz, 3-phase compatibility provides flexible site power utilization, reducing the need for specialized transformers and enabling cross-site deployments. Application: multi-site operations and spare-parts standardization. Feature → Business Impact → Application: 1.25 service factor and 30 HP rating deliver reliable peak torque under shock loads, improving crusher choke management and conveyor start-stop cycles. Application: heavy-duty stone processing and mineral reduction. Feature → Business Impact → Application: Foot-mounted design with 286TC frame and 1.88 in shaft diameter supports easy coupling to industry-standard couplings and drivetrains, limiting custom fabrication. Application: retrofit projects and new installations across processing facilities.
Get a Quick Quote for a ABB 7BCECR9304T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECR9304T?
Enquire Now
FAQs
The motor is designed for foot mounting with a C-face drive end flange and horizontal mounting orientation, using the 286TC frame. This configuration supports straightforward alignment with conveyors and crushers and enables easy retrofits into existing equipment. The mounting options simplify installation, reduce alignment time, and help ensure reliable coupling to standard drivetrains in industrial installations.
Yes. The ABB 7BCECR9304T is a 3-phase motor rated for both 230 V and 460 V operation at 60 Hz. It provides a nominal speed of 1770 r/min (4-pole) and a synchronous speed of 1800 r/min, making it compatible with common European and North American power systems and suitable for varied site electrical infrastructure and drive conditions.
The motor features NEMA Premium efficiency and a TEFC enclosure with IP55 protection. It is certified by CSA and UR, aligning with multiple safety and performance standards. These certifications support compliance in regulated environments and contribute to long-term energy efficiency and reliability in demanding industrial applications.
Lead time is listed as 0 day, indicating immediate availability. The model is stocked at multiple warehouses (EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU), enabling rapid fulfillment and minimizing downtime when ordering or expanding plant capacity across regions.
The 7BCECR9304T combines IP55 protection, a robust TEFC enclosure, and 6312 ball bearings with a 1.25 service factor. These features resist dust, moisture, and mechanical shock common in crushing operations, reducing bearing wear and seal failures. The rugged construction, coupled with easy installation and stock availability, translates to higher uptime and lower maintenance costs in harsh processing environments.
