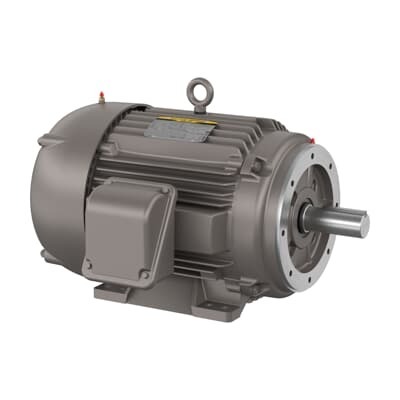

ABB 7BCECR9504T Severe Duty Motor - NEMA Premium
Part Number: 7BCECR9504T
Quick Summary
Severe Duty Motor ABB 7BCECR9504T delivers reliable power for heavy-duty mining and processing equipment. When uptime matters and unexpected downtime can cost you, a rugged motor with predictable performance is essential. This model embraces NEMA Premium efficiency, CSA EEV, and UR listings, reinforcing compliance and long-term reliability in harsh environments. With a 50 HP rating, 230/460 V operation, TEFC enclosure, and a 326TC frame, it aligns with common OEM footprints and spare-parts ecosystems. For operations seeking energy efficiency, consistent torque, and straightforward maintenance, this motor represents a robust, industry-proven solution that supports low total cost of ownership and improved plant throughput.
Product Information
Extended Description
7BCECR9504T ABB: Severe Duty Motor 50 Hp 230 V (CECR9504T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,1775RPM,3PH,60HZ,326T,TEFC,F1
Ambient Temperature
40 °C
Bearing
6313, Ball
Bearing NDE
6312
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CECR9504T
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
12LYH992: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
CECR9504T
Gross Volume
18748.226 inÂł
Gross Weight
317.515 kg
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IP Class
IP55
Insulation Class
F
Invoice Description
50HP,1775RPM,3PH,60HZ,326T,TEFC,F1
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Crusher Severe Duty, 50 HP, 1800 RPM, Frame Size 326Tc, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CECR9504T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
50 Hp
Power Factor
81 %
Product Name
Crusher Severe Duty
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
317.515 kg
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
122 A | 61 A
Rated Efficiency
94.50 %
Rated Speed
1775 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
2.13 in
Short Description
50 HP, 1800 RPM, Frame Size 326Tc, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: 50 HP output at 230/460 V three-phase power. Business Impact: Delivers strong, consistent torque for crushers and heavy-duty conveyors, helping maintain throughput even under peak loads. Application: Suitable for mining, aggregate handling, and material processing lines. Feature: TEFC enclosure with IP55 protection and 326TC frame. Business Impact: Provides environmental protection against dust, moisture, and contaminants, reducing unplanned downtime and simplifying installation in rugged facilities. Application: Outdoor or dusty plant floors and worst-case industrial settings.Feature: NEMA Premium efficiency (94.50%) and 1.25 service factor. Business Impact: Lowers energy costs, improves overall plant efficiency, and supports compliance with energy-performance targets. Application: Any continuous or near-continuous operation where energy and cooling costs matter.Feature: Direct-on-line starting, 3‑phase, 4-pole (1775 r/min nominal, 1800 r/min synchronous). Business Impact: Simplifies drive integration, reduces startup time, and minimizes control hardware, saving installation time and maintenance. Application: Conveyor systems and processing lines with high-start torque needs.Feature: Foot-mounted, horizontally oriented F1 mounting and standard drive-end flange. Business Impact: Facilitates quick replacement and straightforward mechanical integration with existing bases and couplings. Application: OEM replacement in retrofit projects and new equipment with established mounting footprints.Feature: Robust bearing and shaft design (2.13 in shaft diameter, 6313 ball bearings) and 60-minute duty capability. Business Impact: Enhances durability under heavy loads and intermittent peak operation, reducing maintenance cycles. Application: Crushers and other high-load particle processing lines.
Get a Quick Quote for a ABB 7BCECR9504T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECR9504T?
Enquire Now
FAQs
This motor uses foot mounting with horizontal F1 orientation and a standard drive-end flange on a 326TC frame. It operates at 230/460 V as a three-phase, 60 Hz machine with TEFC enclosure and IP55 protection, ideal for rugged plant floors and retrofit projects.
The motor delivers 50 HP with a rated speed of 1775 r/min (synchronous 1800 r/min), a rated current of 122 A (In) / 61 A, and a rated efficiency of 94.50%. It supports a 1.25 service factor and Direct On Line starting for straightforward control.
Yes. The Crusher Severe Duty designation, 60-minute duty time reference, and 3-phase design make it well-suited for crushers and continuous-duty processing lines, delivering reliable torque and robust performance under high-load conditions.
The motor carries NEMA Premium efficiency, CSA EEV, and UR recognition, with Canadian and U.S. compliance support. These certifications help meet industry and regulatory requirements while ensuring safe, reliable operation.
Warranty returns require the product to be returned if claimed under warranty terms. The motor is stocked across multiple warehouses (including EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU) to support quick fulfillment and regional availability.
